SKU:

METSECT5HA025

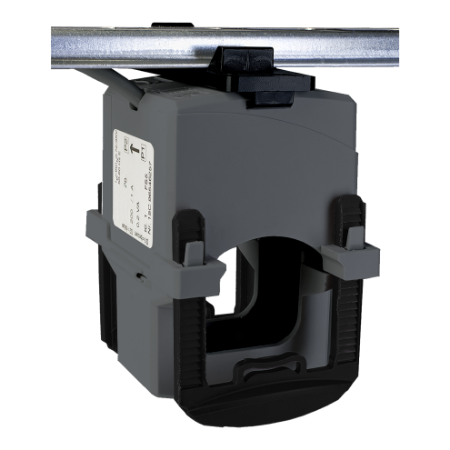

PowerLogic Split Core Current Transformer - Type HA, for cable - 0250A / 5A

Old price: $205.04 INC GST

Price: $174.28 INC GST

Qty:

Available for Shipping : 15-Dec-2025

Product Selector

PowerLogic Split Core Current Transformer - Type HA, for cable - 0250A / 5A

Split core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

simplified installaiton for retrofit application

compliance with IEC standard for current transformer

Split core current transformers for cable profile

Click system and fixing clasps allow single handed mounting

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 15-Dec-2025

Declaration of conformity

Instruction sheet

CAD

Catalog

Product Page Link

Product Data Sheet

This current transformer, standard for cable, has a line rated current of 250 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 18.4 mm. Burden and accuracy class as follows: class 0.5 maximum power: 1 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 0.5 at 1 VA
[In] rated current	250 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Diameter	18.4 mm inner:
Current transformer type	split core, standard for cable
Height	80.1 mm outside:
Width	49 mm outside:
Current transformer ratio	250/5
Permissible current	15000 A during 1 s
Mounting mode	clip-on
Electrical insulation class	class E
Depth	59 mm
Connections - terminals	cable 2 cable(s) 0.5-1.5 mm² 0.5 m
[Ith] conventional free air thermal current	300 A
Cable outer diameter	18.4 mm
[Ui] rated insulation voltage	3 kV
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	VDE 0414, DIN EN 61869-2, DIN EN 61869-1, DIN EN 60044-1
Ambient air temperature for operation	-5-50 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	6.5 cm
Package 1 Length	7.0 cm
Package 1 Weight	332.0 g
Unit Type of Package 2	2
Number of Units in Package 2	16
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.53 kg
