SKU:

METSECT5GJ300

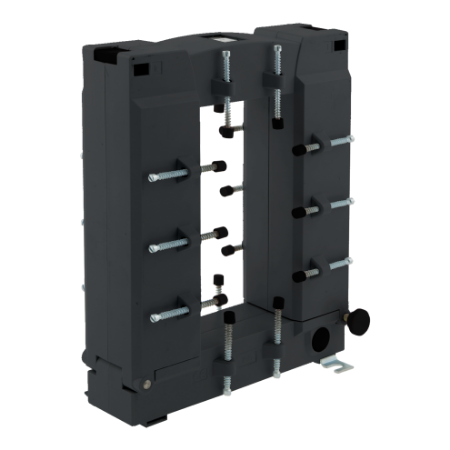

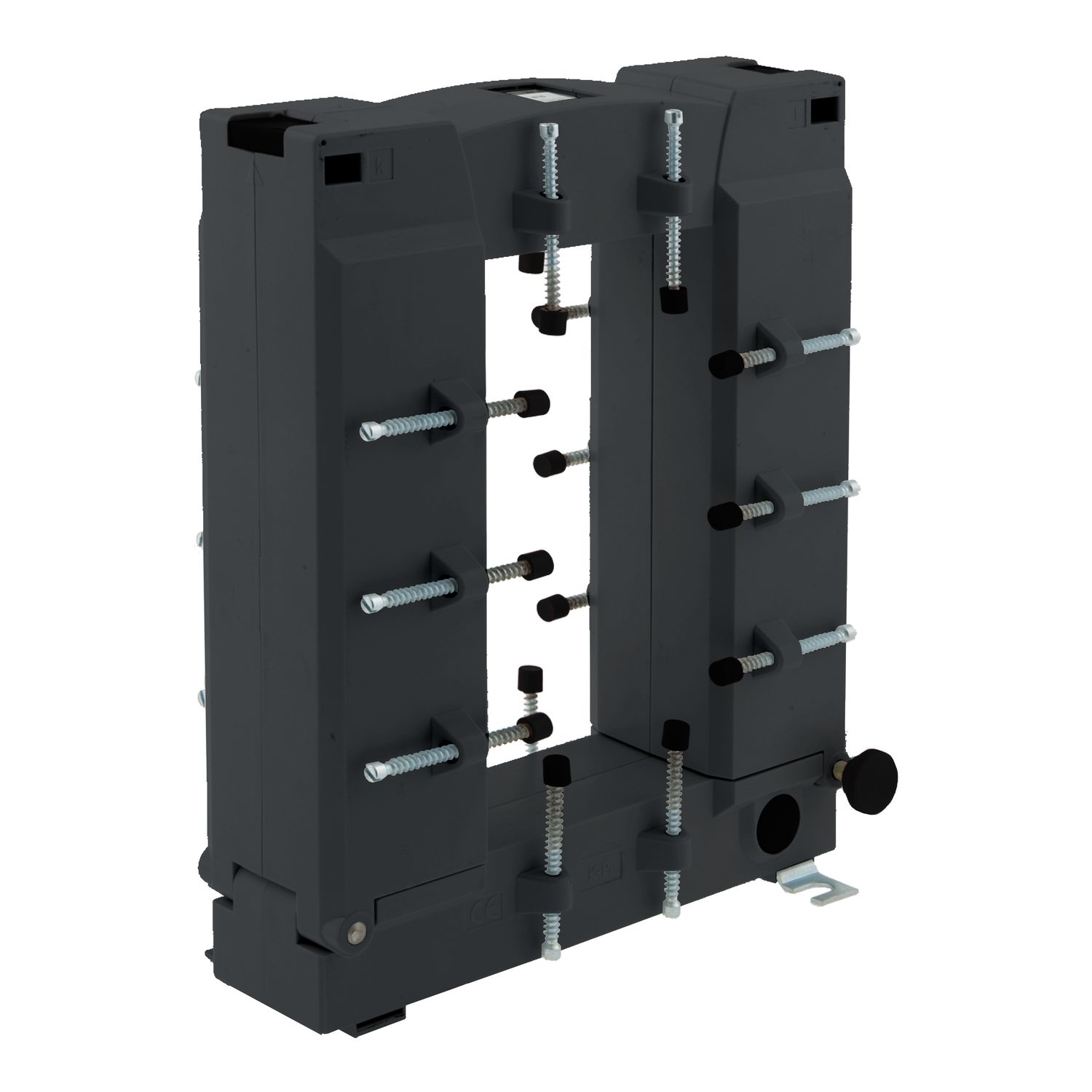

PowerLogic Split Core Current Transformer - Type GJ, for bar - 3000A / 5A

Old price: $471.35 INC GST

Price: $400.65 INC GST

Qty:

Available for Shipping : 14-Jan-2026

Product Selector

PowerLogic Split Core Current Transformer - Type GJ, for bar - 3000A / 5A

Split core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

simplified installaiton for retrofit application

compliance with IEC standard for current transformer

Split core current transformers for busbar profile

Click system and fixing clasps allow single handed mounting

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 14-Jan-2026

Declaration of conformity

Instruction sheet

CAD

Catalog

Product Page Link

Product Data Sheet

This current transformer, standard for busbar, has a line rated current of 3000 A and a secondary current rating of 5 A. This current transformer do have a 85 mm x 165 mm opening. Compatible with a single output for bar: 80 mm x 160 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 0.5 at 15 VA
[In] rated current	3000 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Current transformer type	split core, standard for busbar
Height	165 mm inner: , 243 mm outside:
Width	85 mm inner: , 195 mm outside:
Current transformer ratio	5/1/3000 12:00:00 AM
Permissible current	180000 A during 1 s
Mounting mode	by screws
Electrical insulation class	class E
Opening of bars	80 x 160
Depth	79 mm
[Ith] conventional free air thermal current	3000 A
[Ui] rated insulation voltage	3 kV
Mounting support	fastened onto a surface with screws, DIN rail
Maximum safety factor	10
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	DIN EN 61869-2, DIN EN 61869-1, DIN 42600-2, VDE 0414
Ambient air temperature for operation	-5-40 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.5 cm
Package 1 Width	20.0 cm
Package 1 Length	25.0 cm
Package 1 Weight	3.85 kg
Unit Type of Package 2	2
Number of Units in Package 2	3
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	12.0 kg
