SKU:

METSECT5GA025

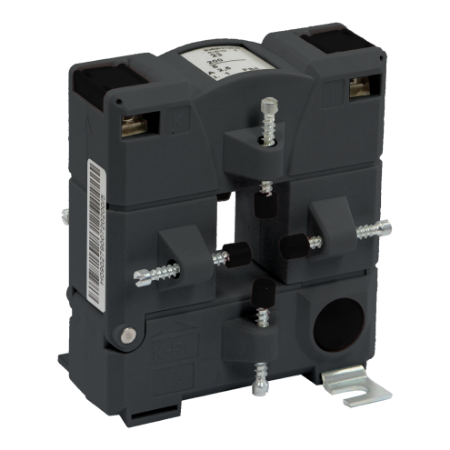

PowerLogic Split Core Current Transformer - Type GA, for bar - 0250A / 5A

Old price: $250.25 INC GST

Price: $212.71 INC GST

Qty:

Available for Shipping : 04-Jan-2026

Product Selector

PowerLogic Split Core Current Transformer - Type GA, for bar - 0250A / 5A

Split core IEC current transformers for varied application

compact size suitable for different sizes of conductors

tropicalized rating for harsh environmental condition

Well adpated CT as the accuracy class is better than rated accuracy

simplified installaiton for retrofit application

compliance with IEC standard for current transformer

Split core current transformers for busbar profile

Click system and fixing clasps allow single handed mounting

adaptable for different conductor profile and primary current intensity

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 04-Jan-2026

Declaration of conformity

Instruction sheet

CAD

Catalog

Product Page Link

Product Data Sheet

This current transformer, standard for busbar, has a line rated current of 250 A and a secondary current rating of 5 A. This current transformer do have a 23 mm x 33 mm opening. Compatible with a single output for bar: 20 mm x 30 mm. Burden and accuracy class as follows: class 1 maximum power: 1.5 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 1.5 VA
[In] rated current	250 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Current transformer type	split core, standard for busbar
Height	33 mm inner: , 106.15 mm outside:
Width	23 mm inner: , 93 mm outside:
Current transformer ratio	250/5
Permissible current	15000 A during 1 s
Mounting mode	by screws
Electrical insulation class	class E
Opening of bars	20 x 30
Depth	58 mm
Net weight	0.63 kg
[Ith] conventional free air thermal current	250 A
[Ui] rated insulation voltage	3 kV
Mounting support	fastened onto a surface with screws, DIN rail
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	DIN EN 61869-2, DIN EN 61869-1, DIN 42600-2, VDE 0414
Ambient air temperature for operation	-5-40 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.3 cm
Package 1 Width	6.2 cm
Package 1 Length	9.8 cm
Package 1 Weight	634.0 g
Unit Type of Package 2	2
Number of Units in Package 2	24
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	15.51 kg
