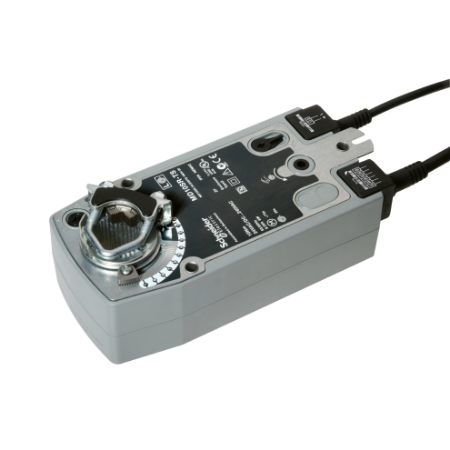

Picture of MD10-SR Damper Actuator, 2-Position, Spring Return, 110-240Vac, 24-125Vdc, 1m Cable, 10Nm, S2 Switch, IP54
SKU:

MD10SR-TS

MD10-SR Damper Actuator, 2-Position, Spring Return, 110-240Vac, 24-125Vdc, 1m Cable, 10Nm, S2 Switch, IP54

$1,215.66 INC GST
Available for Shipping : 19-Jan-2026

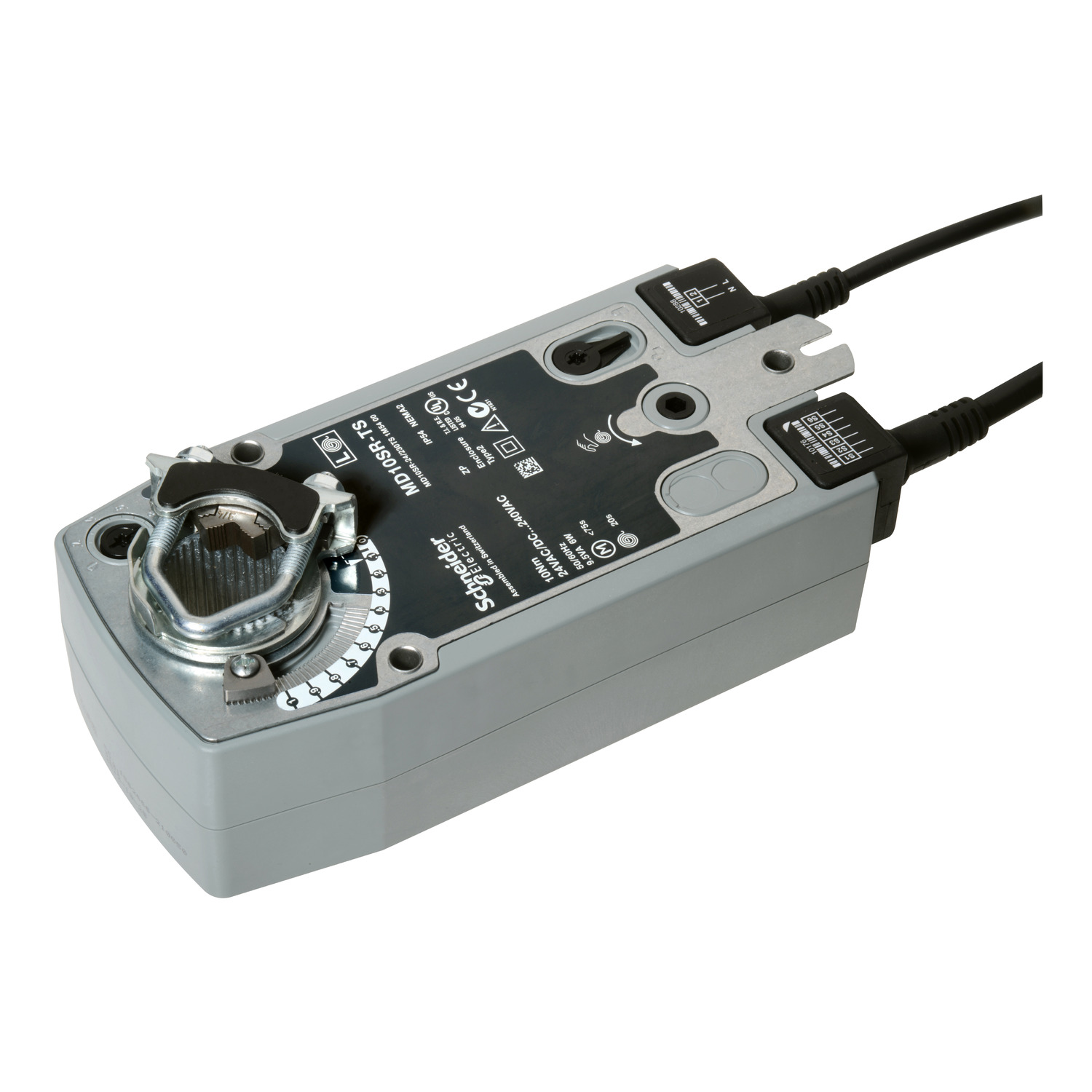

MD10-SR Damper Actuator, 2-Position, Spring Return, 110-240Vac, 24-125Vdc, 1m Cable, 10Nm, S2 Switch, IP54
  • Compact Mechanical Spring Return Damper Actuator
  • Universal Mounting for Spring Return Directional Function
  • 10 Nm, ~ 2 m² damper effective area
  • Universal Power Supply: 24..230 Vac, 24Vdc
  • has SPDT integrated switch
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
The MD1 SR is a compact spring return damper actuator for the operation of ventilation dampers up to 2m² in building service installations. Power Supply: 24…24 Vac / 24…125 Vdc. On/Off Control Signal. Torque: 1 Nm, IP 54 Enclosure rating. III Extra low Voltage. Adjustable angle of rotation: …Max 95°.

Products specifications

Attribute name Attribute value
Main
Switch function 2 SPDT
Hold-in power consumption in W 2.5-2.5 W
IP degree of protection IP54
Relative humidity 0-95 % RH, non-condensing
Ambient air temperature for storage -40-80 °C
[Us] rated supply voltage 24...125 V DC, 24...240 V AC
Electrical insulation class class II
Product destination dampers
Control type automatic reset
Product or component type actuator
Power consumption in VA 9.5 VA AC
Transformer rated power in VA 9.5 VA
Targeted region Australia., Asia Pacific., Europe
Power consumption in W 6 W
Actuator rotation 95 °
Spring return timing 75 s
Actuator rotary
Ambient air temperature for operation -30-50 °C
Tightening torque 1.1 N.m, 10 lb.in
Power loss return spring return
Actuator model MD10 SR-24/230TS
Control signal 2-position (on/off)
Lead length 1 m
Actuator type electric
Actuator product series MD10SR
Position indicator visual indicator
Additional features dual lead cable
Rotational range adjustment 95° maximum (limited by an adjustable end stop)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 28.8 cm
Package 1 Width 13 cm
Package 1 Length 11.2 cm
Package 1 Weight 2.24 kg

Related products

Picture of Auxiliary Switch, Add-On 2 x Single Pole Double Throw.

Auxiliary Switch, Add-On 2 x Single Pole Double Throw.

9141061000
$302.97 INC GST
View Detail
Picture of Auxiliary Switch, Add-On 1 x Single Pole Double Throw.

Auxiliary Switch, Add-On 1 x Single Pole Double Throw.

9141060000
$235.80 INC GST
View Detail

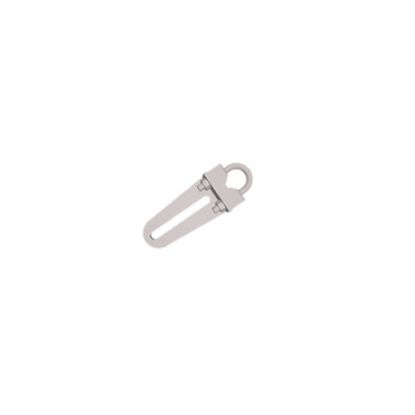

Picture of KH8 universal damper crank arm

KH8 universal damper crank arm

9141021000
$200.38 INC GST
View Detail

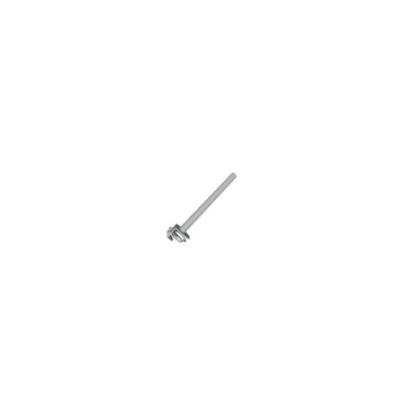

Picture of Shaft extension (AV8-25): 250mm, for damper Spindles 8mm to 25mm diameter or 10mm to 25mm Square
