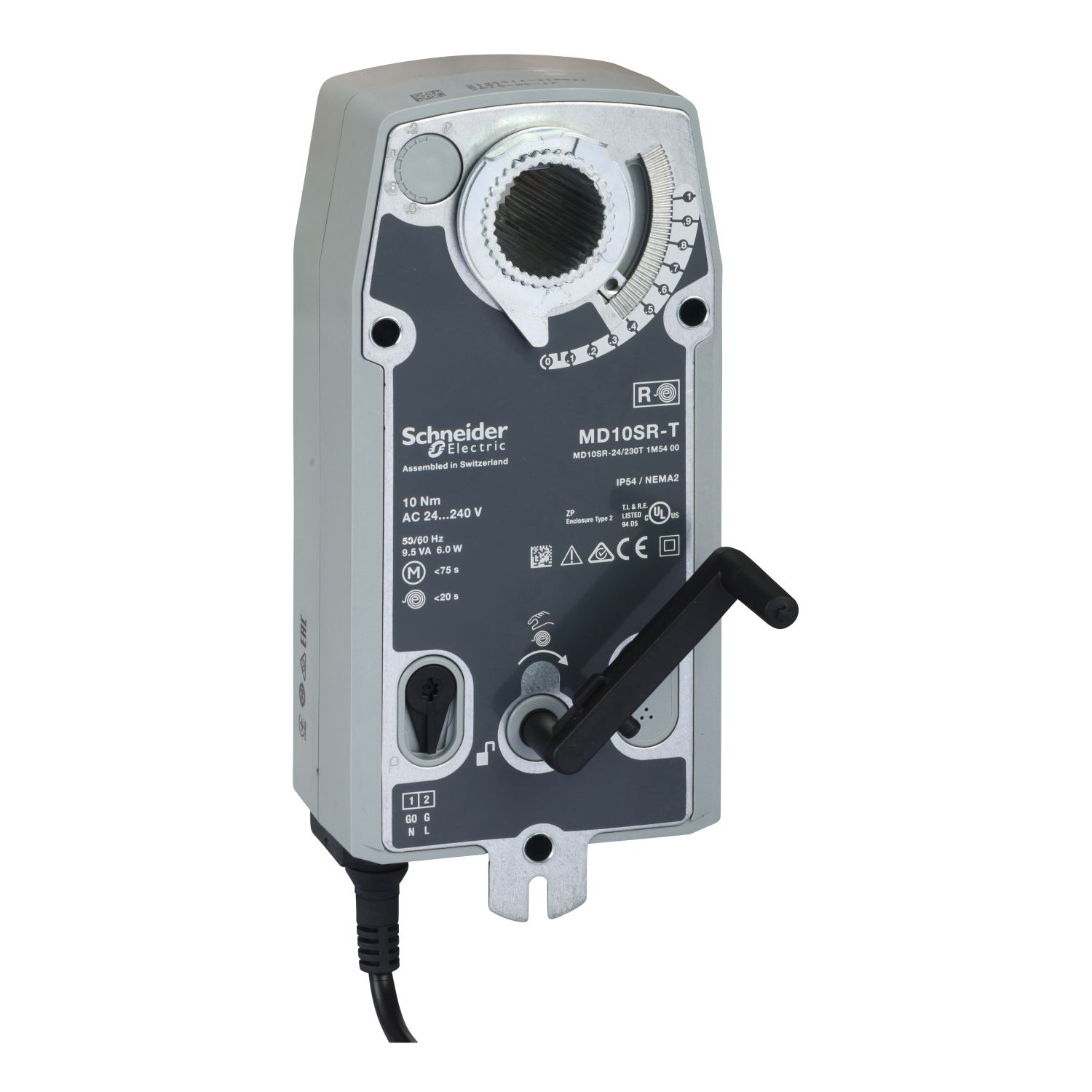

Picture of MD10-SR Damper Actuator, 2-Position or 3-Wire Floating, Spring Return, 24Vac/dc, 1m Cable, 10Nm, IP54
SKU:

MD10SR-24T

MD10-SR Damper Actuator, 2-Position or 3-Wire Floating, Spring Return, 24Vac/dc, 1m Cable, 10Nm, IP54

$638.82 INC GST
Available for Shipping : 16-Dec-2025
MD10-SR Damper Actuator, 2-Position or 3-Wire Floating, Spring Return, 24Vac/dc, 1m Cable, 10Nm, IP54
  • Compact Mechanical Spring Return Damper Actuator
  • Universal Mounting for Spring Return Directional Function
  • 10 Nm, ~ 2 m² damper effective area
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
The MD1 SR is a compact spring return damper actuator for the operation of ventilation dampers up to 2m² in building service installations. Power Supply: 24 Vac/Vdc. On/Off Control Signal. Torque: 1 Nm, IP 54 Enclosure rating. III Extra low Voltage. Adjustable angle of rotation: …Max 95°.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in W 2.5-2.5 W
IP degree of protection IP54
Relative humidity 0-95 % RH, non-condensing
Ambient air temperature for storage -40-80 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class III
Product destination dampers
Control type automatic reset
Product or component type actuator
Power consumption in VA 8.5 VA AC
Transformer rated power in VA 8.5 VA
Targeted region Australia., Asia Pacific., Europe
Power consumption in W 6 W
Actuator rotation 95 °
Spring return timing 75 s
Actuator rotary
Ambient air temperature for operation -30-50 °C
Tightening torque 1.1 N.m, 10 lb.in
Power loss return spring return
Actuator model MD10 SR-24T
Control signal 2-position (on/off)
Lead length 1 m
Actuator type electric
Actuator product series MD10SR
Position indicator visual indicator
Rotational range adjustment 95° maximum (limited by an adjustable end stop)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29 cm
Package 1 Width 13.2 cm
Package 1 Length 11 cm
Package 1 Weight 2.06 kg
