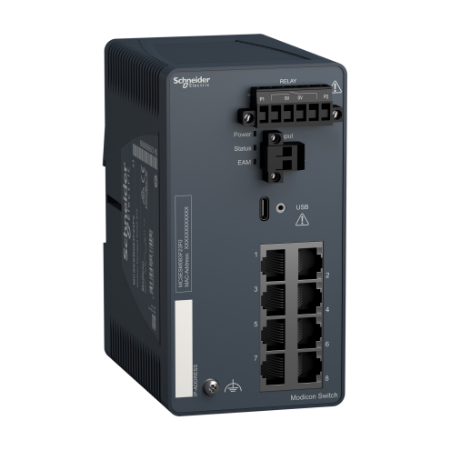

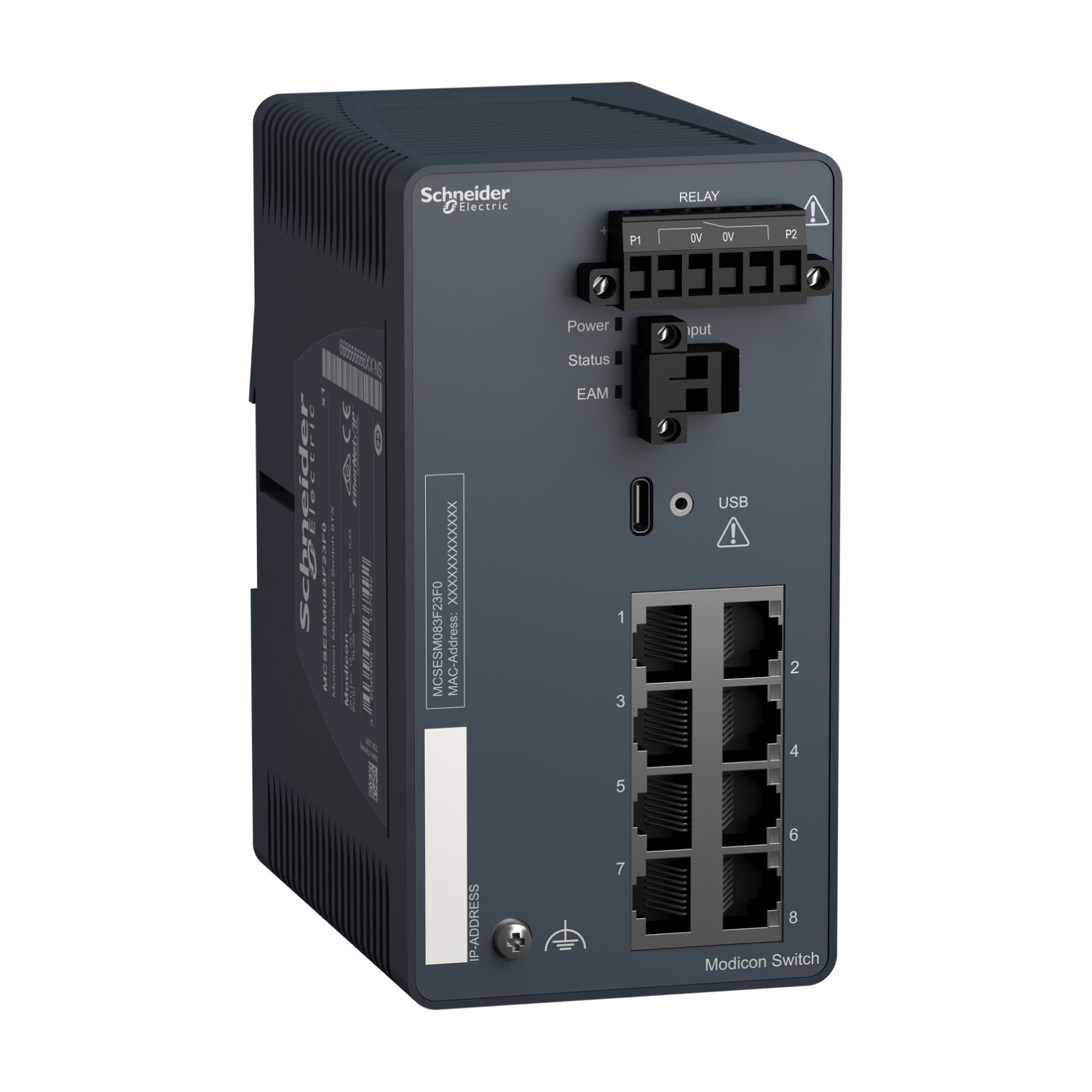

Picture of network switch, Modicon Networking, managed, 8 ports for copper

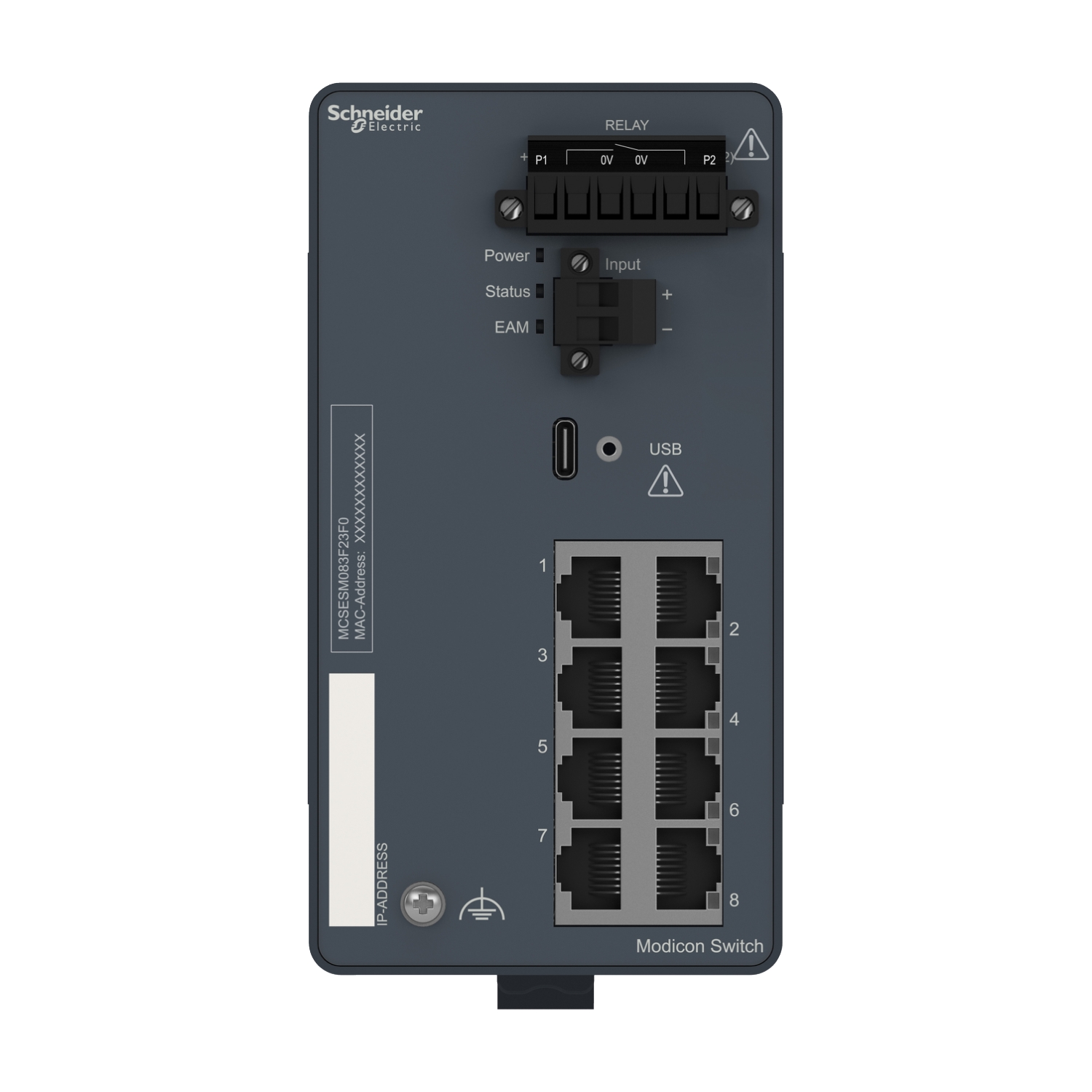

Picture of network switch, Modicon Networking, managed, 8 ports for copper

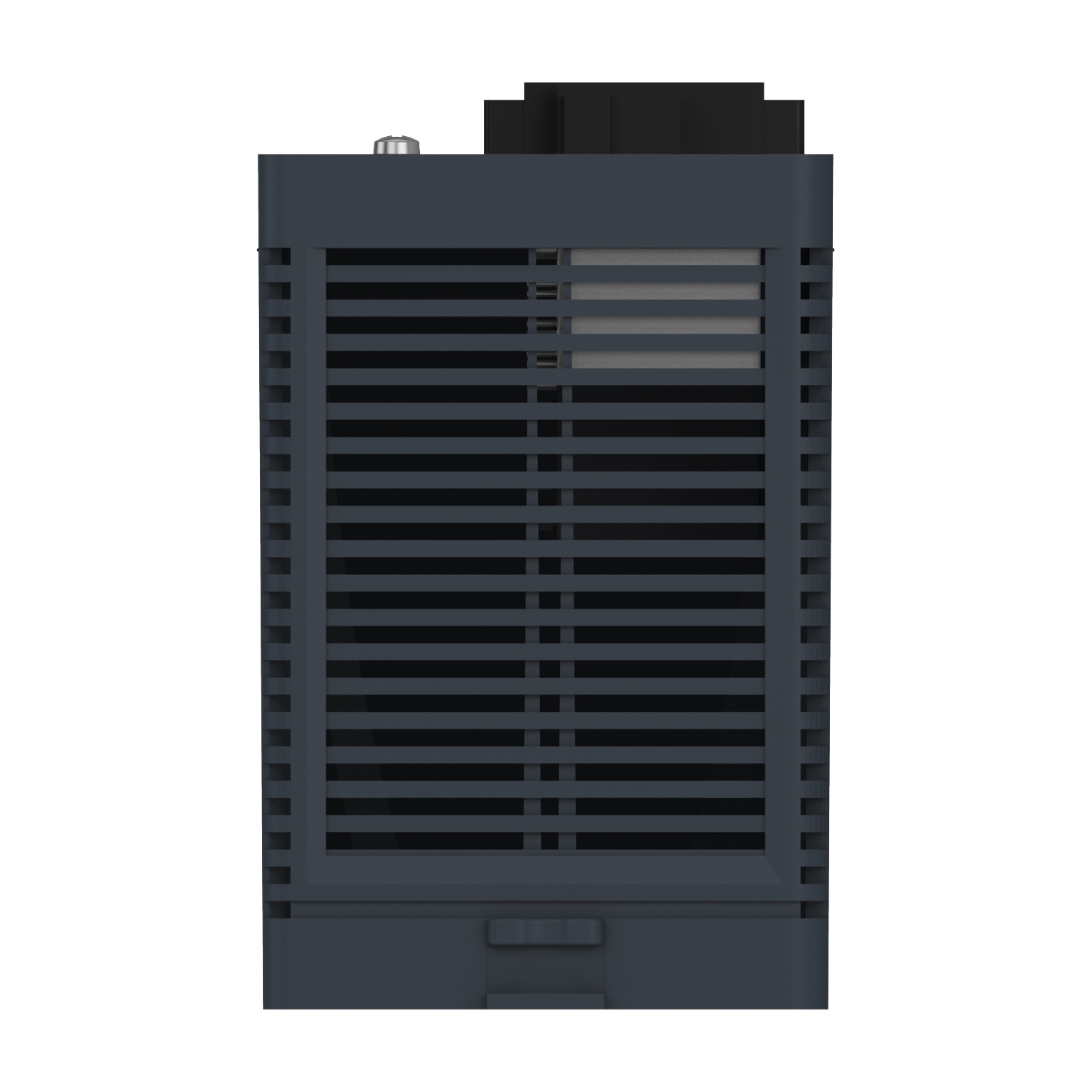

Picture of network switch, Modicon Networking, managed, 8 ports for copper

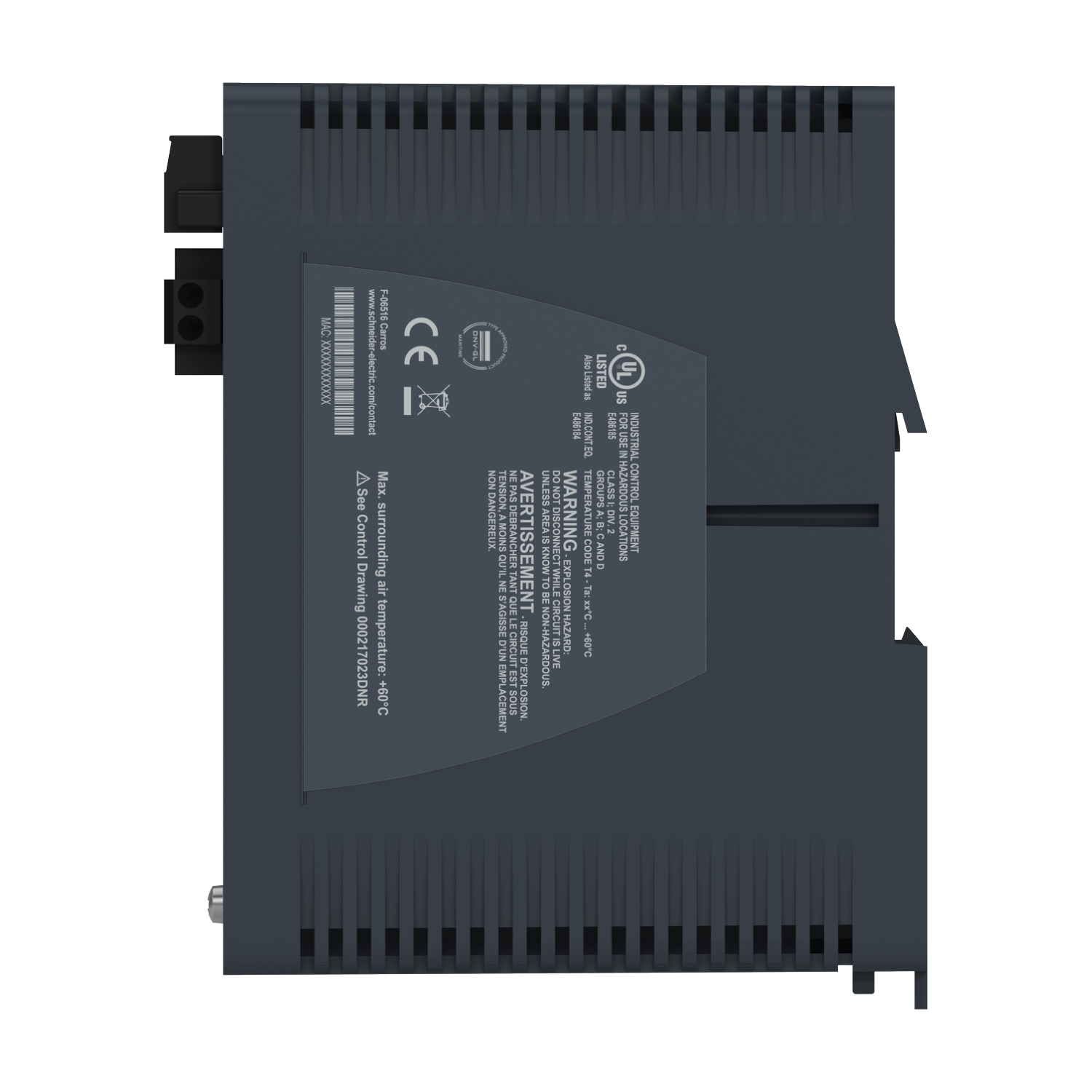

Picture of network switch, Modicon Networking, managed, 8 ports for copper

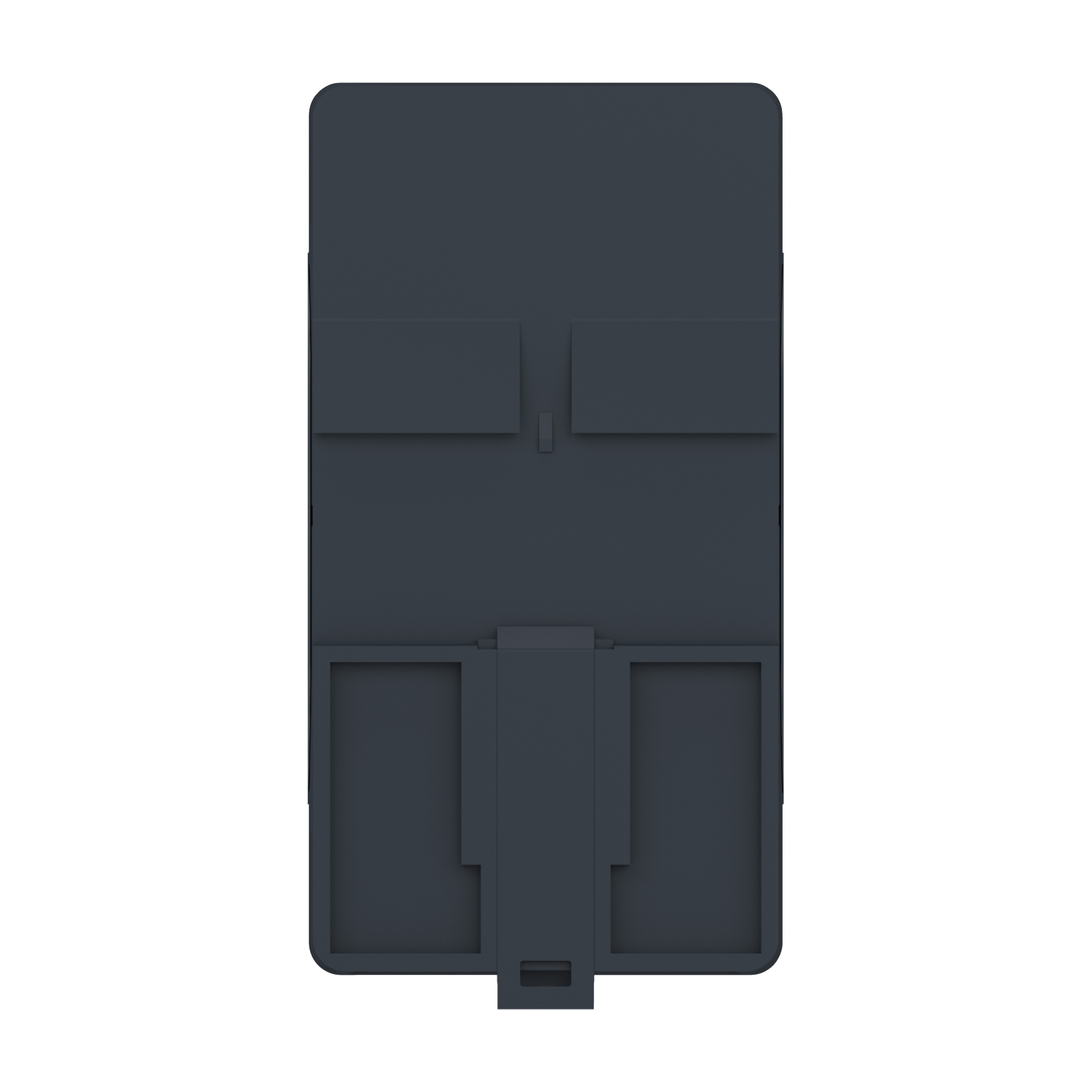

Picture of network switch, Modicon Networking, managed, 8 ports for copper

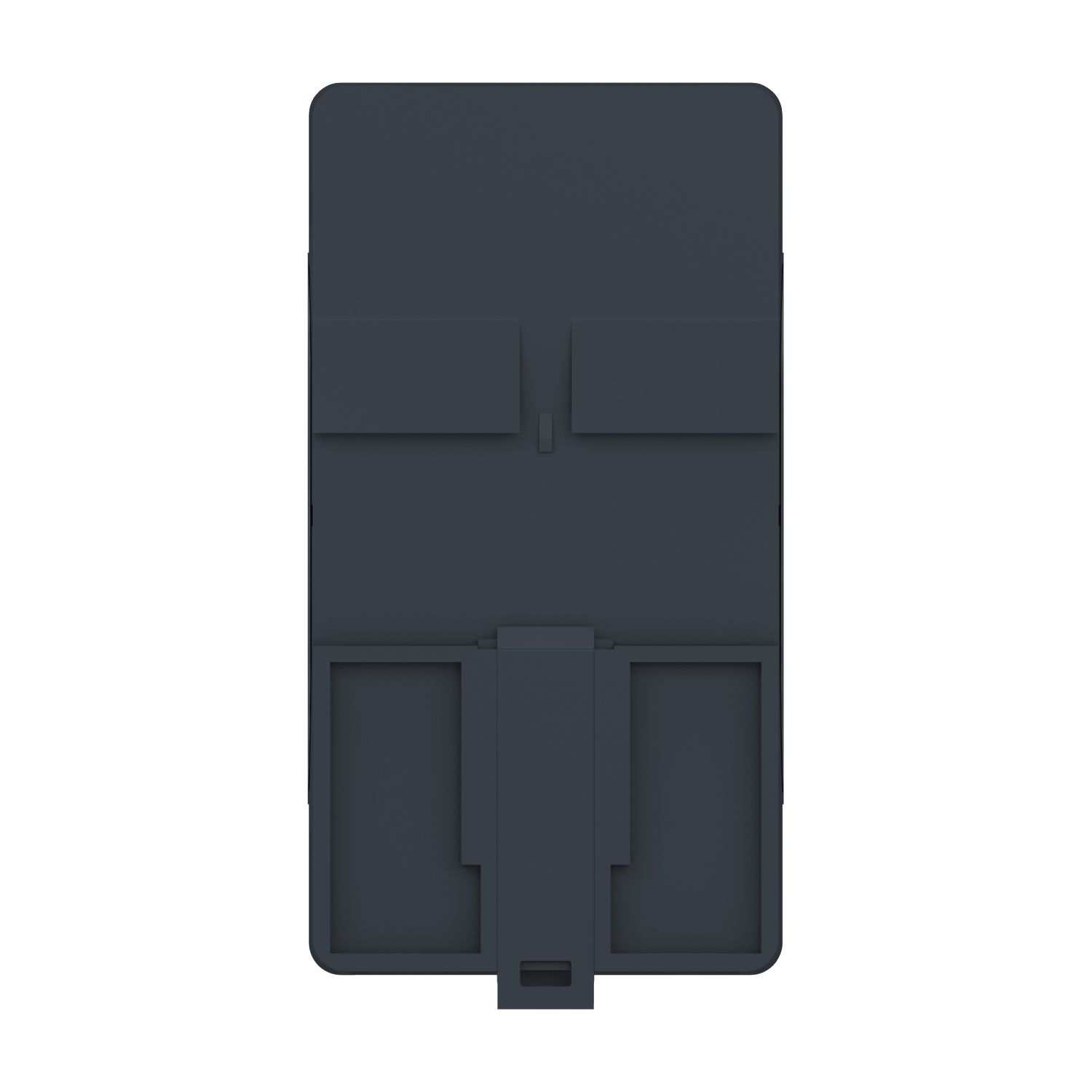

Picture of network switch, Modicon Networking, managed, 8 ports for copper

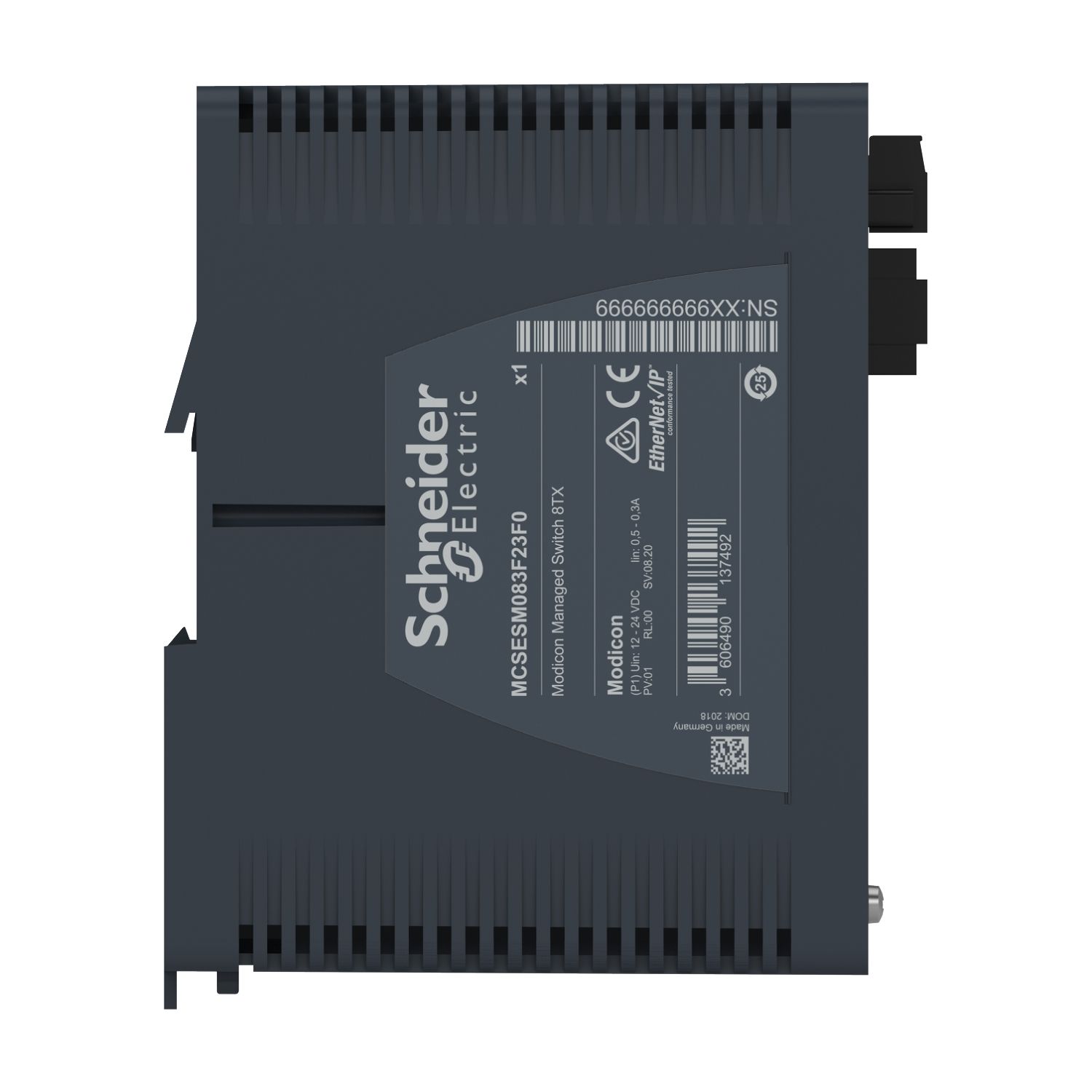

Picture of network switch, Modicon Networking, managed, 8 ports for copper

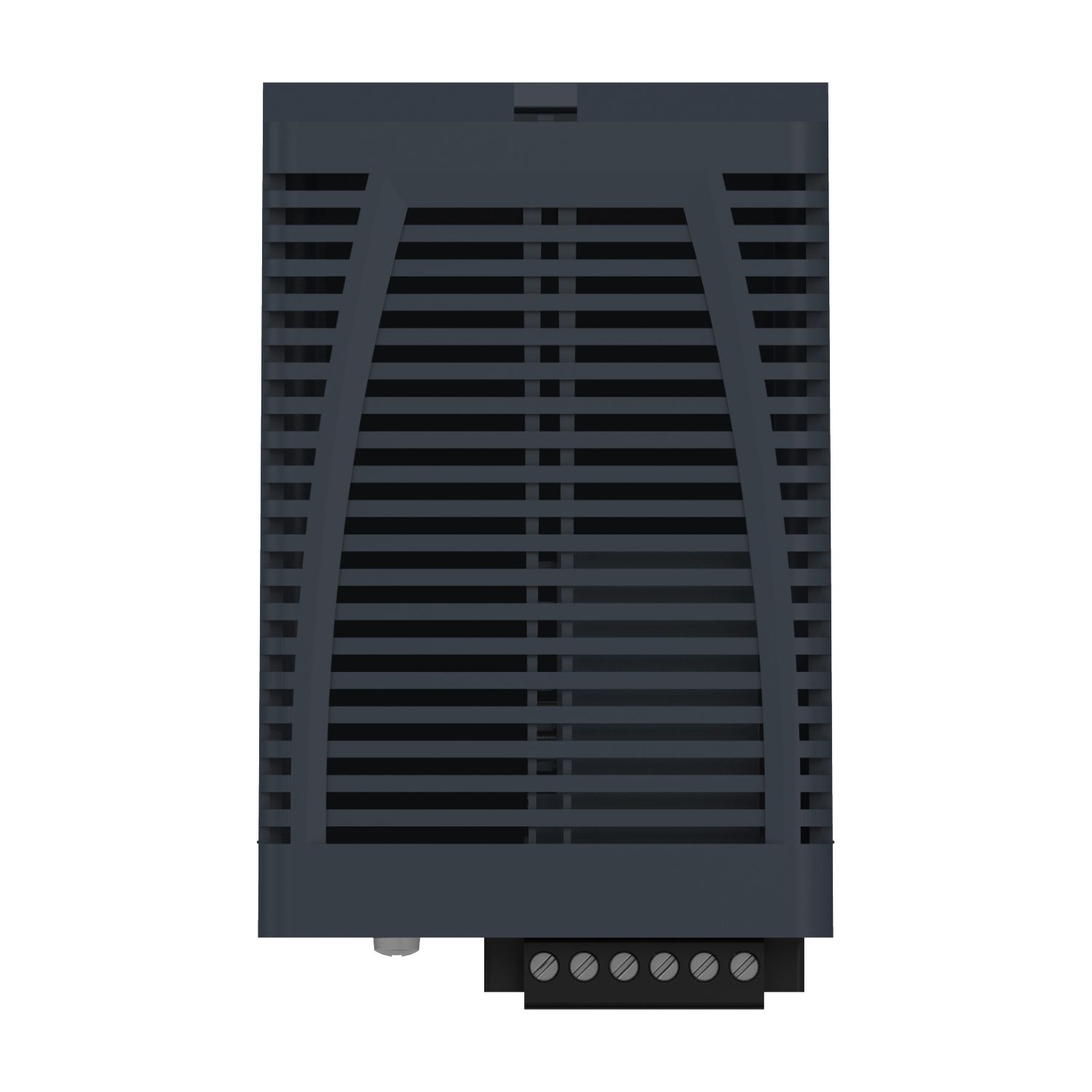

Picture of network switch, Modicon Networking, managed, 8 ports for copper
SKU:

MCSESM083F23F0

network switch, Modicon Networking, managed, 8 ports for copper

$2,813.36 INC GST
Available for Shipping : 04-Jan-2026
Product Selector
network switch, Modicon Networking, managed, 8 ports for copper
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Catalog
Environmental Disclosure
Circularity Profile
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Standard Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 6W and a rated voltage from 12V to 24V DC. It has a removable 6-pin power supply connector. Its dimensions are 73mm (width) x 138mm (height) x 111mm (depth) and weighs 0.42 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM, EAC, UKCA, DNV certified and conforms to UL 61010, EN/IEC 61131 and EN/IEC 62368-1 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Range of product Modicon
Maximum number of switches in cascade unlimited
Cybersecurity pre-login banner, SNMP logging, audit trail, VLAN-based ACL, DoS prevention, HTTPS, RADIUS assignment, role-based access control, port-based access control, MAC-based port security, IP-based port security, port hardening
Communication port protocol SNTP, Telnet, LLDP, SCP, SFTP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 8 port(s) copper cable
Complementary
Diagnostics run time MAC notification, self test, signal contact
Supply voltage limits 9.6-32 V DC SELV
Ethernet cabling system TF switches
Function available report, system information, alarms (Traps), security status
Maximum number of switches in a ring 50
Marking RCM, cULus, CE
Communication service address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 6 W
Height 142.8 mm
[Us] rated supply voltage 12...24 V
Maximum cable distance between devices 100 m copper cable
Depth 117.6 mm
Width 73 mm
Local signalling 1 dual colour LED (green/yellow) for channel diagnostic, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server
Electrical connection removable connector 6 ways power supply
Net weight 0.42 kg
Redundancy MRP, redundant network coupling, link backup, link aggregation, RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Mounting support 35 mm symmetrical DIN rail
Transmission support medium twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type shielded RJ45 copper cable
Alarm function external memory removed, incorrect configuration, redundancy ring fault, temperature threshold, switch fault, data link status, power supply fault
Environment
IP degree of protection IP30
Relative humidity 1-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications ATEX, DNV, RCM, UL, CE
Ambient air temperature for operation 0-60 °C
Standards EN/IEC 62368-1, EN/IEC 61131-2, UL 61010-2-201
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.400 cm
Package 1 Width 16.800 cm
Package 1 Length 24.000 cm
Package 1 Weight 669.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.160 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 44.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 36.000 kg
