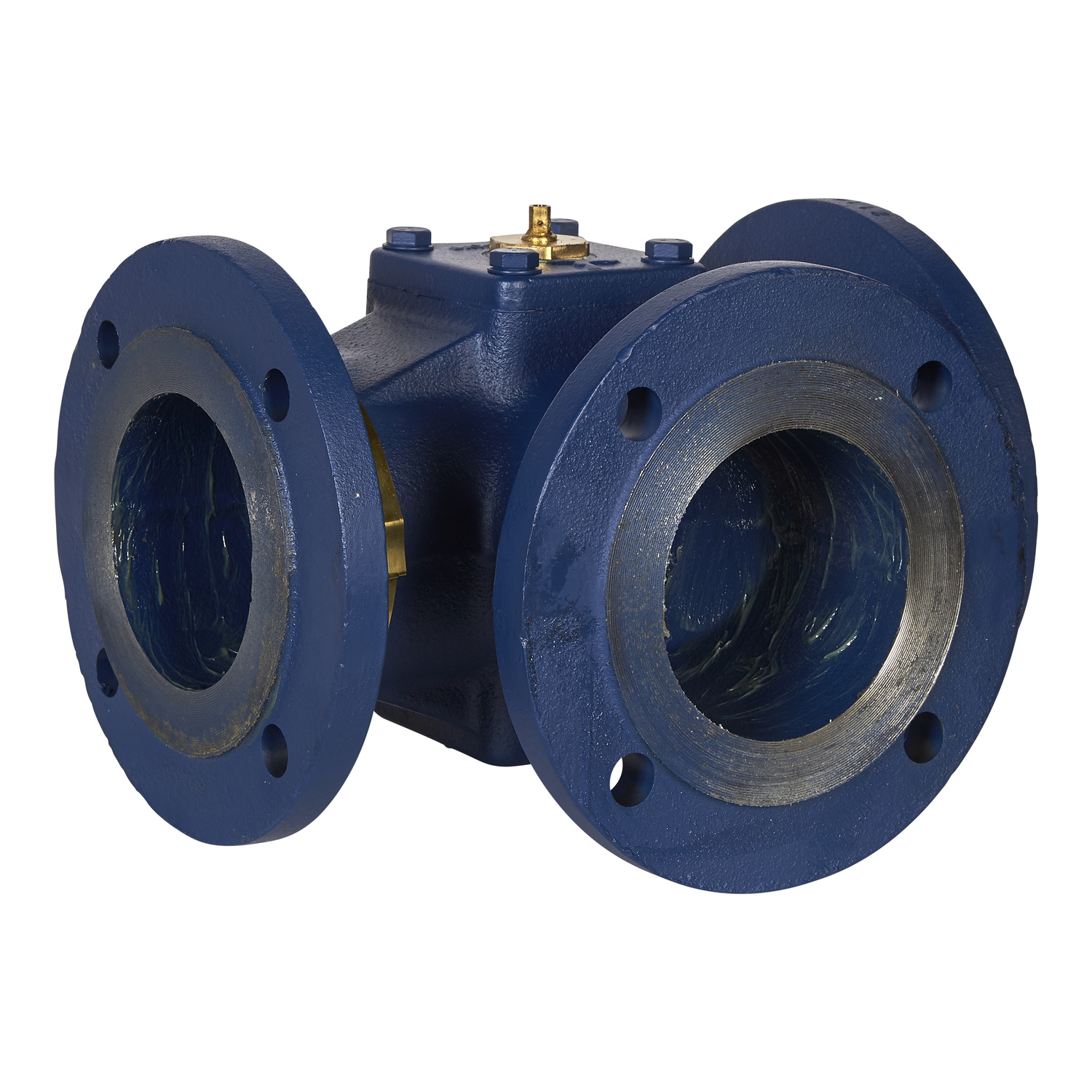

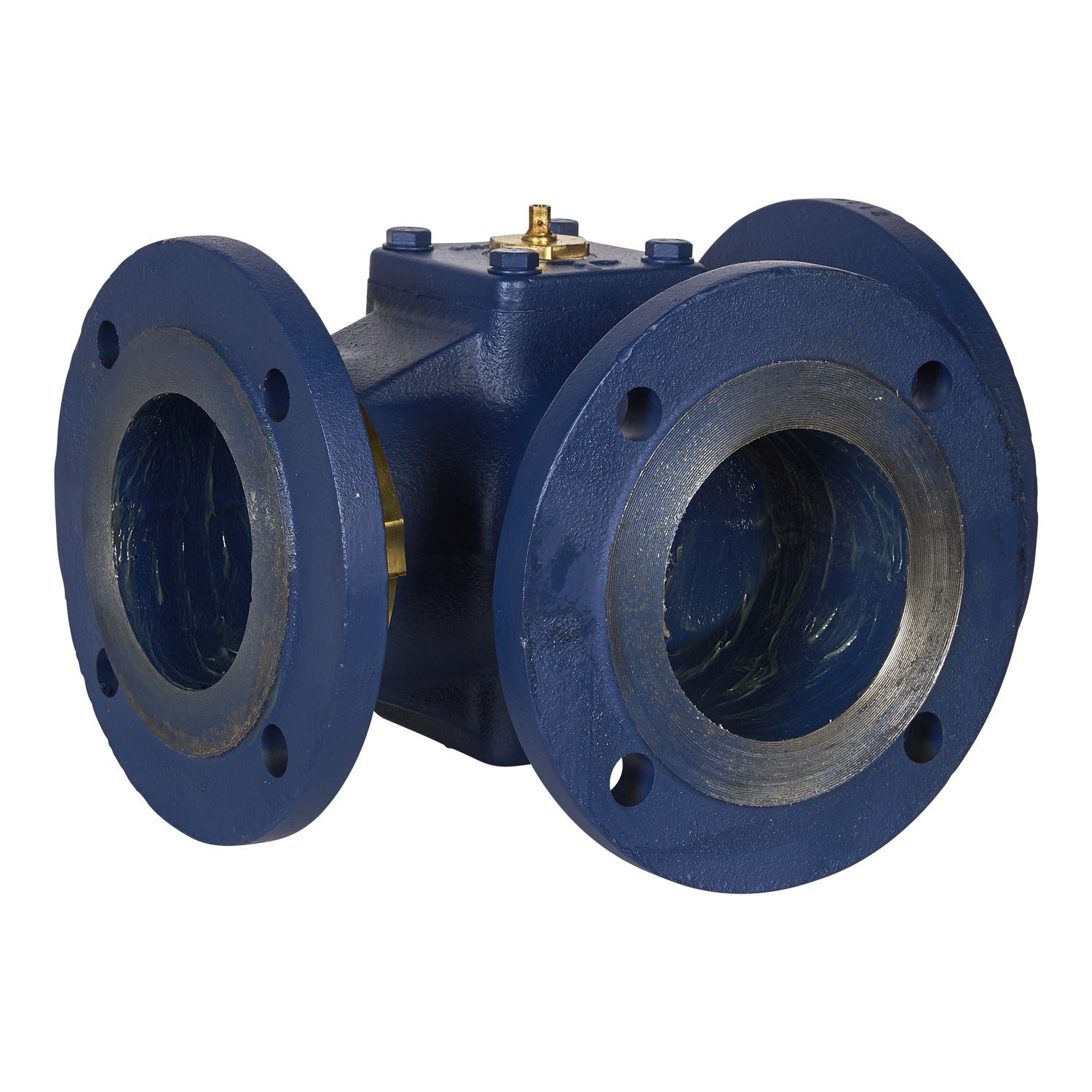

Picture of MBF 3-Way Flanged Shoe Valve, 4" (DN100) Kvs 125.
SKU:

MBF4857

MBF 3-Way Flanged Shoe Valve, 4" (DN100) Kvs 125.

$2,201.10 INC GST
Available for Shipping : 22-Jan-2026
MBF 3-Way Flanged Shoe Valve, 4" (DN100) Kvs 125.
  • 3 Way Shoe Valve for Re-circulating Systems
  • Compact low duty applications
  • Suitable for mixing and diverting applications
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
MBF is a 3-way Flanged Shoe Valve ideal for both diverting and mixing applications. The crown plug provides precise fluid control with a rangeability of 50:1. Valve size: DN100, modified linear, kvs: 125 m³/h. Constructed and flanged to a PN6 pressure class. The valve provide a working temperature range of 2 °C to 120 °C. 90 ° operating angle.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 2-120 °C
Body material close grained cast iron BS1452 Grade 260 or 220
Seat leakage Port A: Class II (0.5 %)
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 25 %
Control valve rangeability 50:1
Valve product series MBF
Flow coefficient 125 kvs, 144.53 cv
Valve configuration 3-Way
Stem movement rotary
Valve type shoe
Valve connection type flanged
Flow characteristic equal percentage
Trim material brass
Pipe size 100 mm
Pressure class PN6
Body size 100 mm (4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 36 cm
Package 1 Width 25.8 cm
Package 1 Length 28.8 cm
Package 1 Weight 24.86 kg
