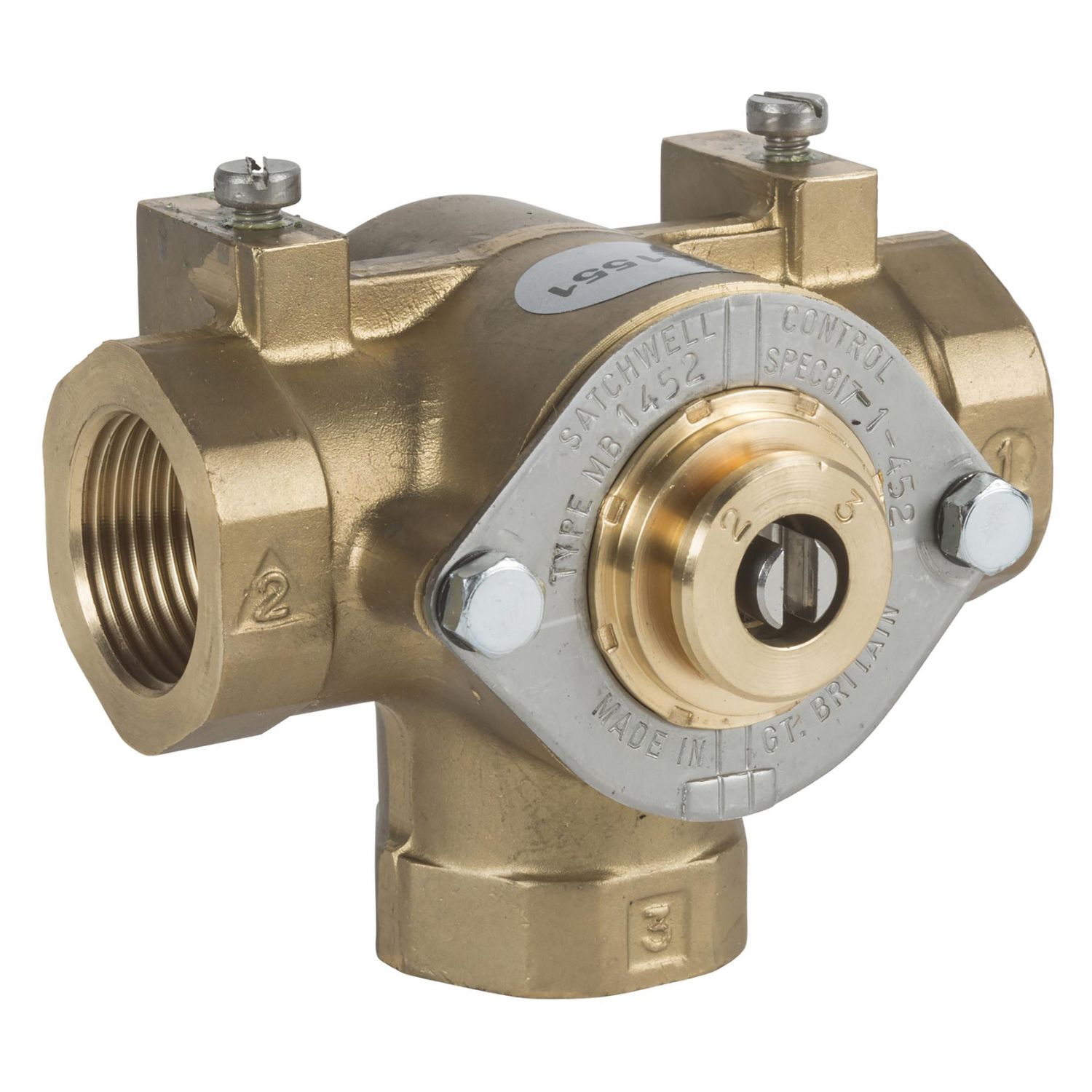

Picture of MB 3-Way Threaded Shoe Valve, 2" (Rp 2) Kvs 33.
SKU:

MB1652

MB 3-Way Threaded Shoe Valve, 2" (Rp 2) Kvs 33.

$896.88 INC GST
Available for Shipping : 21-Jan-2026
MB 3-Way Threaded Shoe Valve, 2" (Rp 2) Kvs 33.
  • 3 Way Shoe Valve for Re-circulating Systems
  • Compact low duty applications
  • Suitable for mixing and diverting applications
  • Brass construction
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
MB 3-way, Threaded Shoe Valve, 2" (Rp 2). The crown plug provides precise fluid control with a rangeability of 50:1. Valve size: DN50, modified linear, kvs: 33 m³/h. Constructed and flanged to a PN10 pressure class. The valve provide a working temperature range of 2 °C to 120 °C. 90 ° operating angle.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 2-120 °C
Body material close grained cast iron BS1452 Grade 260
Seat leakage Port A: Class II (0.5 %)
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 25 %
Control valve rangeability 50:1
Valve product series MB
Flow coefficient 33 kvs, 38.16 cv
Valve configuration 3-Way
Stem movement rotary
Valve type shoe
Valve connection type Rp Internal
Flow characteristic equal percentage
Trim material brass
Pipe size 2 in
Pressure class PN10
Body size 50 mm (2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.2 cm
Package 1 Width 13.6 cm
Package 1 Length 12.2 cm
Package 1 Weight 3.86 kg
