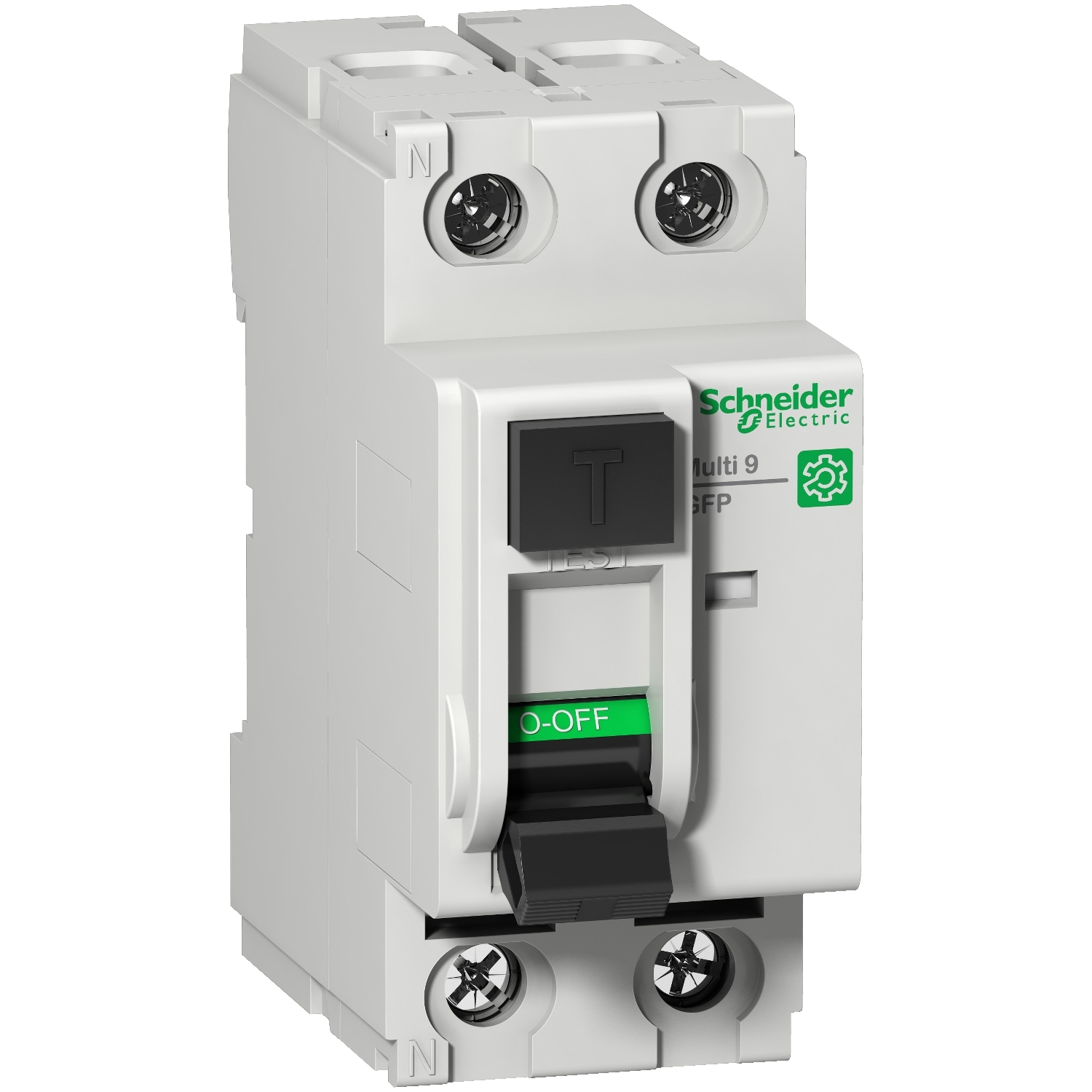

Picture of Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 40A, A-SI type, 30mA, 480Y/277VAC
SKU:

M9R41240

Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 40A, A-SI type, 30mA, 480Y/277VAC

Old price: $137.50 INC GST
$81.25 INC GST
Available for Shipping : 09-Nov-2026
Product Selector
Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 40A, A-SI type, 30mA, 480Y/277VAC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 09-Nov-2026
Instruction sheet
User guide
Product environmental
Brochure
Catalogue
Product Page Link
Product Data Sheet
This is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, A-SI type protection class and a 26mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Earth-leakage protection class type A-SI (Super Immunised)
Neutral position left
Earth-leakage protection time delay instantaneous
Network type AC
Device short name GFP
Range Multi9
Range of product Multi9
Poles description 2P
Utilisation category AC-23A conforming to EN/IEC 61008-1
Product name Multi9 GFP
Product or component type residual current circuit breaker (RCCB)
Earth-leakage sensitivity 30 mA conforming to EN/IEC 61008-1, 26 mA conforming to UL 1053
[In] rated current 40 A at 40 °C conforming to EN/IEC 61008-1
Complementary
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 61008-1
Rated breaking and making capacity Idm 1500 A conforming to EN/IEC 61008-1
Residual current tripping technology voltage independent
Locking options description padlocking in OFF position
Height 81 mm
Rated conditional short-circuit current Inc 10 kA 100 A gG
[Ui] rated insulation voltage 440 V AC 50/60 Hz
Net weight 0.22 kg
9 mm pitches 4
Tightening torque 3.5-3.5 N.m top or bottom
Colour grey
Connection pitch 18 mm between phases
Mechanical durability 20000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length 14 mm for top or bottom connection
[Ue] rated operational voltage 240/415 V AC 50 Hz, 480Y/277 V AC 60 Hz
Depth 60 mm
Width 36 mm
Local signalling ON, OFF, fault trip
Connections - terminals tunnel type terminals (top or bottom) 1-25 mm² (AWG 18...AWG 3) - flexible with ferrule, tunnel type terminals (top or bottom) 1-35 mm² (AWG 18...AWG 2) - rigid, tunnel type terminals (top or bottom) 1-25 mm² (AWG 18...AWG 3) - flexible
Mounting support DIN rail
Contact position indicator yes
Network frequency 50/60 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Standards UL 1053, EN/IEC 61008-1
Tropicalisation 2 conforming to IEC 60068-1
Ambient air temperature for operation -25-60 °C
Pollution degree 3
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
Product certifications UL, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 8.4 cm
Package 1 Length 9 cm
Package 1 Weight 216 g
Unit Type of Package 2 2
Number of Units in Package 2 54
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 11.664 kg
