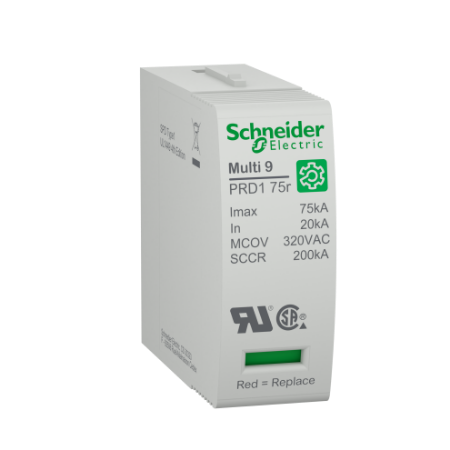

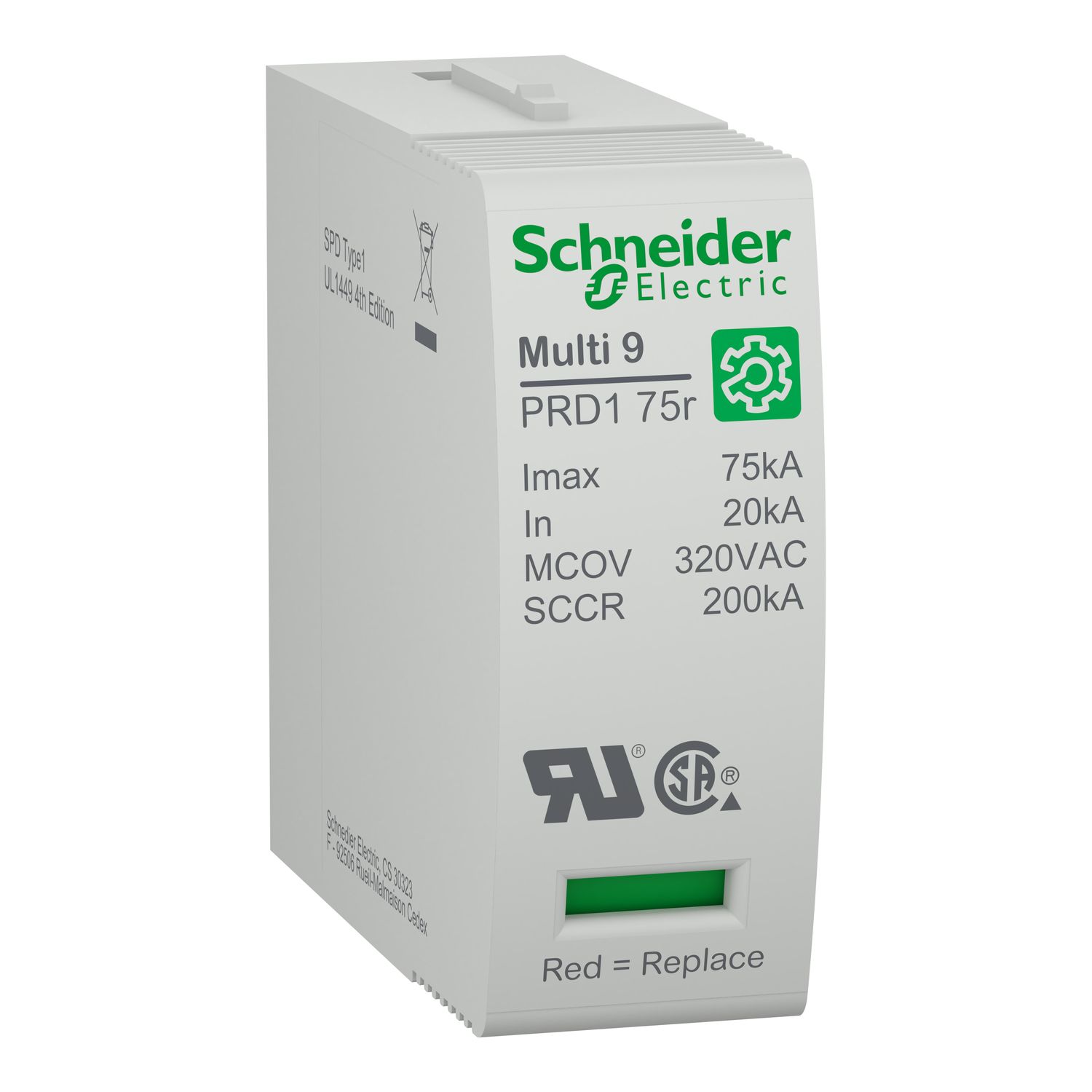

Picture of surge arrester cartridge, Multi9 PRD1 75r, 1P, 277 V
SKU:

M9LC320

surge arrester cartridge, Multi9 PRD1 75r, 1P, 277 V

Old price: $114.40 INC GST
$67.60 INC GST
Available for Shipping : 04-Mar-2026
surge arrester cartridge, Multi9 PRD1 75r, 1P, 277 V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Mar-2026
Instruction sheet
Brochure
Catalog
Product Page Link
Product Data Sheet
This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage is 320VAC. The maximum Up voltage protection level is 1000V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant withUL 1449 standard.

Products specifications

Attribute name Attribute value
Main
Poles description 1P
Range Multi9
Product name Multi9 PRD
Product or component type cartridge
Complementary
Depth 68.5 mm
Market segment OEM
Width 17.5 mm
Colour grey (RAL 7035)
Maximum [Up] voltage protection level <1000 V
Response time < 25 ns
Local signalling mechanical indicator (green and red)
Mounting mode plug-in
Net weight 82 g
Maximum discharge current 75 kA
[Uc] maximum continuous operating voltage 320 V
9 mm pitches 2
Nominal discharge current 20 kA
Mounting support into SPD module
Surge arrester class type type 1
Height 45 mm
Surge arrester technology MOV
Environment
Operating altitude 0...2000 m
IP degree of protection NEMA 1
Quality labels UR, CSA
Relative humidity 0-95 %
Ambient air temperature for storage -40-85 °C
Standards UL 1449
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 8 cm
Package 1 Length 10.5 cm
Package 1 Weight 80 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.215 kg

Related products

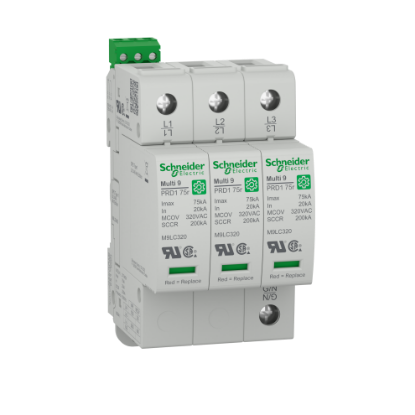

Picture of surge arrester, Multi9 PRD1 75r, 3P, 277/480 V
