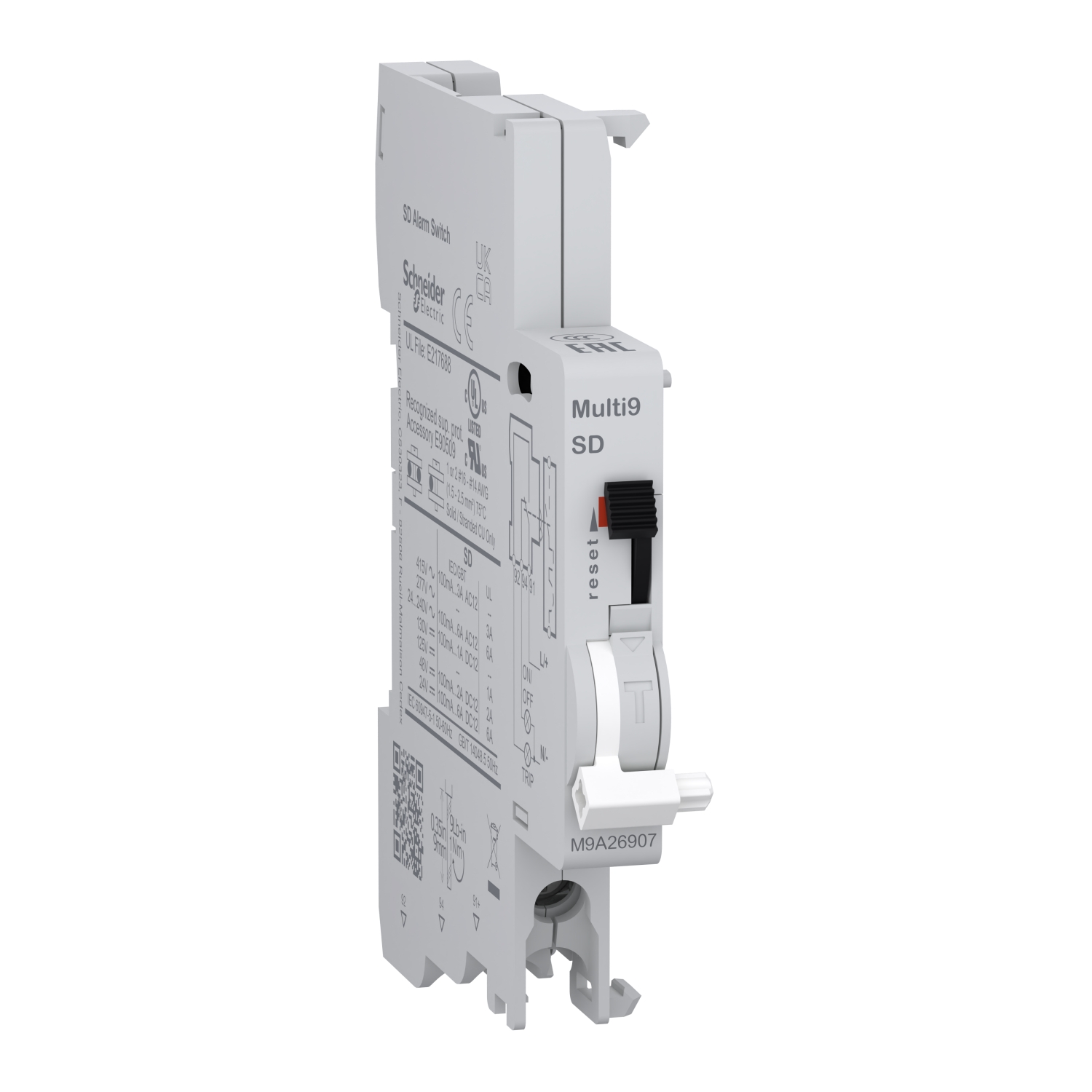

Picture of Auxiliary contact, Multi9 M9A, SD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
SKU:

M9A26907

Auxiliary contact, Multi9 M9A, SD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Old price: $76.23 INC GST
$45.04 INC GST
Available for Shipping : 17-Dec-2025
Auxiliary contact, Multi9 M9A, SD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
  • Can report the signaling to an Opening for Default Devices status
  • Compatible with standard applications with current from 100mA up to 6A
  • Compatible with Multi9 MCB's
  • To be fixed with clips directly on the left of the MCB
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Declaration of conformity
Instruction sheet
Circularity Profile
Brochure
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Multi9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. In AC network, the In rated current is 6A at 24VAC to 240VAC, 3A at 277VAC and 415VAC with operating frequency of 50Hz to 60Hz. In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC, 1A at 110VDC and 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in industry and OEMs. This fault contact is compatible with Multi9 ranges such as C60BP, C60SP, C60 and N40. The SD is either used for device short name or compatibility code. The mechanical indicator is provided within the product for local signalling. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable with a cable cross section of 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables) with a cable cross section of 1.5mm². The Ui rated insulation voltage is up to 500V. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 85mm x (D) 68mm. The product colour is white. The product weight is 30g. The pollution degree is 3. The level of tropicalisation is treatment 2. The wire stripping length is 9mm. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. The IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1, GB/T 14048.5, GB/T 14048.17, UL 1077, UL 489, CSA C22.2 No 0-10, CSA C22.2 No 5-13, CSA C22.2 No 235-04 and CSA C22.2 No 65-03 standards. It has EAC and CCC quality labels and certified with CE, UKCA, UL and CSA certifications.

Products specifications

Attribute name Attribute value
Main
Device short name SD
Range Multi9
[In] rated current 0.1-3 A at 415 V, AC 50/60 Hz,  0.1-3 A at 277 V, AC 50/60 Hz,  0.1-1 A at 130 V, DC,  0.1-1 A at 110 V, DC,  0.1-1.5 A at 60 V, DC,  0.1-2 A at 48 V, DC,  0.1-6 A at 24 V, DC,  0.1-6 A at 24...250 V, AC 50/60 Hz,  0.1-6 A at 24...240 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type fault contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour grey
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code SD
Mounting mode clip-on
Wire stripping length 9 mm
Comb busbar and distribution block compatibility top: YES
Height 85 mm
Depth 68 mm
Market segment OEM, industry
Width 9 mm
Local signalling mechanical indicator
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 30 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - rigid, screw clamp terminal (bottom) 1 cable(s) 2.5-2.5 mm² - rigid
Operating mode daisy chain up to 100 devices
Range compatibility Multi 9 Multi9 N40, Multi 9 Multi9 C60, Multi 9 Multi9 C60SP, Multi 9 Multi9 C60BP
Mounting support DIN rail
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards CSA C22.2 No 65-03, CSA C22.2 No 235-04, CSA C22.2 No 5-13, CSA C22.2 No 0-10, UL 489, UL 1077, GB/T 14048.17, GB/T 14048.5, EN/IEC 60947-5-1
Product certifications CSA, UL, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 7.800 cm
Package 1 Length 9.400 cm
Package 1 Weight 38.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.400 cm
Package 2 Weight 519.000 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.152 kg
