SKU:

M800A-VB

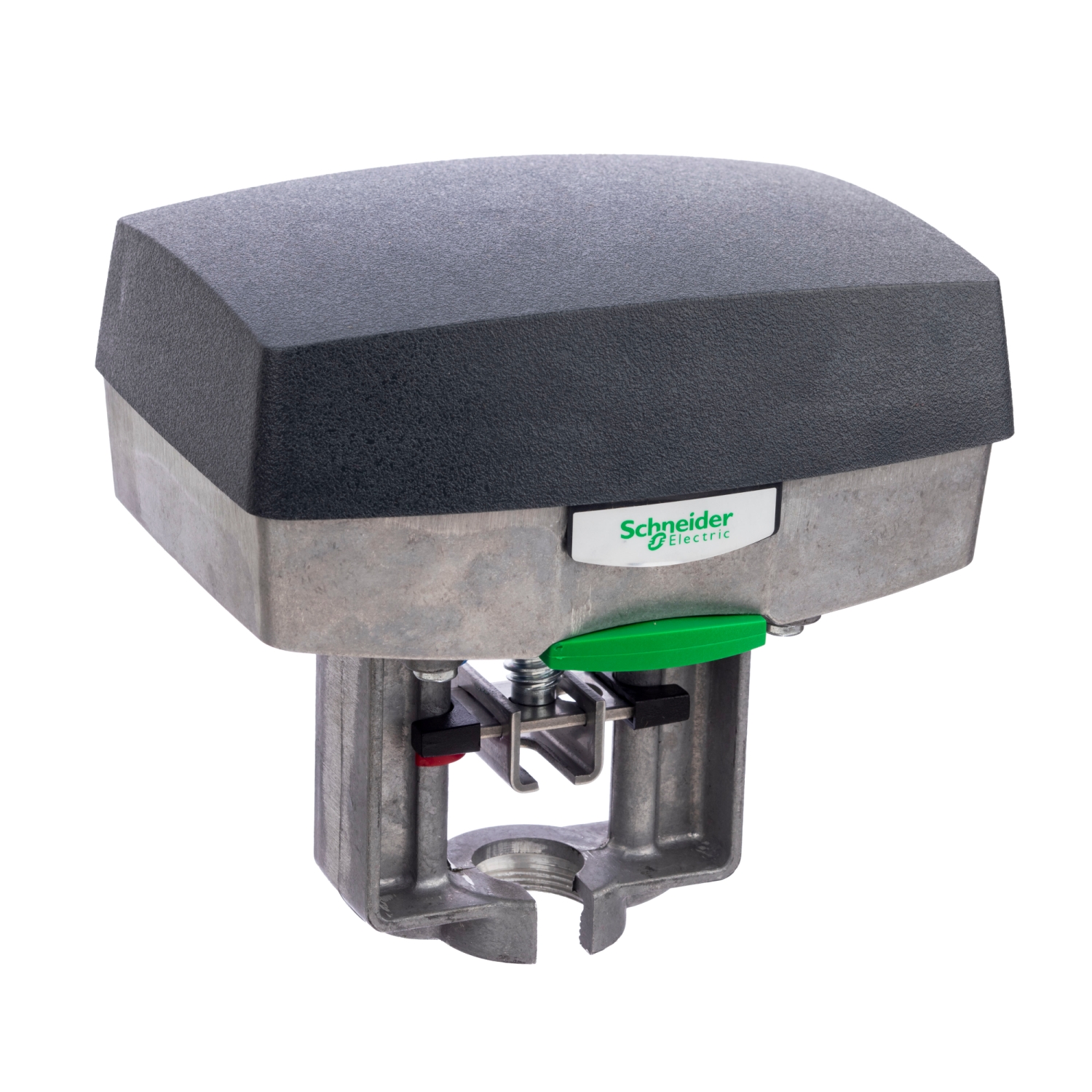

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 800 N, screw mount, NEMA 1 or 2

$907.00 INC GST

Qty:

Available for Shipping : 03-Feb-2026

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 800 N, screw mount, NEMA 1 or 2

Manufacturer: Schneider Electric

Delivery date: 03-Feb-2026

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 800 N, screw mount, NEMA 1 or 2

Attribute name	Attribute value
Main
Product destination	globe valve
Control type	automatic reset
Force N	800 N
Product or component type	actuator
Targeted region	North America.
Switch function	2 SPDT (optional)
Relative humidity	15-95 % non-condensing
Analogue input range	4...20 mA with 500 Ohm resistor, 0...10 V DC
Output voltage	16 V DC
Motor type	brushless DC motor
Ambient air temperature for storage	-25-65 °C
Force lbf	179 lbf
Actuator	linear
Output current	30 mA
[Us] rated supply voltage	20...29 V DC, 24 V AC/DC
Ambient air temperature for operation	-10-50 °C

Stroke auto calibration	True
Power loss return	non-spring return
Feedback signal	2...10 V DC
Actuator type	electric
Actuator product range	SpaceLogic
Control signal	proportional/modulating, floating
Actuator product series	M800
Position indicator	green push stem with color markers
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.5 cm
Package 1 Width	17.8 cm
Package 1 Length	18.0 cm
Package 1 Weight	1.758 kg
