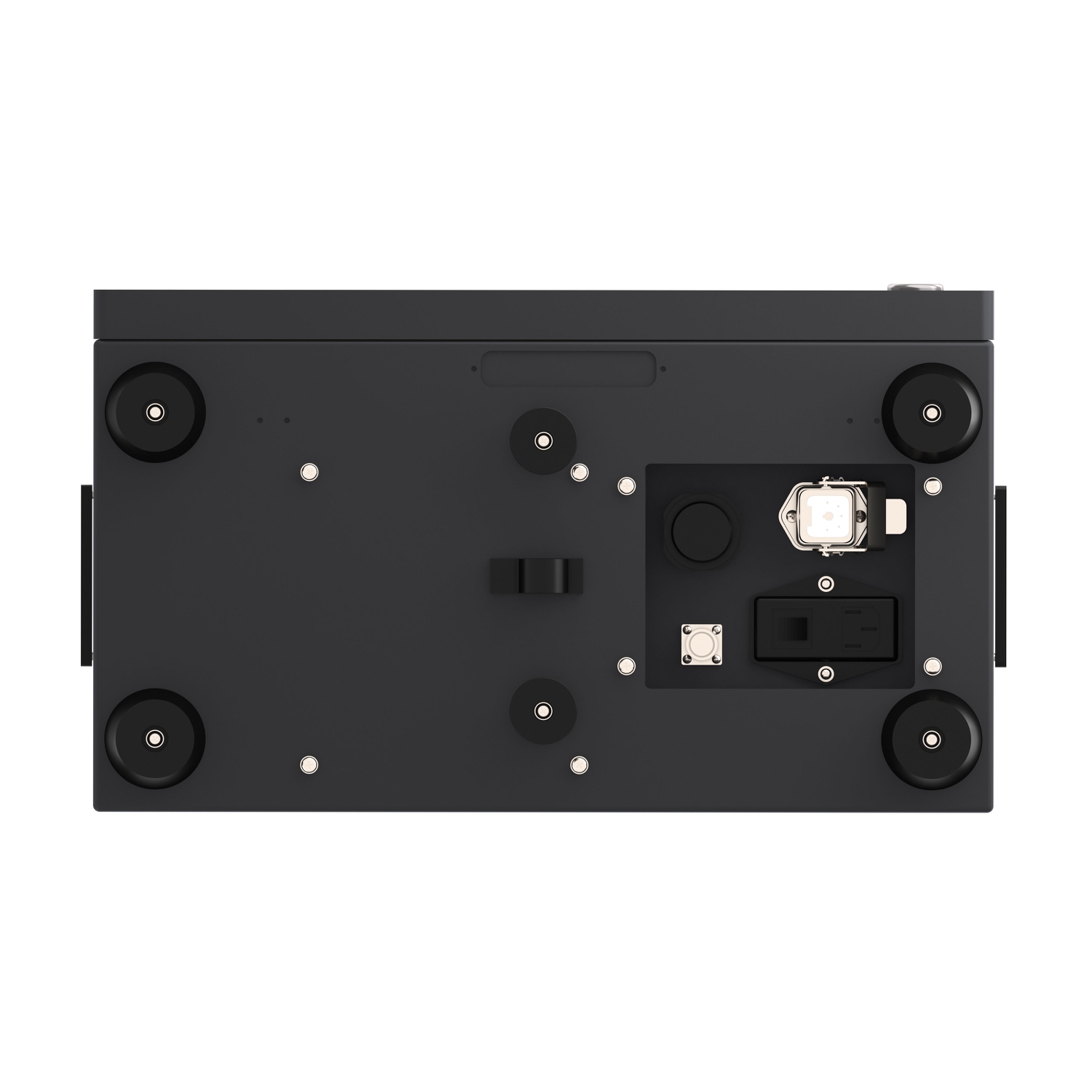

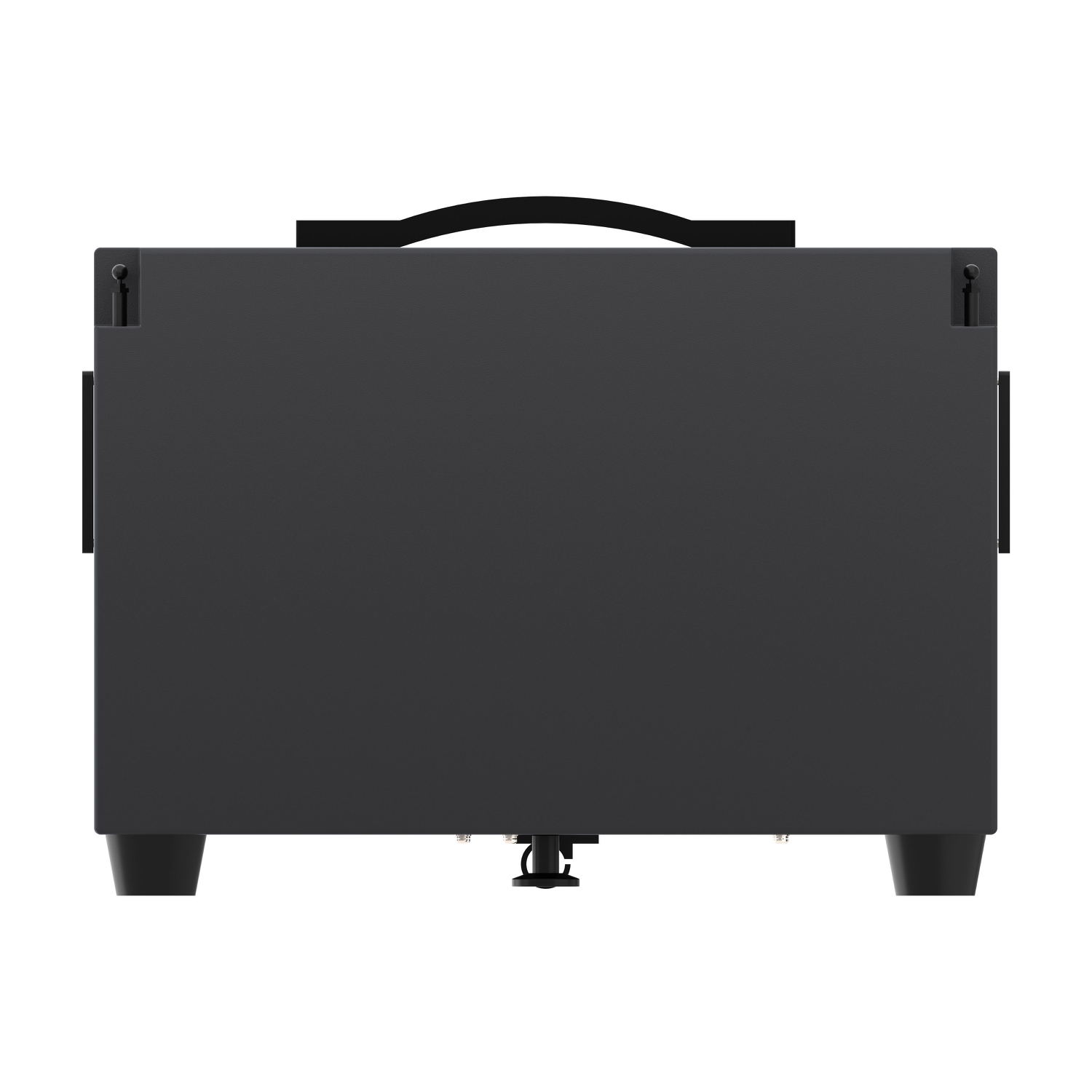

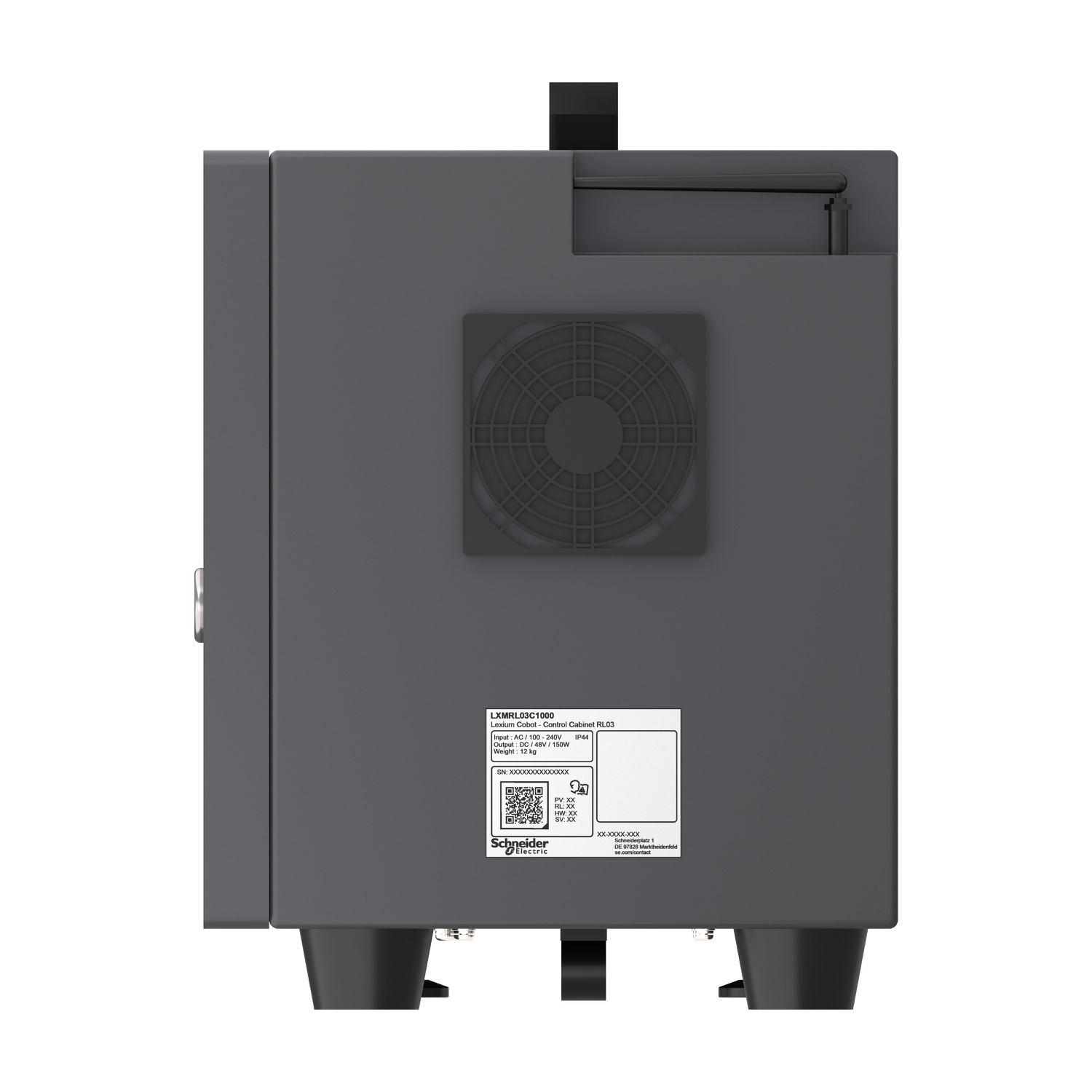

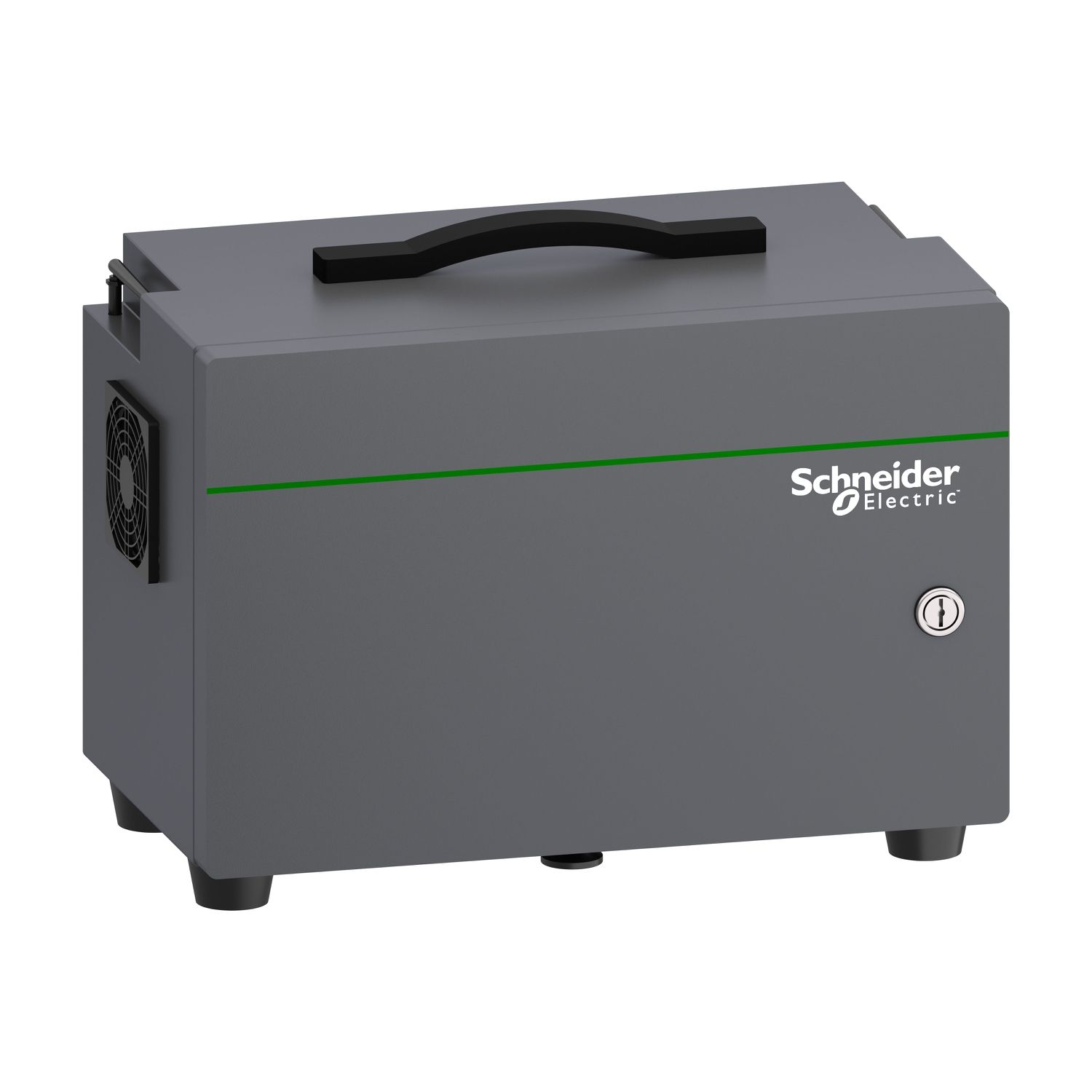

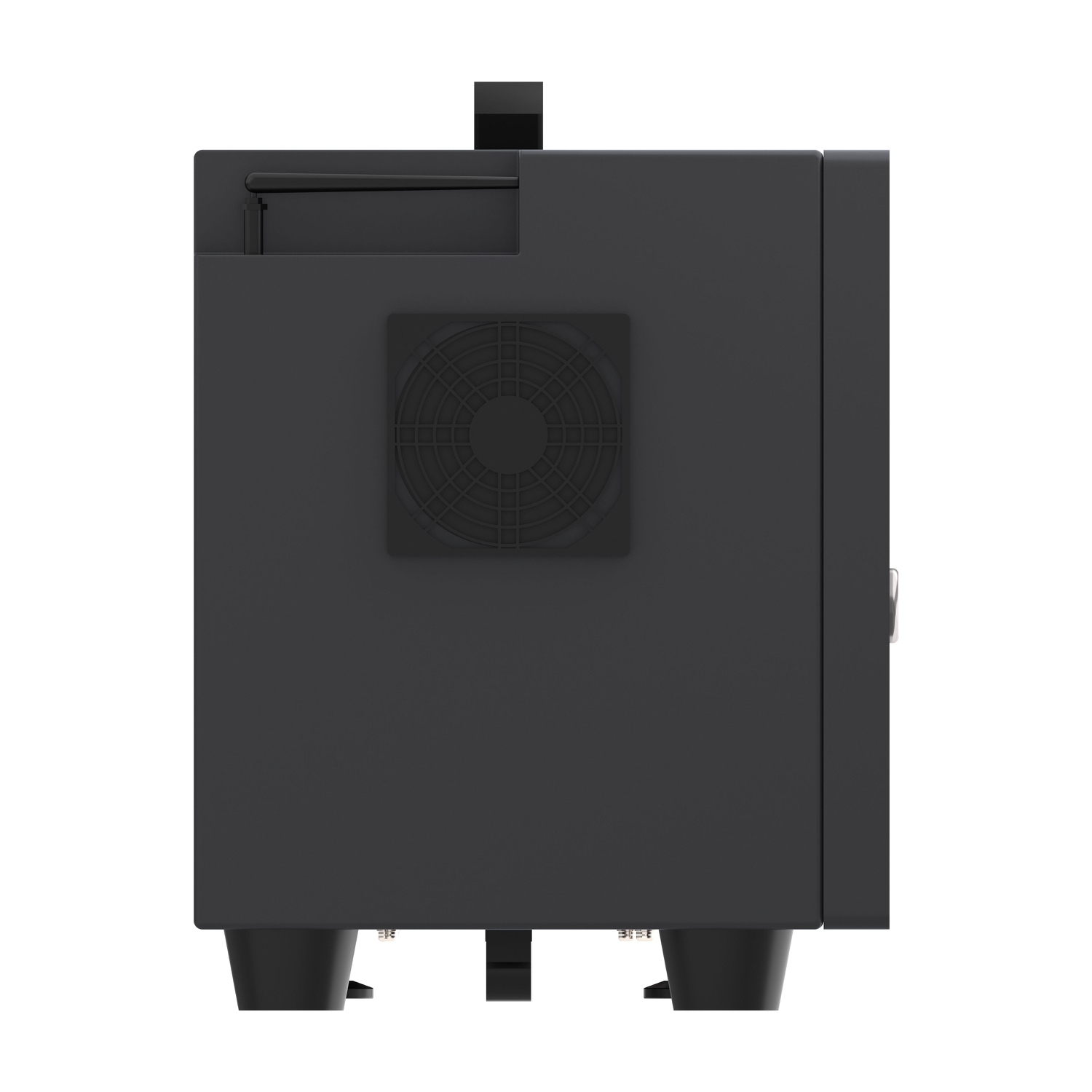

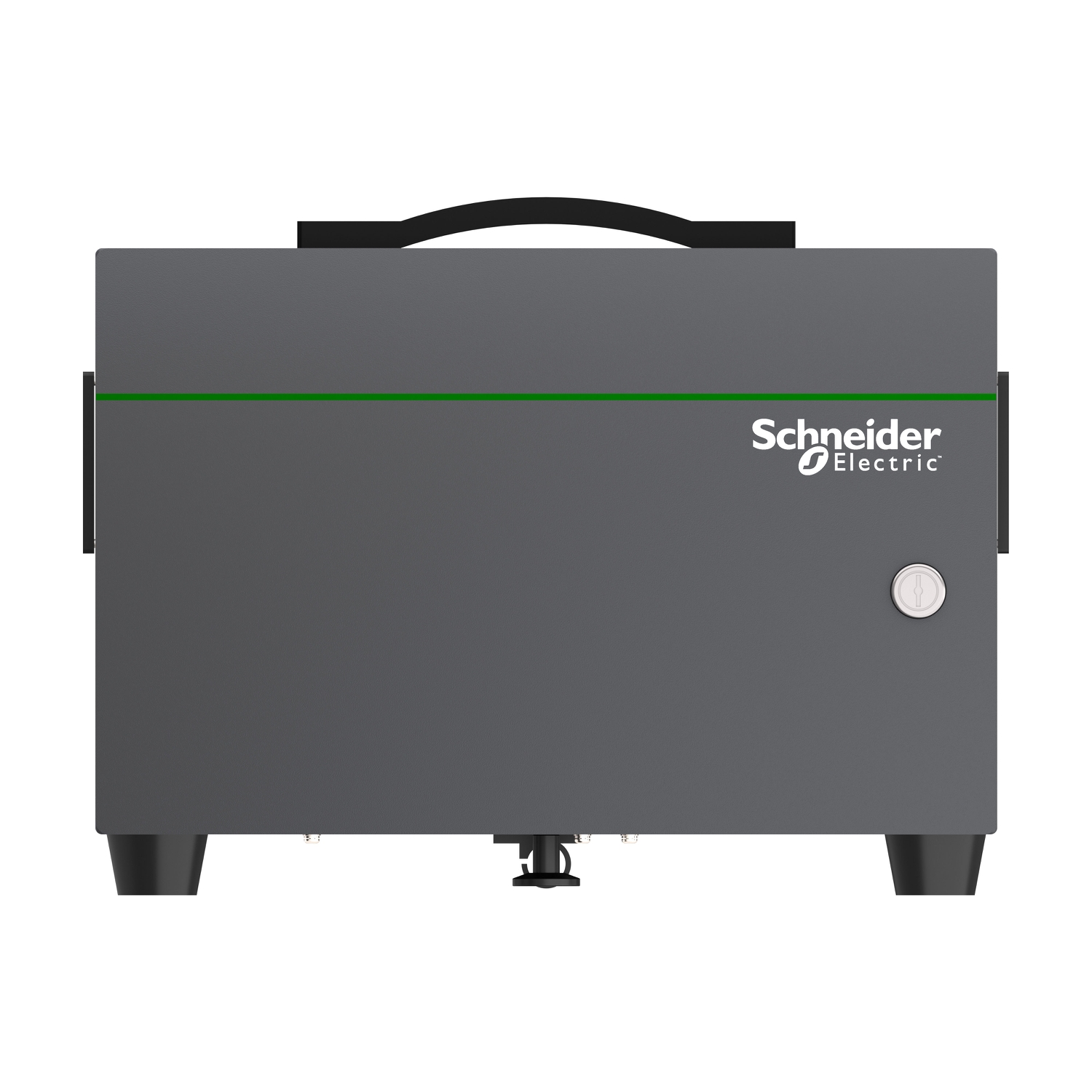

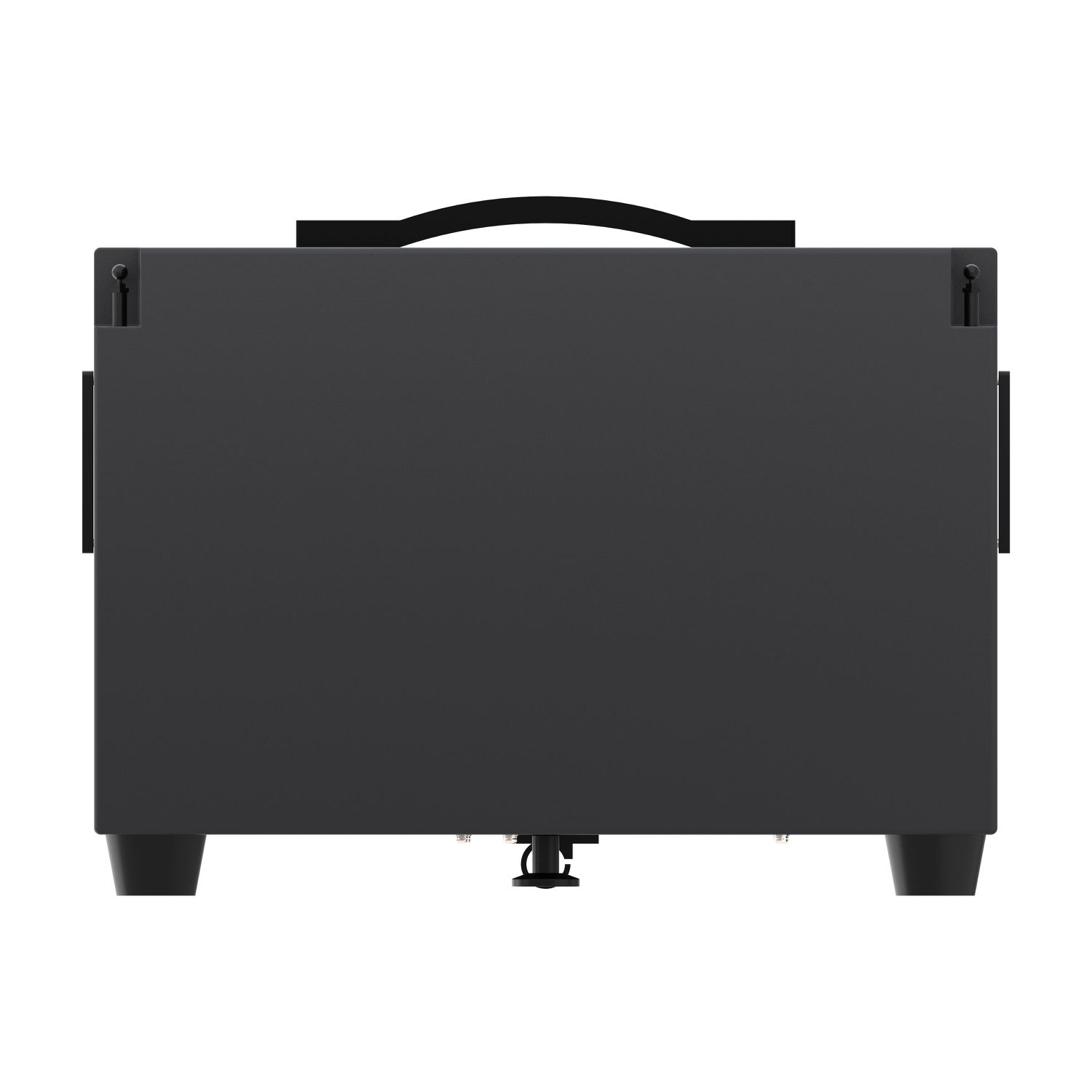

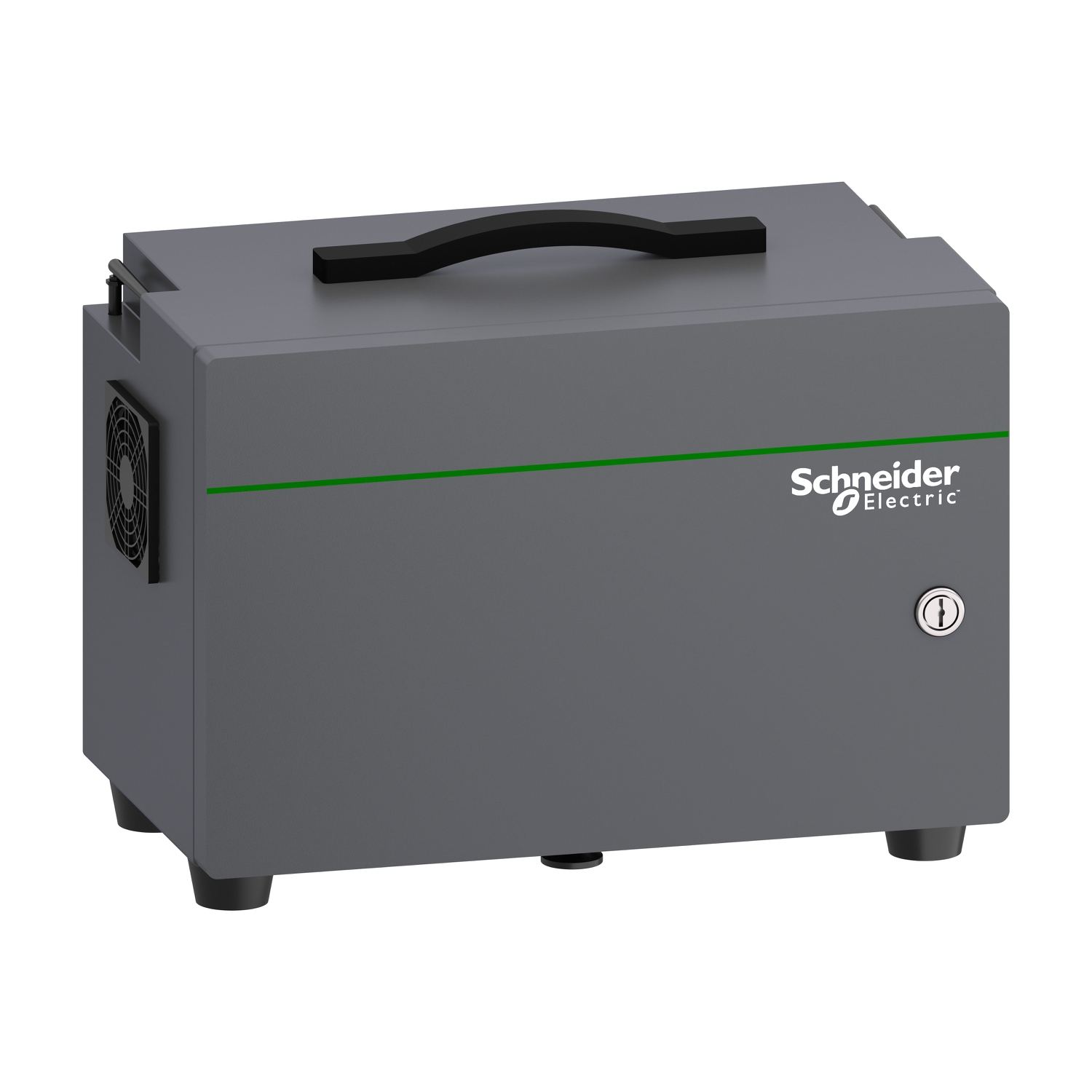

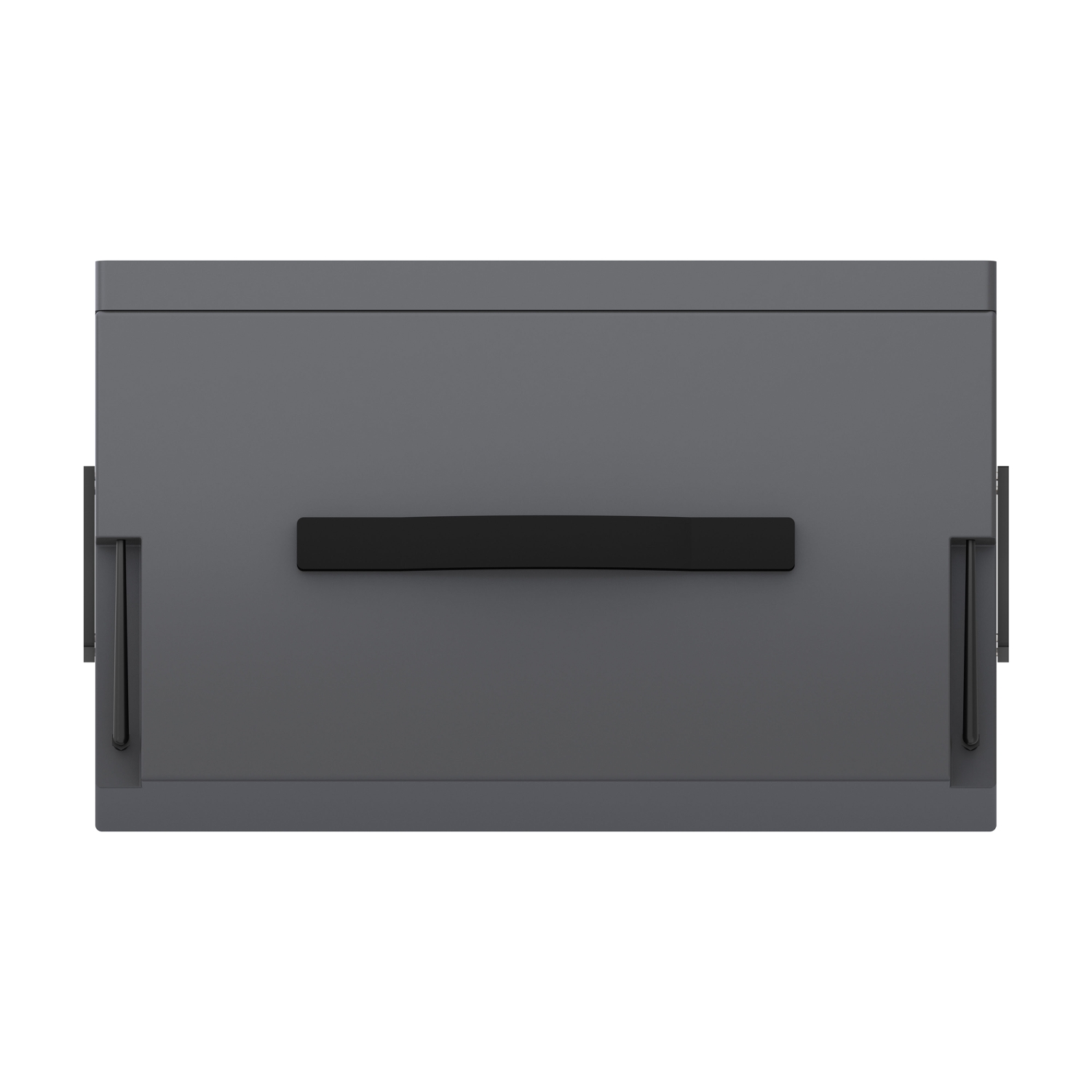

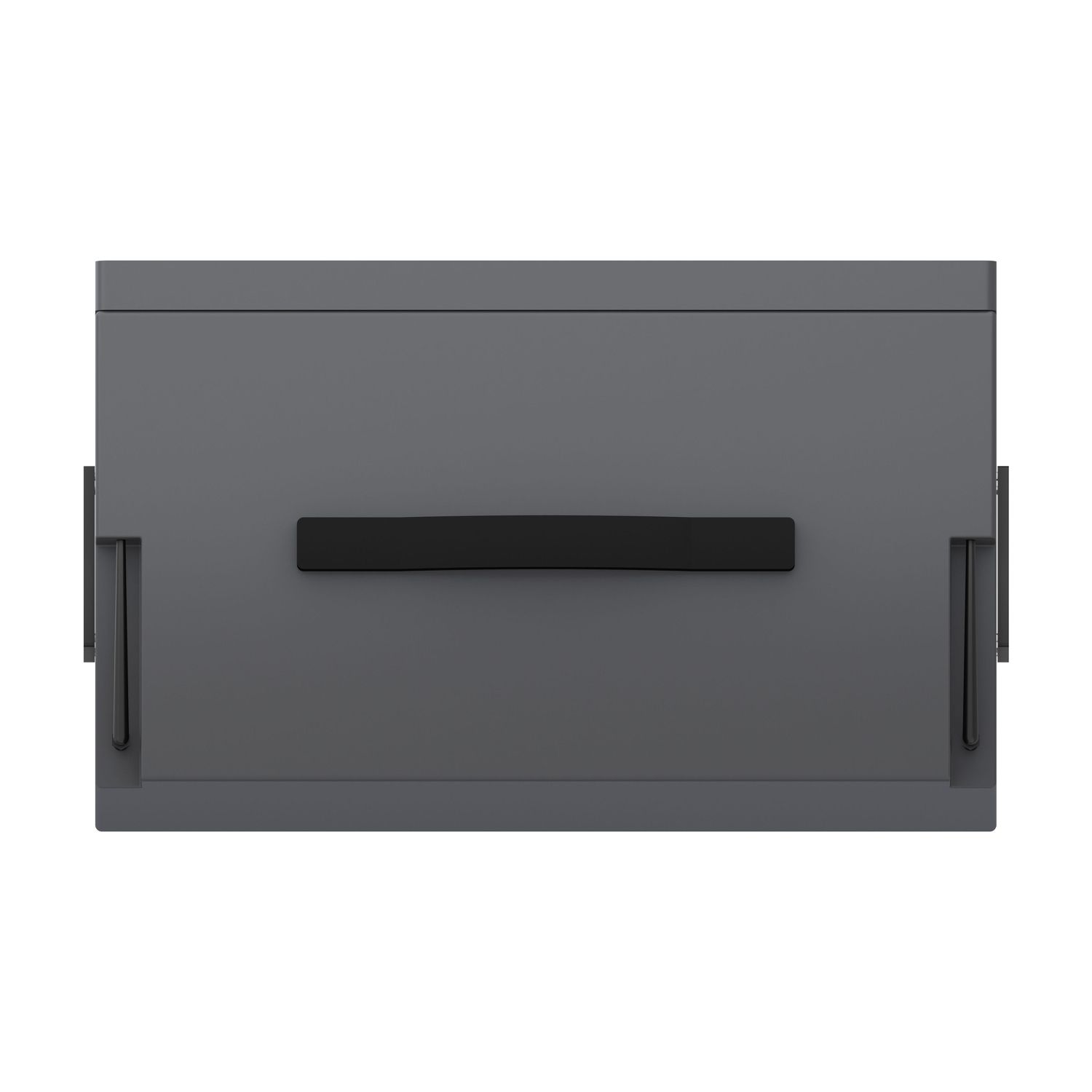

Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
Picture of controller, Lexium Cobot, for 3 kg payload robot
SKU:

LXMRL03C1000

controller, Lexium Cobot, for 3 kg payload robot

$17,424.00 INC GST
Available for Shipping : 24-Mar-2026
Product Selector
controller, Lexium Cobot, for 3 kg payload robot
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 24-Mar-2026
Environmental Disclosure
Circularity Profile
Catalog
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation. This cobot controller monitors collaborative robots with 3kg payload, with an input power of 100V to 240V AC, 50-60Hz This cobot controller has one High-speed input for belt tracking, 16 Digital input and output, and 2 analog input or output. Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines. It has IP44 rating. It embeds a communication interface (RJ45 connector) for TCP/IP, Modbus TCP, Modbus RTU, ProfiNet and Ethernet/IP. It is made of aluminium and steel, and weighs 12kg. It measures 410mm wide, 307mm high and 235mm deep. This cobot controller is designed to be mounted floor standing, placed next to the robot arms, in its work area. It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE. This cobot controller monitors collaborative robots with 3kg payload. It is connected to the cobot using a connection 6meter long cable. It is designed to be floor standing, placed near to the robot. Collaborative robots are working companions of humans, reducing the drudgery of their work. Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots.

Products specifications

Attribute name Attribute value
Main
Product compatibility 3 kg payload robot cobot
Discrete input number 16
Analogue output number 2
Discrete output number 16
Analogue input number 2
Product or component type robot controller
Range of product Lexium Cobot
Complementary
IP degree of protection IP44
Depth 235 mm
Width 410 mm
Communication interface Ethernet/IP, Profinet, Modbus RTU, Modbus TCP, TCP/IP
Rated voltage 24 V DC
Input voltage 100...240 V AC 50/60 Hz
Net weight 12 kg
Material stainless steel
Marking TÜV, KC, CE
Height 307 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.000 cm
Package 1 Width 33.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 16.080 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 105.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 74.320 kg
