SKU:

LXEFL2502

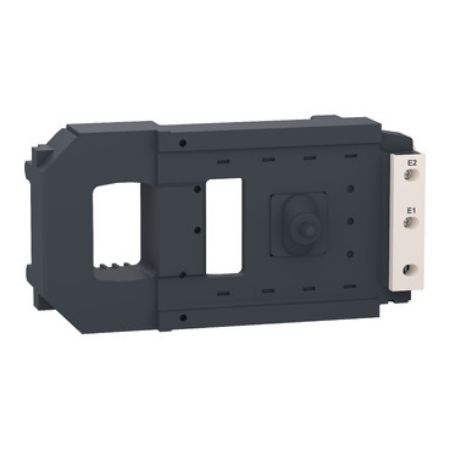

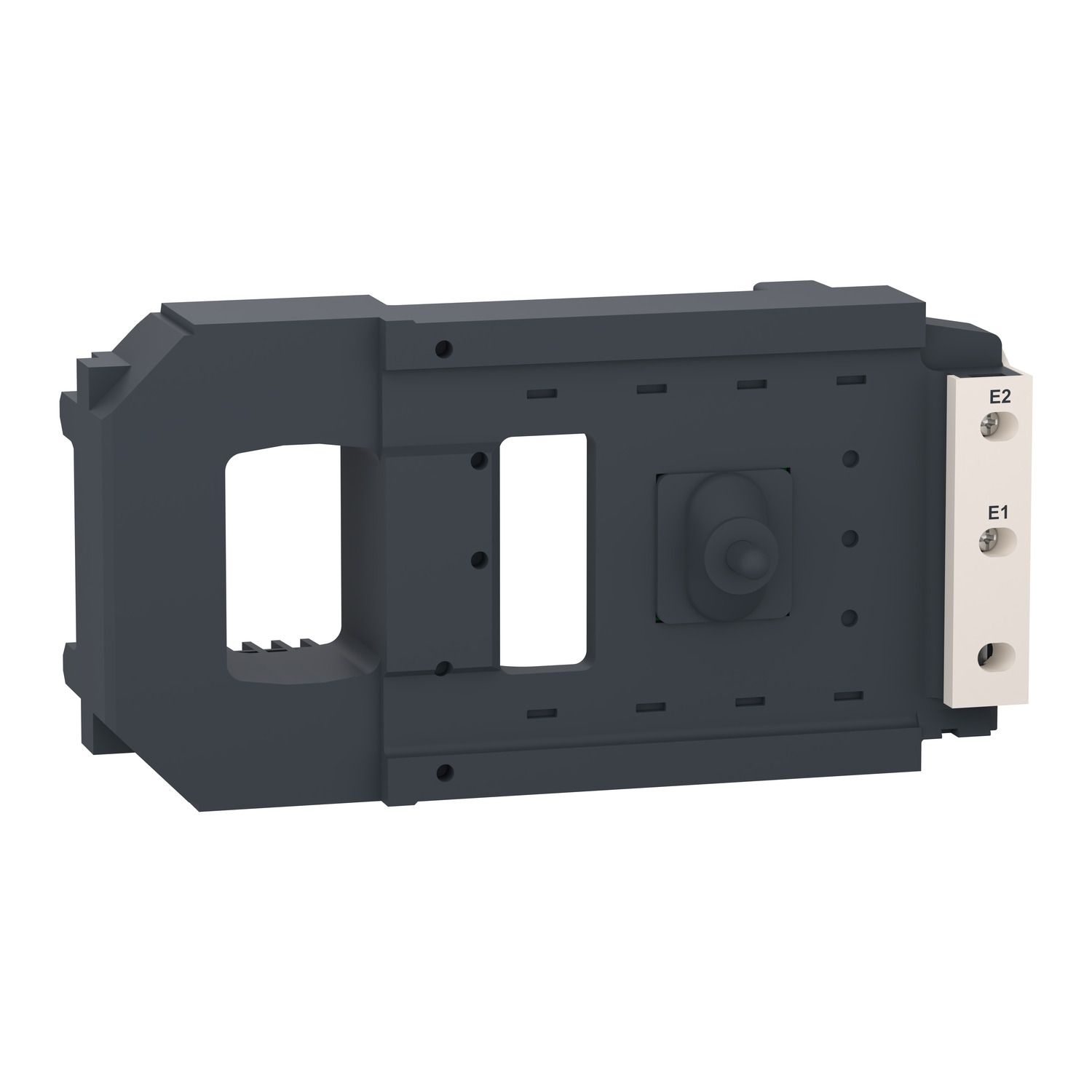

Wide band coil,TeSys F,100-250V AC/DC,low sealed consumption,spare part for LC1F2600KUE

$16,391.11
Available for Shipping : 17-Dec-2024
Wide band coil,TeSys F,100-250V AC/DC,low sealed consumption,spare part for LC1F2600KUE
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Range TeSys
Mechanical durability 0.5 Mcycles for use with LC1F2600
Device short name LXEFL
Product compatibility LC1F2600
Tightening torque control circuit: 1.08-1.32 N.m
Product or component type specific contactor coil
Operating time 20...28 ms opening, 54...88 ms closing
Range compatibility TeSys TeSys F LA4EM electronic control module, TeSys TeSys F LC1F contactor
Control circuit type DC electronic, AC at 50/60 Hz electronic
Range of product TeSys F
Maximum operating rate 600 cyc/h 55 °C
[Uc] control circuit voltage 100...250 V DC, 100...250 V AC 50/60 Hz
Installed device LA4EM250FL2
Complementary
Heat dissipation 16-20 W
Inrush power in VA 1100-2300 VA 50/60 Hz cos phi 0.5 (at 20 °C)
Hold-in power consumption in W 14-18 W at 20 °C
Hold-in power consumption in VA 21.1-24.5 VA 50/60 Hz cos phi 0.5 (at 20 °C)
Inrush power in W 1300-2400 W (at 20 °C)
Control circuit voltage limits drop-out: 0...51 V DC (at 55 °C), drop-out: 0...65 V AC (at 55 °C), operational: 85...275 V AC/DC (at 55 °C)
Coil technology built-in bidirectional peak limiting
Environment
Net weight 1.45 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 11.5 cm
Package 1 Length 22.5 cm
Package 1 Weight 1.5 kg
