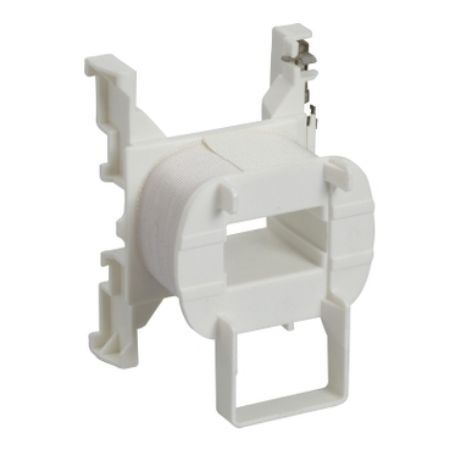

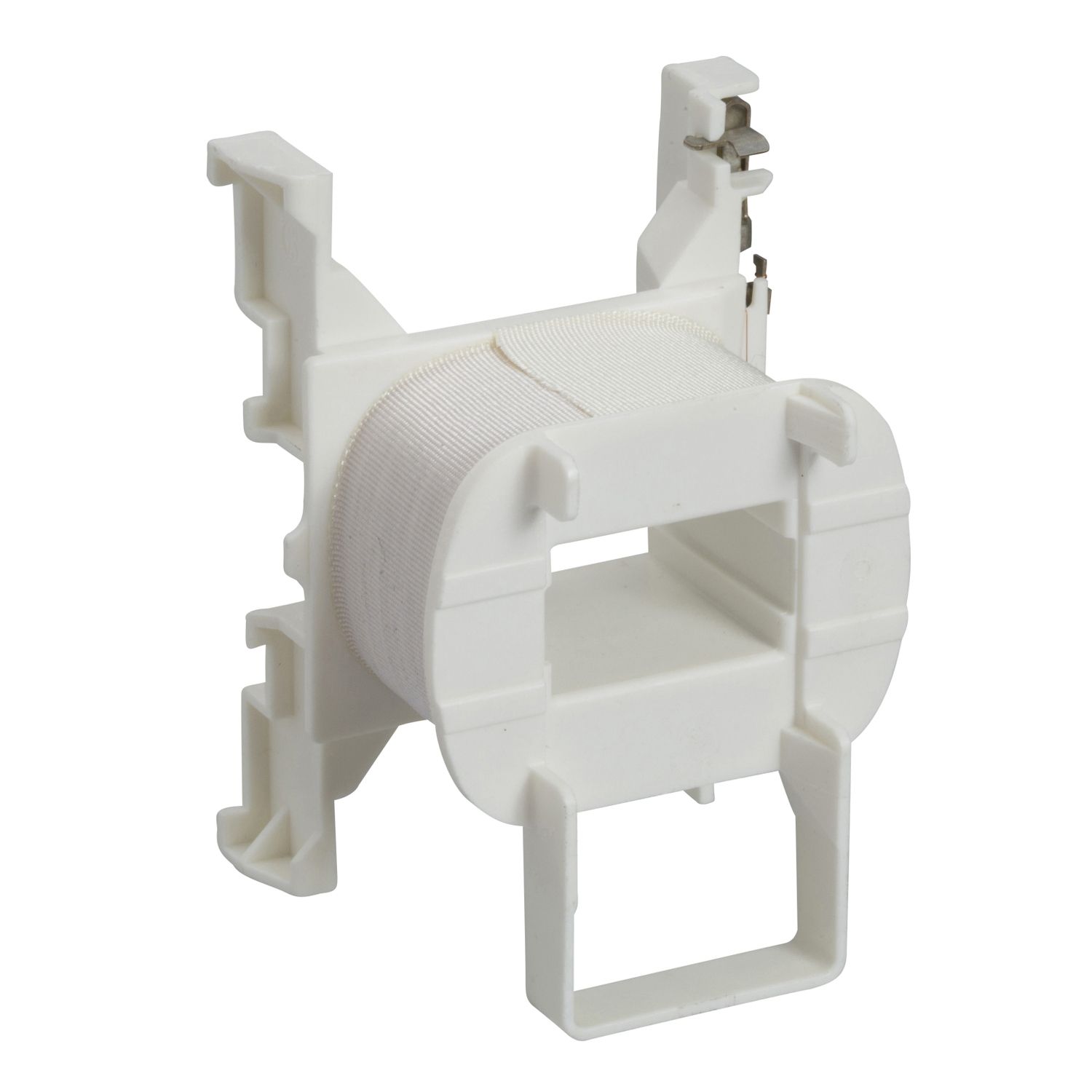

Picture of TeSys; TeSys Deca, contactor coil, LXD1, 600 V AC 50/60 Hz for 9… 38 A contactor
SKU:

LXD1X7

TeSys; TeSys Deca, contactor coil, LXD1, 600 V AC 50/60 Hz for 9… 38 A contactor

Old price: $99.22 INC GST
$62.51 INC GST
Available for Shipping : 20-Jan-2026
TeSys; TeSys Deca, contactor coil, LXD1, 600 V AC 50/60 Hz for 9… 38 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is TeSys Deca replacement AC coil 600V 50/60Hz for TeSys Deca contactors. It is applied on contactors LC1D09...D38 and LC1DT20…DT40. It operates in the voltage limits 0.85-1.1 Uc and environments until 60°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LXD1
Product compatibility LC1DT20...DT40, CAD, LC1D09...D38
Mechanical durability 15 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 136 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 600 V AC 50/60 Hz
Average resistance 3810 Ohm at 20 °C
Complementary
Heat dissipation 2-3 W at 50/60 Hz
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight 0.07 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 4.500 cm
Package 1 Length 3.500 cm
Package 1 Weight 79.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 2.570 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 90.240 kg
