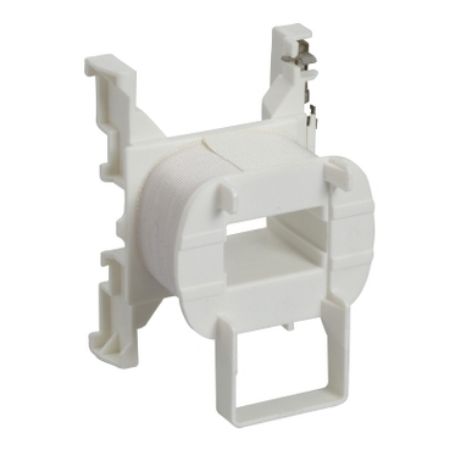

Picture of TeSys; TeSys Deca, contactor coil, LXD1, 32 V AC 50/60 Hz for 9… 38 A contactor
SKU:

LXD1C7

TeSys; TeSys Deca, contactor coil, LXD1, 32 V AC 50/60 Hz for 9… 38 A contactor

Old price: $99.22 INC GST
$62.51 INC GST
Availability: Please contact our sales team on 1300 724 622.
TeSys; TeSys Deca, contactor coil, LXD1, 32 V AC 50/60 Hz for 9… 38 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

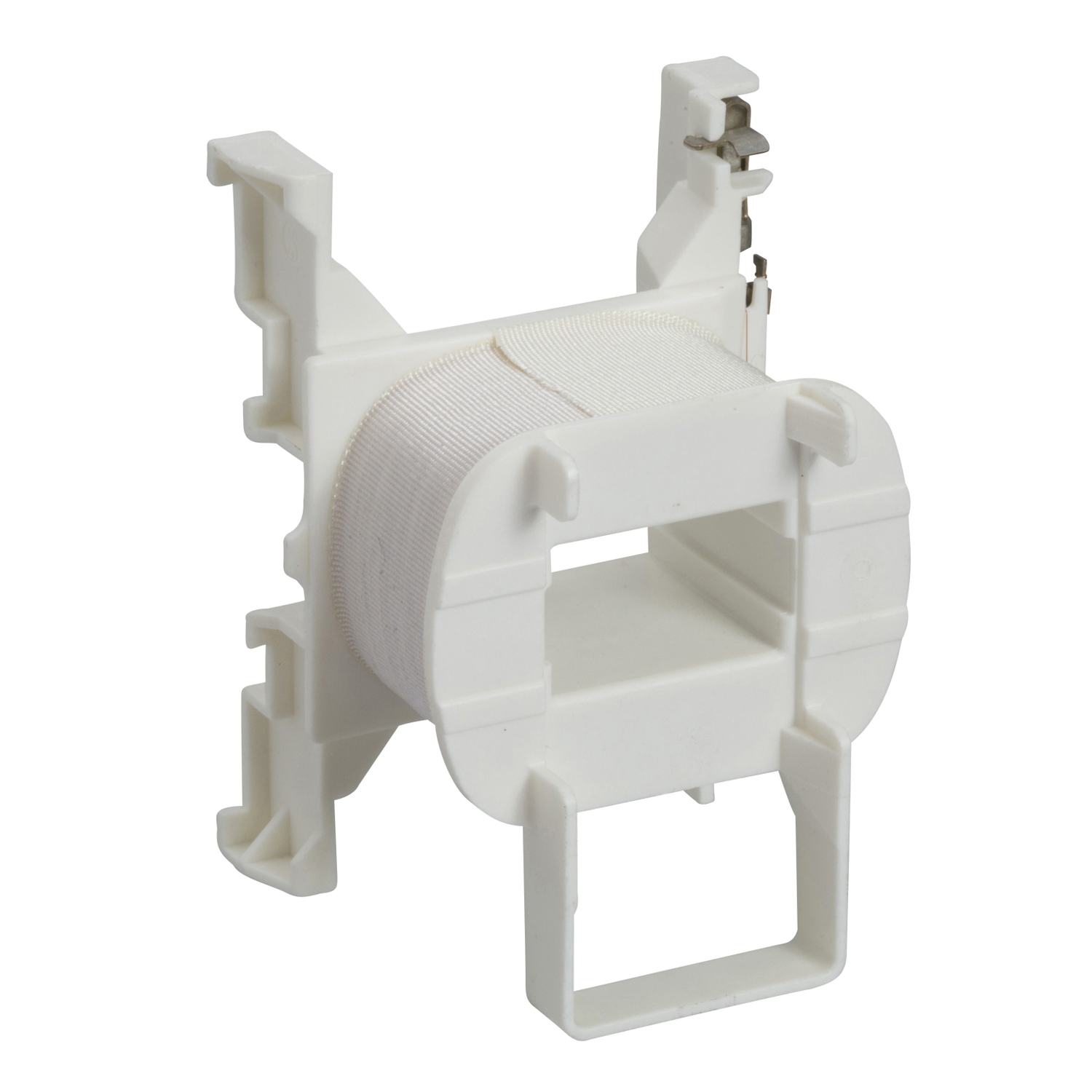

This product is TeSys Deca replacement AC coil 32V 50/60Hz for TeSys Deca contactors. It is applied on contactors LC1D09...D38 and LC1DT20…DT40. It operates in the voltage limits 0.85-1.1 Uc and environments until 60°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LXD1
Product compatibility CAD, LC1DT20...DT40, LC1D09...D38
Mechanical durability 15 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 0.39 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 32 V AC 50/60 Hz
Average resistance 10.1 Ohm at 20 °C
Complementary
Heat dissipation 2-3 W at 50/60 Hz
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight 0.07 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 6.2 cm
Package 1 Length 4.0 cm
Package 1 Weight 67.0 g
