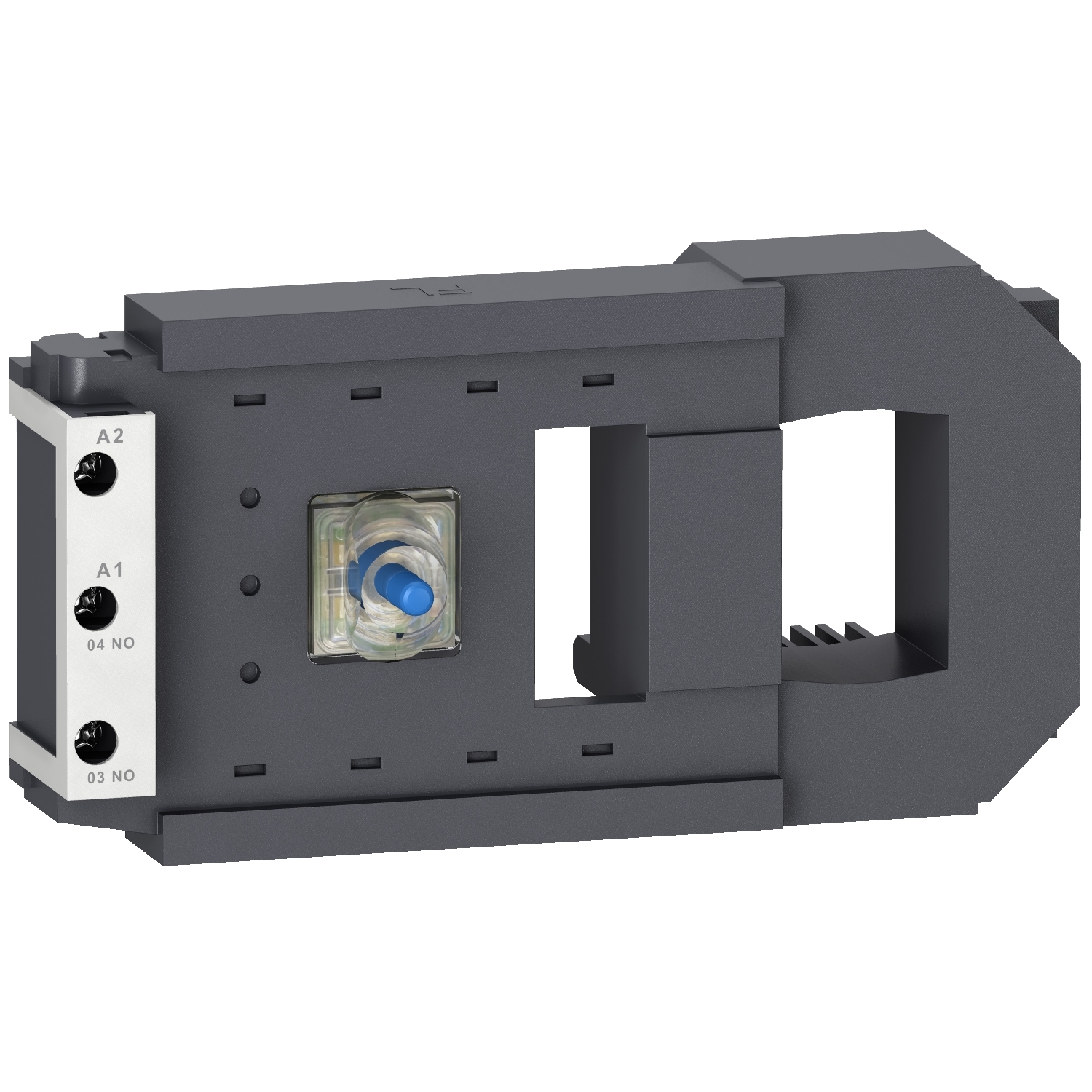

Picture of TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption
SKU:

LX9FG380

TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption

Old price: $753.50 INC GST
$474.70 INC GST
Available for Shipping : 08-Mar-2026
TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption
  • Stable and reliable thanks to low sealed consumption and high tolerance to inrush voltage drops
  • Excellent durability with high operating rates up to 2400 cycles/hour under high temperature
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Mar-2026
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F AC coil 380/400V 40-400Hz (voltage code Q7/V7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX9FG
Product compatibility LC1F225, LC1F185
Operating time 35 ms closing, 130 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 16.4 H
Range TeSys
Product or component type specific contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type AC at 40...400 Hz low consumption
Range of product TeSys F
[Uc] control circuit voltage 380 V AC 40...400 Hz
Average resistance 4730 Ohm holding at 20 °C, 128 Ohm inrush at 20 °C
Complementary
Heat dissipation 8-9.8 W
Hold-in power consumption in VA 8.9-10.9 VA 40...400 Hz (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 950-1180 VA 40...400 Hz (at 20 °C)
Control circuit voltage limits drop-out: 0.2...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
Environment
Net weight 0.55 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.400 cm
Package 1 Width 10.500 cm
Package 1 Length 17.700 cm
Package 1 Weight 568.900 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.434 kg
