SKU:

LX9FG024

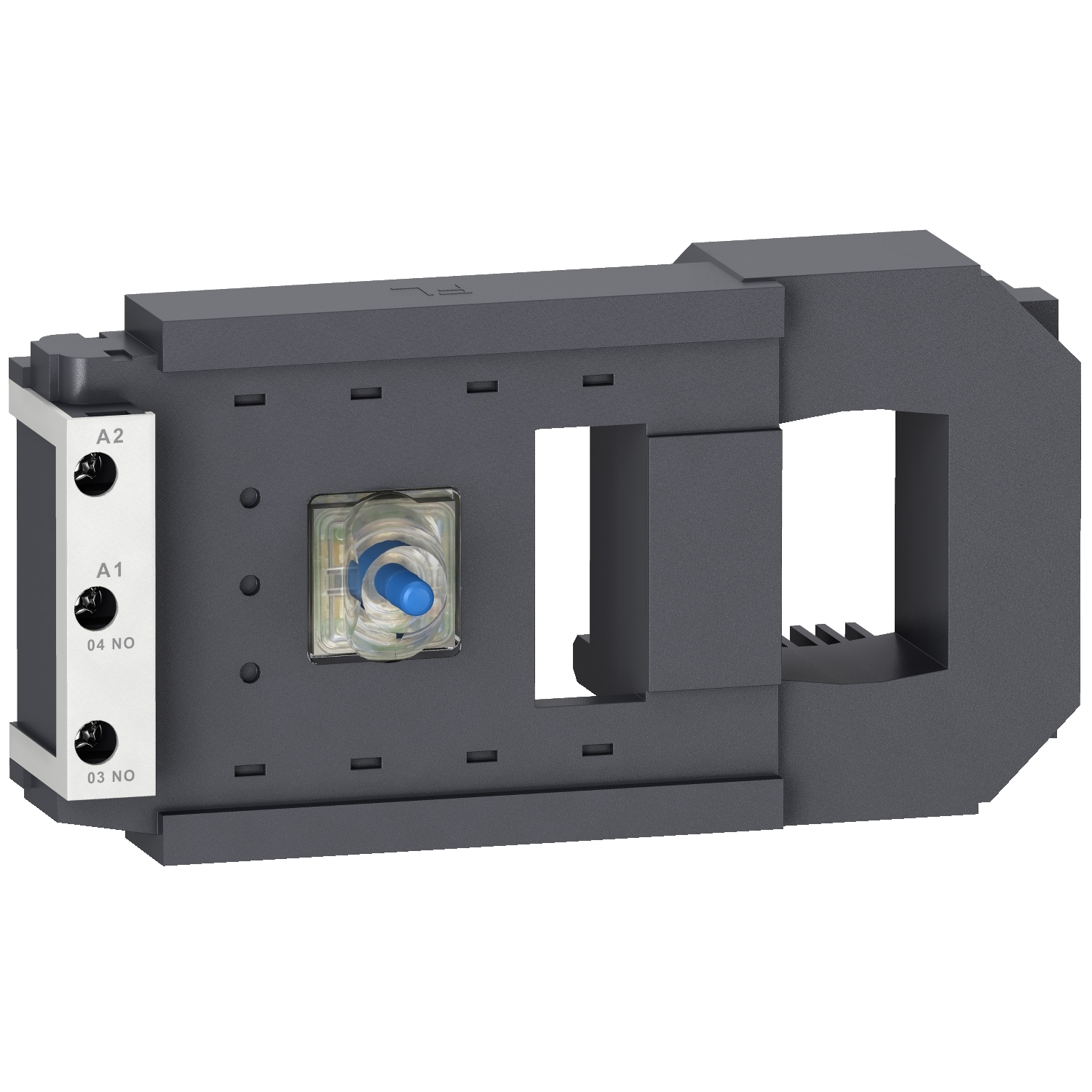

TeSys F - specific contactor coil - 24 V AC 40...400 Hz low consumption

Old price: $971.30 INC GST

Price: $611.92 INC GST

Qty:

Available for Shipping : 03-Mar-2026

TeSys F - specific contactor coil - 24 V AC 40...400 Hz low consumption

Manufacturer: Schneider Electric

Delivery date: 03-Mar-2026

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Mechanical durability	10 Mcycles
Device short name	LX9FG
Product compatibility	LC1F115, LC1F150
Operating time	130 ms opening, 35 ms closing
Maximum operating rate	2400 cyc/h 55 °C
Inductance of closed circuit	0.13 H
Range	TeSys
Product or component type	contactor coil
Range compatibility	TeSys TeSys F LC1F contactor
Control circuit type	AC low consumption
Range of product	TeSys F
[Uc] control circuit voltage	24 V AC
Average resistance	34 Ohm holding at 20 °C, 0.56 Ohm inrush at 20 °C
Complementary
Inrush power in W	950-1180 W (at 20 °C)
Coil technology	without built-in suppressor module
Hold-in power consumption in W	8.9-10.9 W at 20 °C
Control circuit voltage limits	drop-out: 0.2...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
Environment
Net weight	0.55 kg
Ambient air temperature for operation	-5-55 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.3 cm
Package 1 Width	10.3 cm
Package 1 Length	17.7 cm
Package 1 Weight	603.0 g
Unit Type of Package 2	2
Number of Units in Package 2	14
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	8.885 kg
