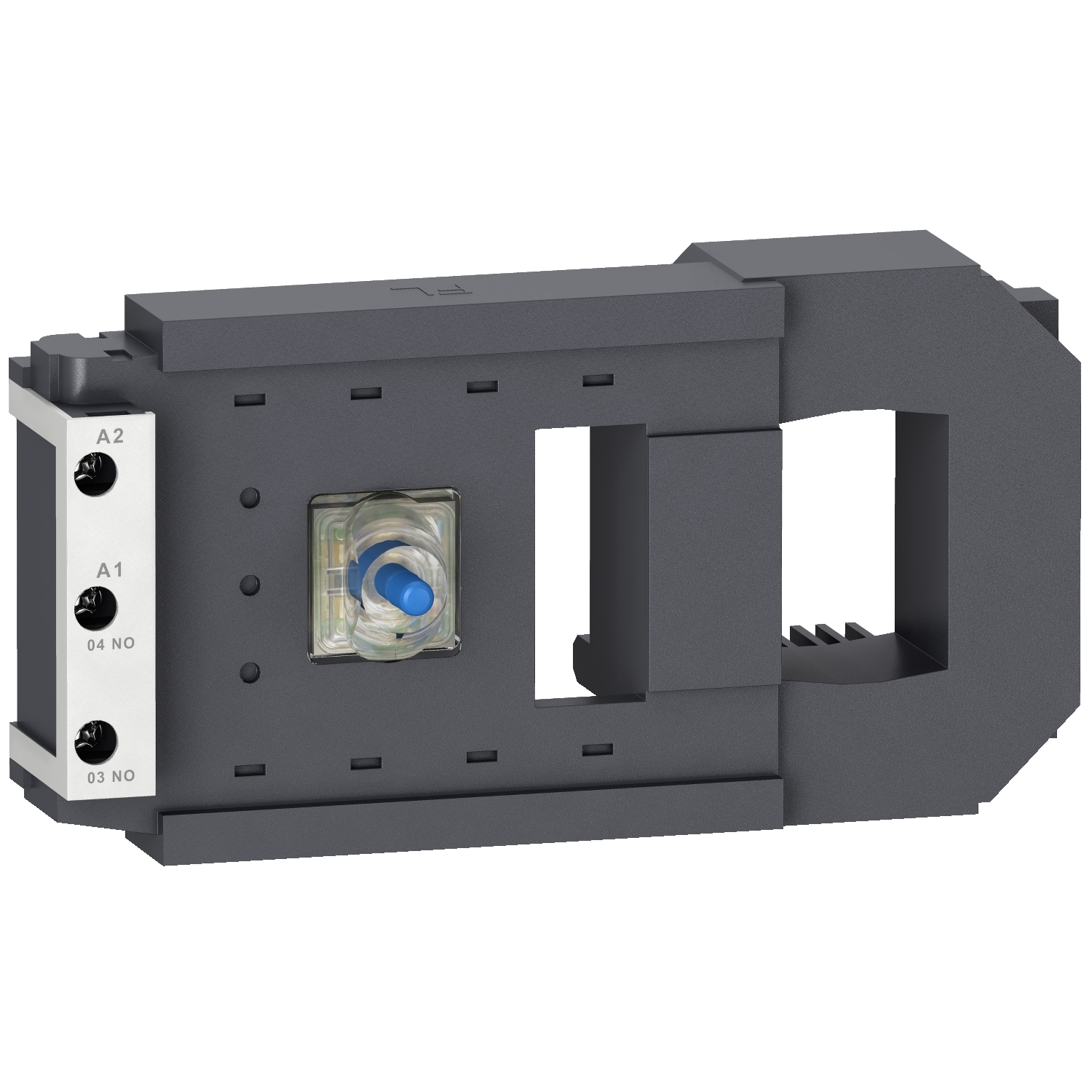

Picture of TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption
SKU:

LX9FF415

TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption

Old price: $680.90 INC GST
$428.97 INC GST
Availability: Please contact our sales team on 1300 724 622.
TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption
  • Stable and reliable thanks to low sealed consumption and high tolerance to inrush voltage drops
  • Excellent durability with high operating rates up to 2400 cycles/hour under high temperature
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F AC coil 415/440V 40-400Hz (voltage code N7/R7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150, FG150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX9FF
Product compatibility LC1F150, LC1F115
Operating time 35 ms closing, 130 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 30 H
Range TeSys
Product or component type specific contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type AC at 40...400 Hz low consumption
Range of product TeSys F
[Uc] control circuit voltage 415...440 V AC 40...400 Hz
Average resistance 8460 Ohm holding at 20 °C, 218 Ohm inrush at 20 °C
Complementary
Heat dissipation 5.9-7.2 W
Hold-in power consumption in VA 6.6-8.1 VA 40...400 Hz (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 690-855 VA 40...400 Hz (at 20 °C)
Control circuit voltage limits drop-out: 0.2...0.55 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
Environment
Net weight 0.43 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 10.4 cm
Package 1 Length 18.0 cm
Package 1 Weight 517.0 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.99 kg
