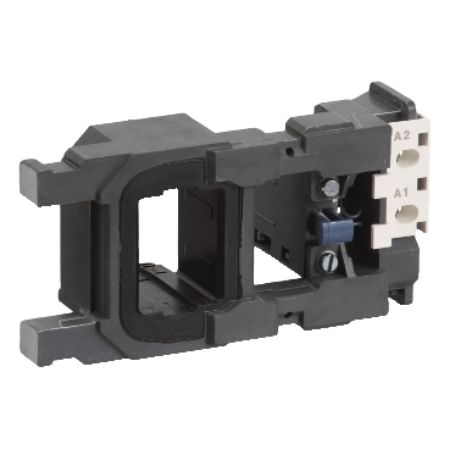

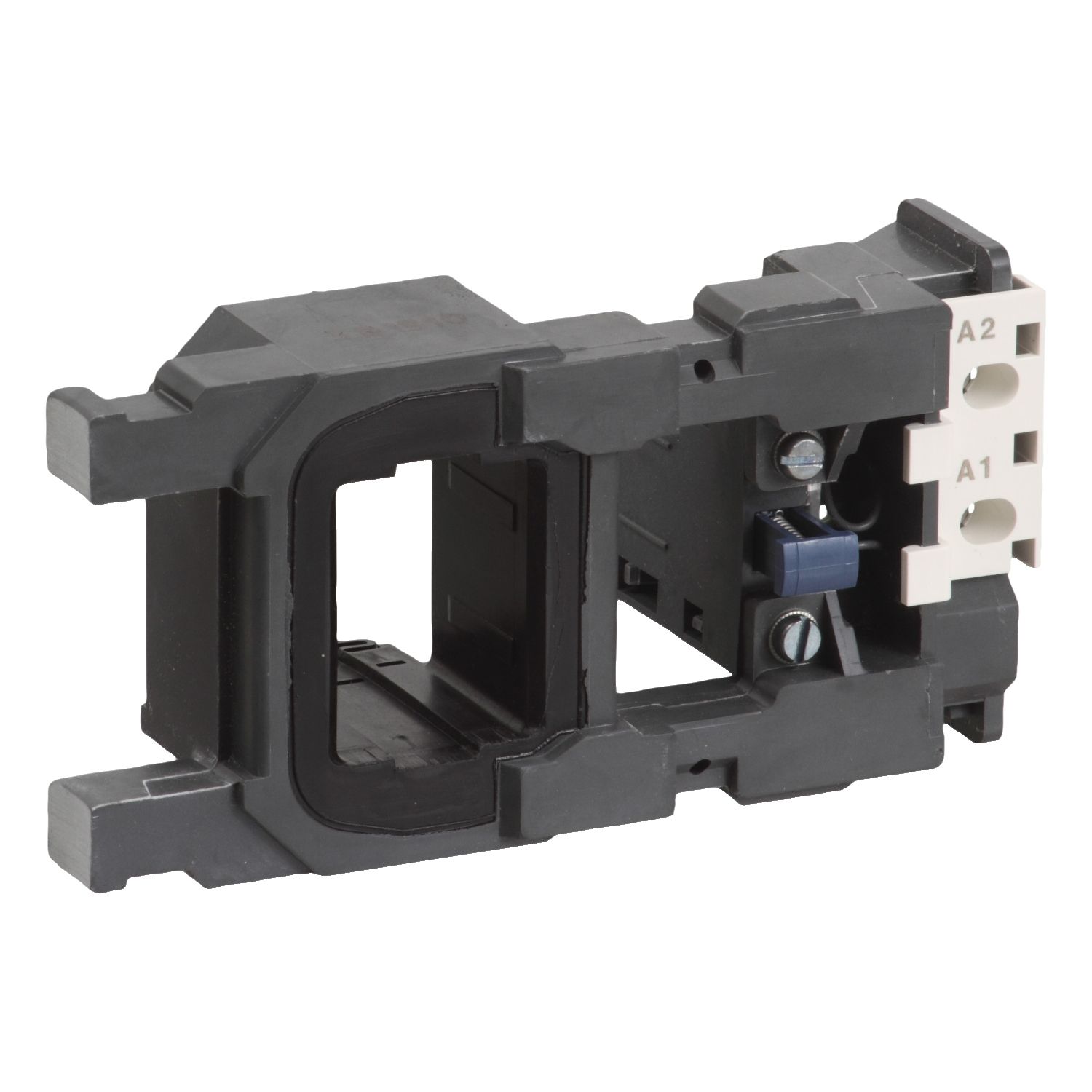

Picture of TeSys F - contactor coil - LX4FG - 220...230 V DC
SKU:

LX4FG220

TeSys F - contactor coil - LX4FG - 220...230 V DC

Old price: $596.20 INC GST
$375.61 INC GST
Availability: Please contact our sales team on 1300 724 622.
TeSys F - contactor coil - LX4FG - 220...230 V DC
  • Energy saving: low inrush consumption
  • Excellent durability with high operating rates up to 2400 cycles/hour
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F DC coil 220/230V (voltage code MD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F185, F225. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX4FG
Product compatibility LC1F225, LC1F185
Operating time 30...50 ms opening, 30...40 ms closing
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 890 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type DC low consumption
Range of product TeSys F
[Uc] control circuit voltage 220...230 V DC
Average resistance 10200 Ohm holding at 20 °C, 57.7 Ohm inrush at 20 °C
Complementary
Inrush power in W 800-800 W (at 20 °C)
Coil technology without built-in suppressor module
Hold-in power consumption in W 5-5 W at 20 °C
Control circuit voltage limits drop-out: 0.15...0.2 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
Environment
Net weight 0.55 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 10.5 cm
Package 1 Length 17.7 cm
Package 1 Weight 576.0 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.512 kg
