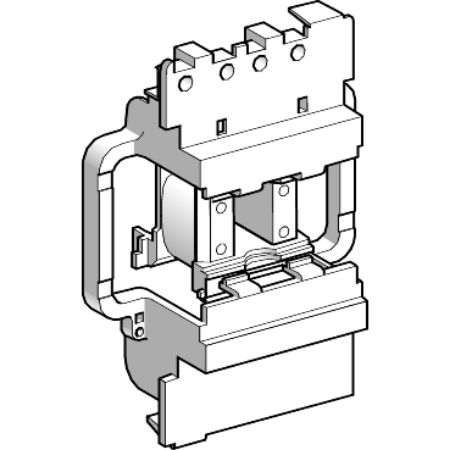

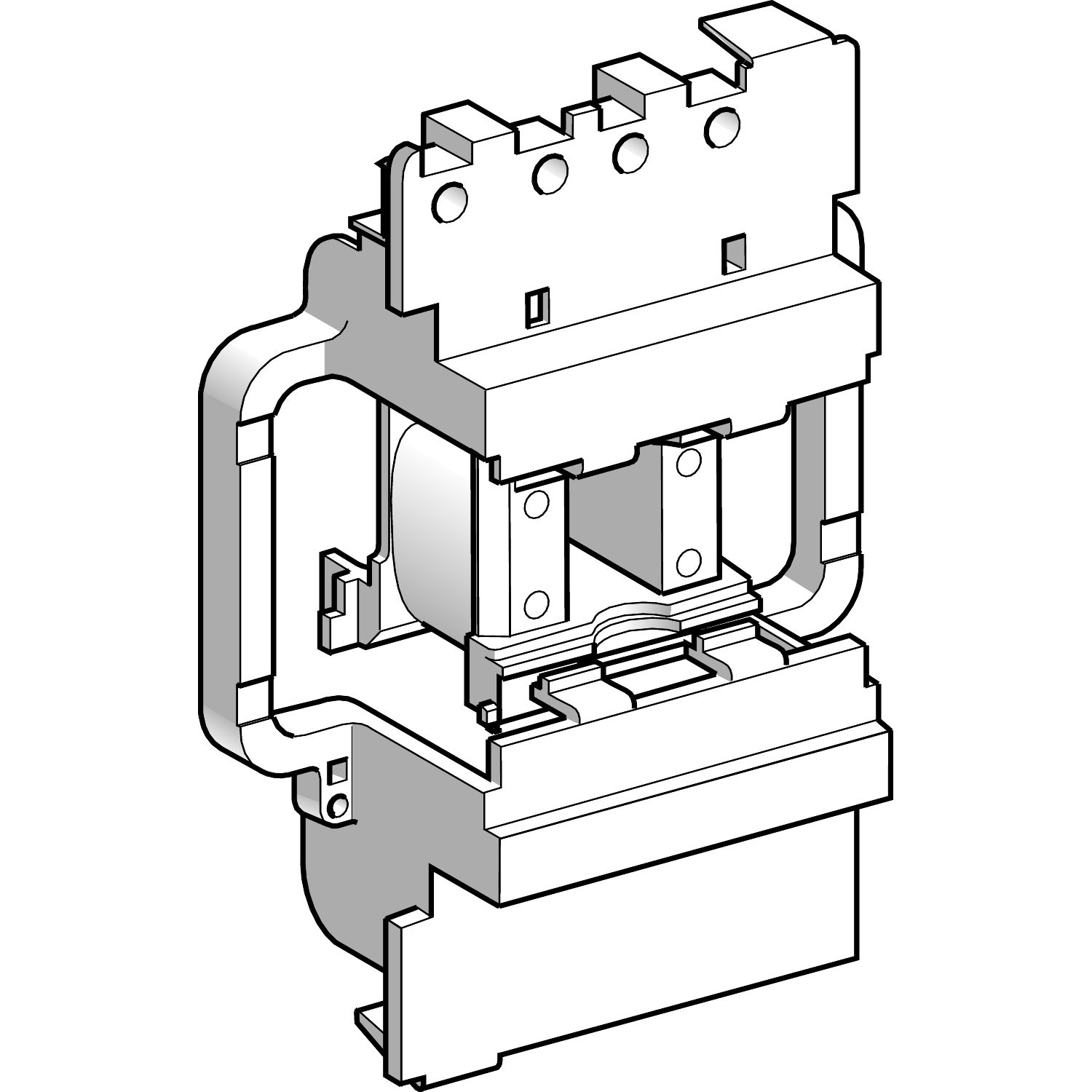

Picture of TeSys; TeSys Deca, contactor coil, LX4D8, 220 V DC standard for 115 & 150 A contactor
SKU:

LX4D8MD

TeSys; TeSys Deca, contactor coil, LX4D8, 220 V DC standard for 115 & 150 A contactor

Old price: $535.15 INC GST
$337.14 INC GST
Available for Shipping : 27-Jan-2026
TeSys; TeSys Deca, contactor coil, LX4D8, 220 V DC standard for 115 & 150 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is TeSys Deca replacement DC coil 220V for TeSys Deca contactors. It is applied on 3-pole contactors LC1D80 or 4-pole contactors LP1D80. It operates in the voltage limits 0.75-1.2 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX4D8
Product compatibility LC1D150, LC1D115
Mechanical durability 8 Mcycles
Maximum operating rate 1200 cyc/h 60 °C
Inductance of closed circuit 210.72 H
Range TeSys
Product or component type contactor coil
Control circuit type DC standard
Range of product TeSys Deca
[Uc] control circuit voltage 220 V DC
Average resistance 9895 Ohm at 20 °C
Complementary
Inrush power in W 270-365 W (at 20 °C)
Time constant 25 ms
Coil technology without built-in suppressor module
Hold-in power consumption in W 2.4-5.1 W at 20 °C
Control circuit voltage limits drop-out: 0.15...0.4 Uc (at <55 °C), operational: 0.75...1.2 Uc (at <55 °C)
Environment
Net weight 0.3 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 11.500 cm
Package 1 Length 17.000 cm
Package 1 Weight 301.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.658 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 50.528 kg

Related products

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, lugs/bars terminals

LC1D1156MD
$591.82 INC GST $939.40 INC GST
View Detail

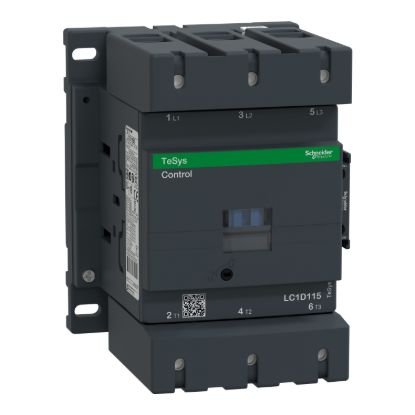

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V DC standard coil, screw clamp terminals

LC1D115MD
$537.08 INC GST $852.50 INC GST
View Detail

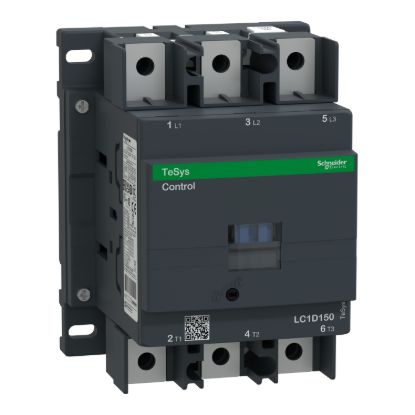

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 220V DC standard coil, lugs/bars terminals
