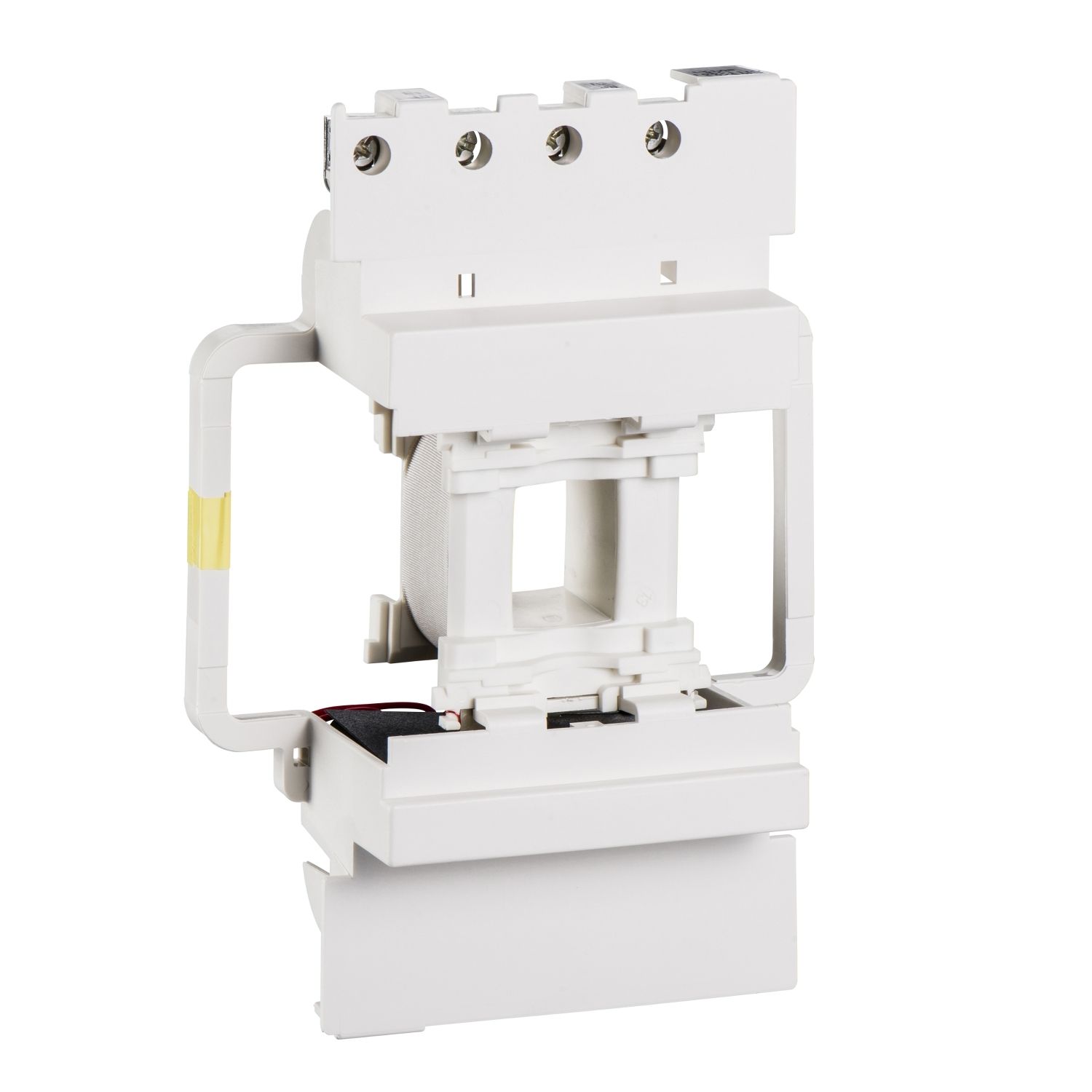

Picture of TeSys; TeSys Deca, contactor coil, LX4D8, 24 V DC standard for 115 & 150 A contactor
SKU:

LX4D8BD

TeSys; TeSys Deca, contactor coil, LX4D8, 24 V DC standard for 115 & 150 A contactor

Old price: $535.15 INC GST
$337.14 INC GST
Available for Shipping : 13-Jan-2026
TeSys; TeSys Deca, contactor coil, LX4D8, 24 V DC standard for 115 & 150 A contactor
  • Wider voltage limits: 0.75-1.2 Uc
  • Safe to use in circuit protection designed with integral suppression device
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D replacement DCcoil 24V, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.75-1.2 Uc. Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX4D8
Product compatibility LC1D115, LC1D150
Mechanical durability 8 Mcycles
Maximum operating rate 1200 cyc/h 60 °C
Inductance of closed circuit 3.03 H
Range TeSys
Product or component type contactor coil
Control circuit type DC standard
Range of product TeSys Deca
[Uc] control circuit voltage 24 V DC
Average resistance 147 Ohm at 20 °C
Complementary
Inrush power in W 270-365 W (at 20 °C)
Time constant 25 ms
Coil technology without built-in suppressor module
Hold-in power consumption in W 2.4-5.1 W at 20 °C
Control circuit voltage limits drop-out: 0.15...0.4 Uc (at <55 °C), operational: 0.75...1.2 Uc (at <55 °C)
Environment
Net weight 0.3 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 11.4 cm
Package 1 Length 17.2 cm
Package 1 Weight 293.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.347 kg

Related products

Picture of TeSys, Contactor, TeSys Deca, 4P(4NO), AC-1 <=440V 200A, 24V DC standard coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 4P(4NO), AC-1 <=440V 200A, 24V DC standard coil, lugs/bars terminals

LC1D1150046BD
$989.60 INC GST $1,570.80 INC GST
View Detail
Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V DC standard coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V DC standard coil, lugs/bars terminals

LC1D1156BD
$910.60 INC GST $1,445.40 INC GST
View Detail

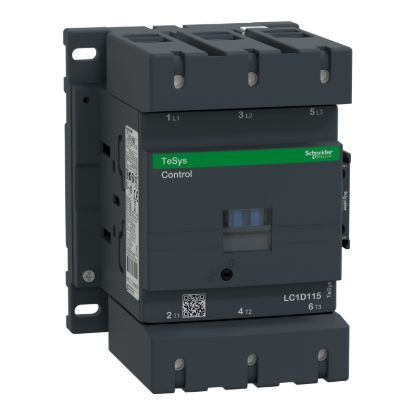

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V DC standard coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V DC standard coil, screw clamp terminals

LC1D115BD
$891.20 INC GST $1,414.60 INC GST
View Detail

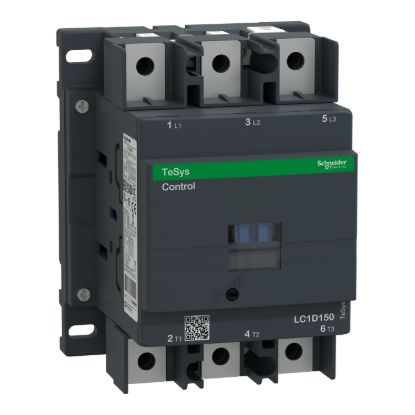

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 24V DC standard coil, lugs/bars terminals
