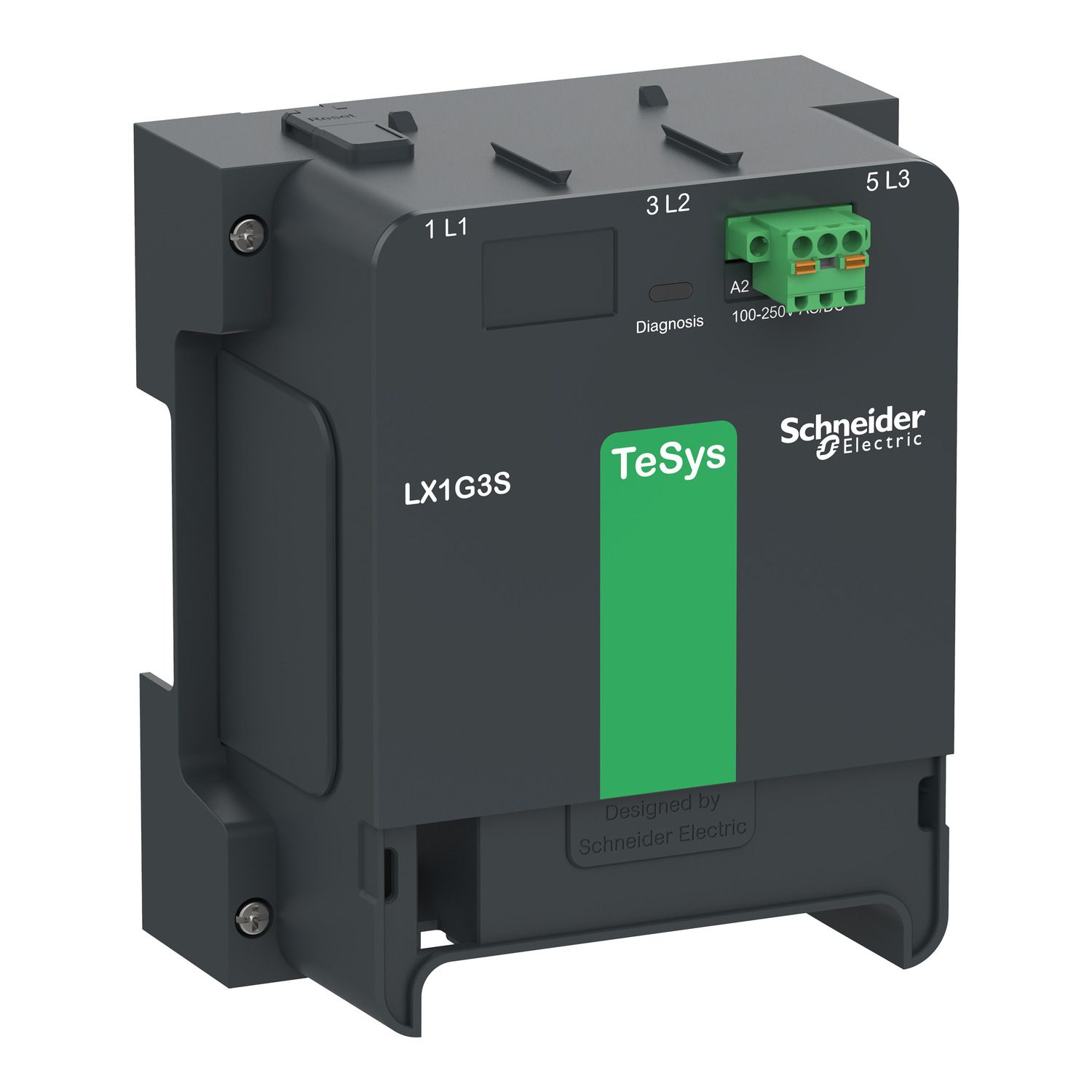

Picture of Control module,TeSys Giga,100-250V AC/DC,for LC1G400-500/3P standard version
SKU:

LX1G3SKUEN

Control module,TeSys Giga,100-250V AC/DC,for LC1G400-500/3P standard version

Old price: $1,861.20 INC GST
$1,172.56 INC GST
Available for Shipping : 15-Dec-2025
Control module,TeSys Giga,100-250V AC/DC,for LC1G400-500/3P standard version
  • AC/DC wide band electronic coil, more robust to voltage fluctuations and address different global voltage systems
  • Less number of references, simple to select, choose means less inventory
  • Coils are accessible from the front and maintained with very low down times
  • Low power consumption make significant savings on automation equipment, saves space and simplifies the diagrams
  • Advanced & Standard versions to address customer needs, PLC output control in Advanced version
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
  • Unique QR code provides quick access to complete product information
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
It is a 100-250V AC/DC control module for 3 poles TeSys Giga 400-500 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Related products

Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 400A, standard version, 100…250V wide band AC/DC coil

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 400A, standard version, 100…250V wide band AC/DC coil

LC1G400KUEN
$3,039.50 INC GST $4,824.60 INC GST
View Detail
Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 100…250V wide band AC/DC coil

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 100…250V wide band AC/DC coil

LC1G500KUEN
$4,559.94 INC GST $7,238.00 INC GST
View Detail
