Picture of Control module,TeSys Giga,200-500V AC/DC,for LC1G115-225/3P advanced version
SKU:

LX1G3QLSEA

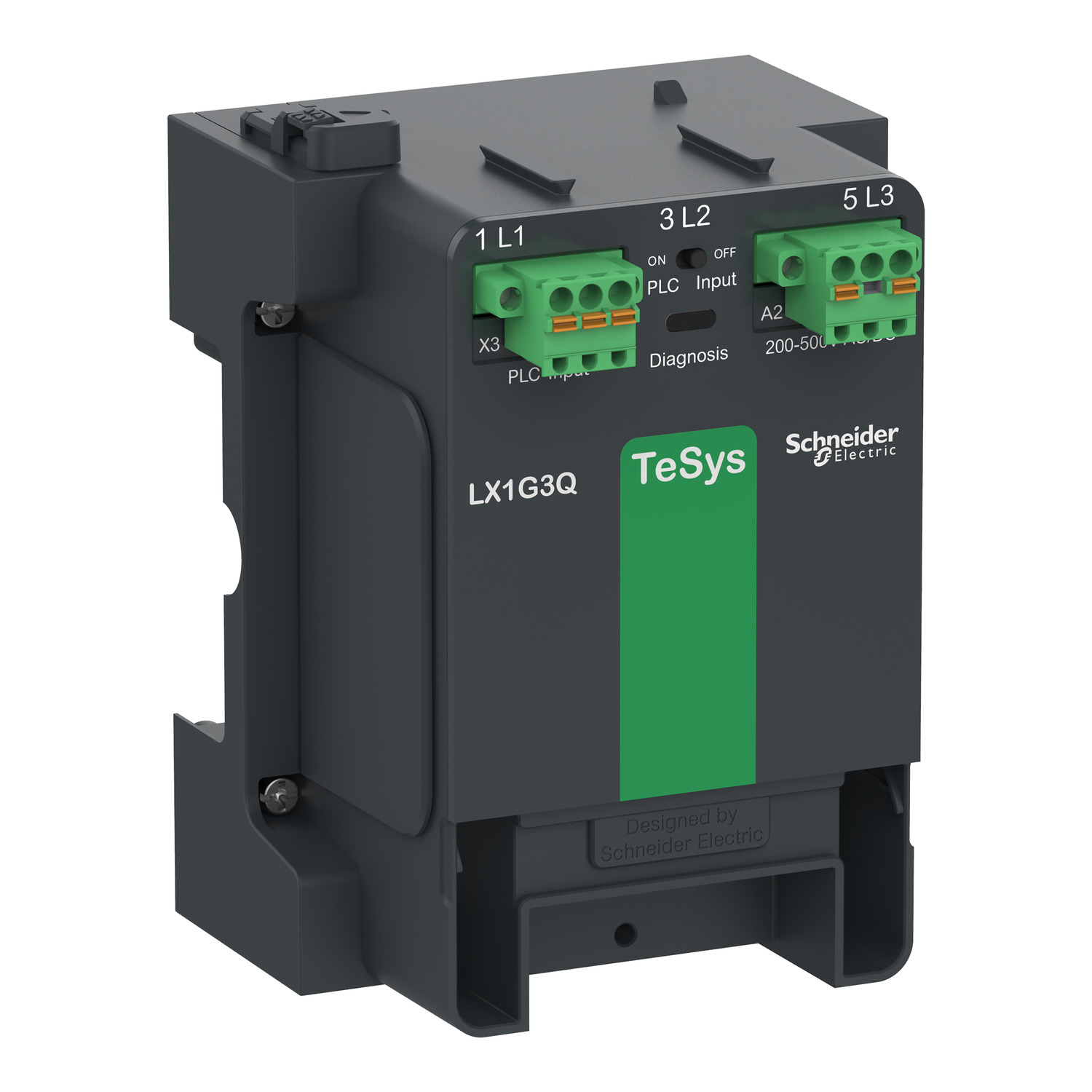

Control module,TeSys Giga,200-500V AC/DC,for LC1G115-225/3P advanced version

Old price: $1,196.80 INC GST
$753.98 INC GST
Available for Shipping : 15-Dec-2025
Control module,TeSys Giga,200-500V AC/DC,for LC1G115-225/3P advanced version
  • AC/DC wide band electronic coil, more robust to voltage fluctuations and address different global voltage systems
  • Less number of references, simple to select, choose means less inventory
  • Coils are accessible from the front and maintained with very low down times
  • Low power consumption make significant savings on automation equipment, saves space and simplifies the diagrams
  • Advanced & Standard versions to address customer needs, PLC output control in Advanced version
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
  • Unique QR code provides quick access to complete product information
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
It is a 200-500V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Products specifications

Attribute name Attribute value
Main
Mechanical durability 5 Mcycles
Device short name LX1G
Product compatibility LC1G115...225
Operating time 40...55 ms closing, 20...35 ms opening
Poles description 3P
Number of modules per PLC per PC 1
Maximum operating rate 600 cyc/mn 60 °C
Range TeSys
Product or component type contactor coil
Range compatibility TeSys G LX1G contactor coil
Range of product TeSys G
[Uc] control circuit voltage 200...500 V AC/DC 50/60 Hz
Complementary
Inrush power in W 155.0 W DC
Hold-in power consumption in VA 13.4-13.4 VA at 480 V AC, 60 Hz
Coil technology built-in bidirectional peak limiting
Connections - terminals control circuit: push-in termination 2 cable(s) 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18, control circuit: push-in termination 1 cable(s) 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14, control circuit: push-in termination 1 cable(s) 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12
Inrush power in VA 255-255 VA at 480 V AC, 60 Hz
Hold-in power consumption in W 3.4-3.4 W for DC network
Control circuit voltage limits drop-out: 0...0.45 Uc (at 60 °C), operational: 0.8...1.1 Uc (at 60 °C)
Environment
Permissible ambient air temperature around the device -40-70 °C at Uc
Depth 94.0 mm
Width 105.7 mm
Quantity per set 1
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to SEMI F47, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, emission tests criteria A conforming to IEC 60947-4-1, EMC immunity conforming to IEC 60947-4-1
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1A, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Height 144.5 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 22.000 cm
Package 1 Length 18.500 cm
Package 1 Weight 1.338 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.096 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 32.768 kg

Related products

Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 115A, advanced version, 200…500V wide band AC/DC coil

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 115A, advanced version, 200…500V wide band AC/DC coil

LC1G115LSEA
$1,337.49 INC GST $2,123.00 INC GST
View Detail
Picture of High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 150A, advanced version, 200…500V wide band AC/DC coil

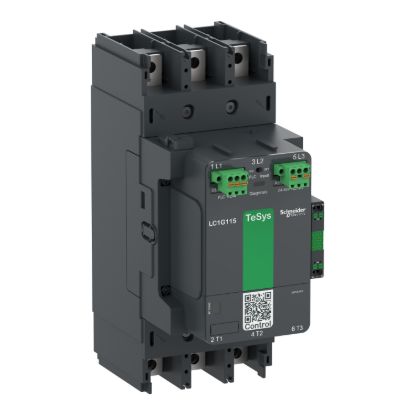

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 150A, advanced version, 200…500V wide band AC/DC coil
