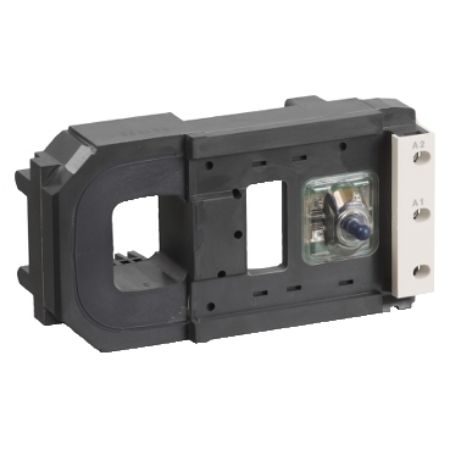

Picture of TeSys F - contactor coil - LX1FK - 110...120 V AC 40...400 Hz
SKU:

LX1FK110

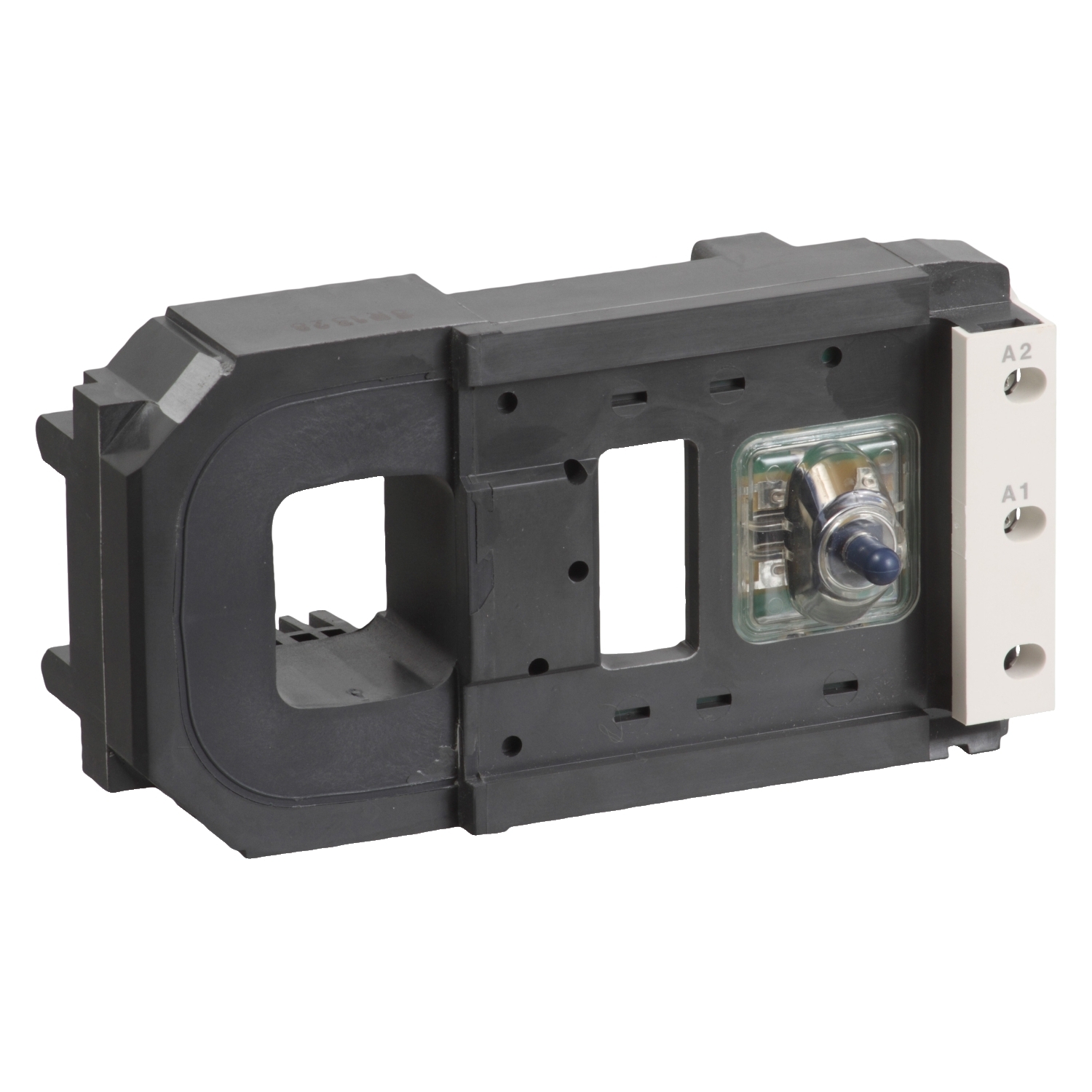

TeSys F - contactor coil - LX1FK - 110...120 V AC 40...400 Hz

Old price: $1,185.80 INC GST
$747.05 INC GST
Available for Shipping : 12-Jan-2026
TeSys F - contactor coil - LX1FK - 110...120 V AC 40...400 Hz
  • Stable performance: can operate on networks with harmonic numbers within 7
  • Low inrush consumption
  • Excellent durability with high operating rates up to 2400 cycles/hour
  • Green Premium compliant
  • Reliable performance under high temperature up to 55°C
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F500. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX1FK
Product compatibility LC1F500
Operating time 40...75 ms closing, 100...170 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 1.25 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type AC at 40...400 Hz
Range of product TeSys F
[Uc] control circuit voltage 110...120 V AC 40...400 Hz
Average resistance 260 Ohm holding at 20 °C, 9.55 Ohm inrush at 20 °C
Complementary
Heat dissipation 18-18 W at 40...400 Hz
Hold-in power consumption in VA 18-18 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 1100-1100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Control circuit voltage limits drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Environment
Net weight 1.15 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.6 cm
Package 1 Width 11.5 cm
Package 1 Length 22.6 cm
Package 1 Weight 1.258 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.989 kg
