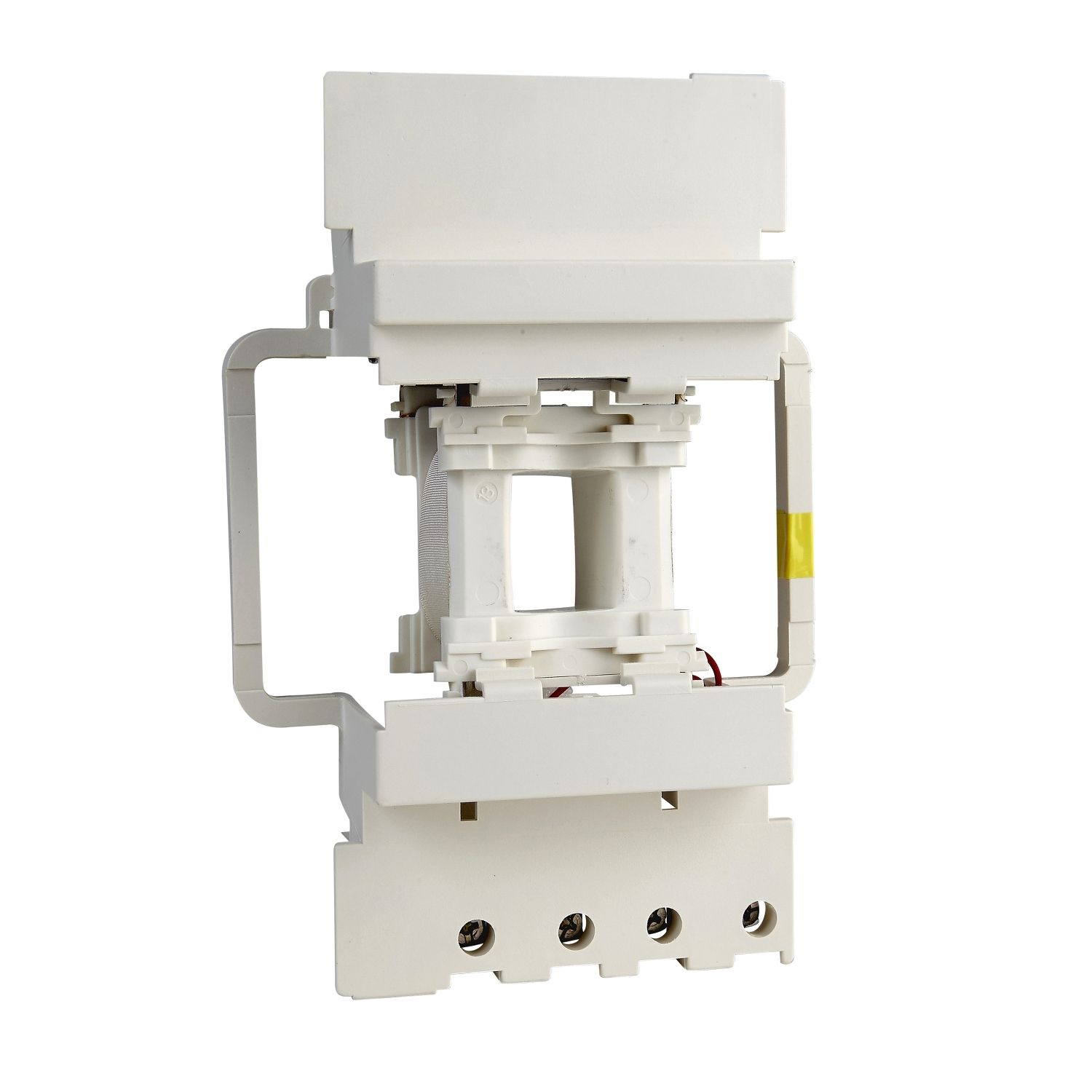

Picture of TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50 Hz for 115 A contactor
SKU:

LX1D8M5

TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50 Hz for 115 A contactor

Old price: $211.42 INC GST
$133.19 INC GST
Available for Shipping : 14-Jan-2026
TeSys; TeSys Deca, contactor coil, LX1D8, 220 V AC 50 Hz for 115 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is TeSys Deca replacement AC coil 220V 50Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D115. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX1D8
Product compatibility LC1D115
Mechanical durability 8 Mcycles
Maximum operating rate 2400 cyc/h 60 °C
Inductance of closed circuit 7.65 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 220 V AC 50 Hz
Average resistance 104.77 Ohm at 20 °C
Complementary
Heat dissipation 3-8 W at 50 Hz
Hold-in power consumption in VA 22-22 VA 50 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 300-300 VA 50 Hz cos phi 0.8 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)
Environment
Net weight 0.26 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 11.5 cm
Package 1 Length 17.0 cm
Package 1 Weight 264.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.817 kg

Related products

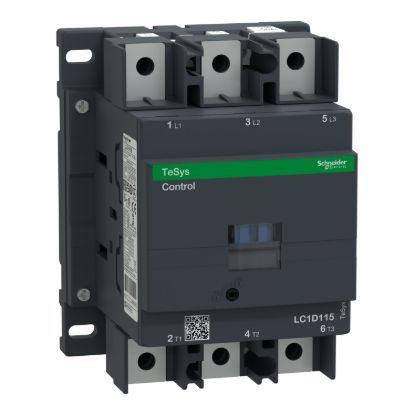

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, lugs/bars terminals
