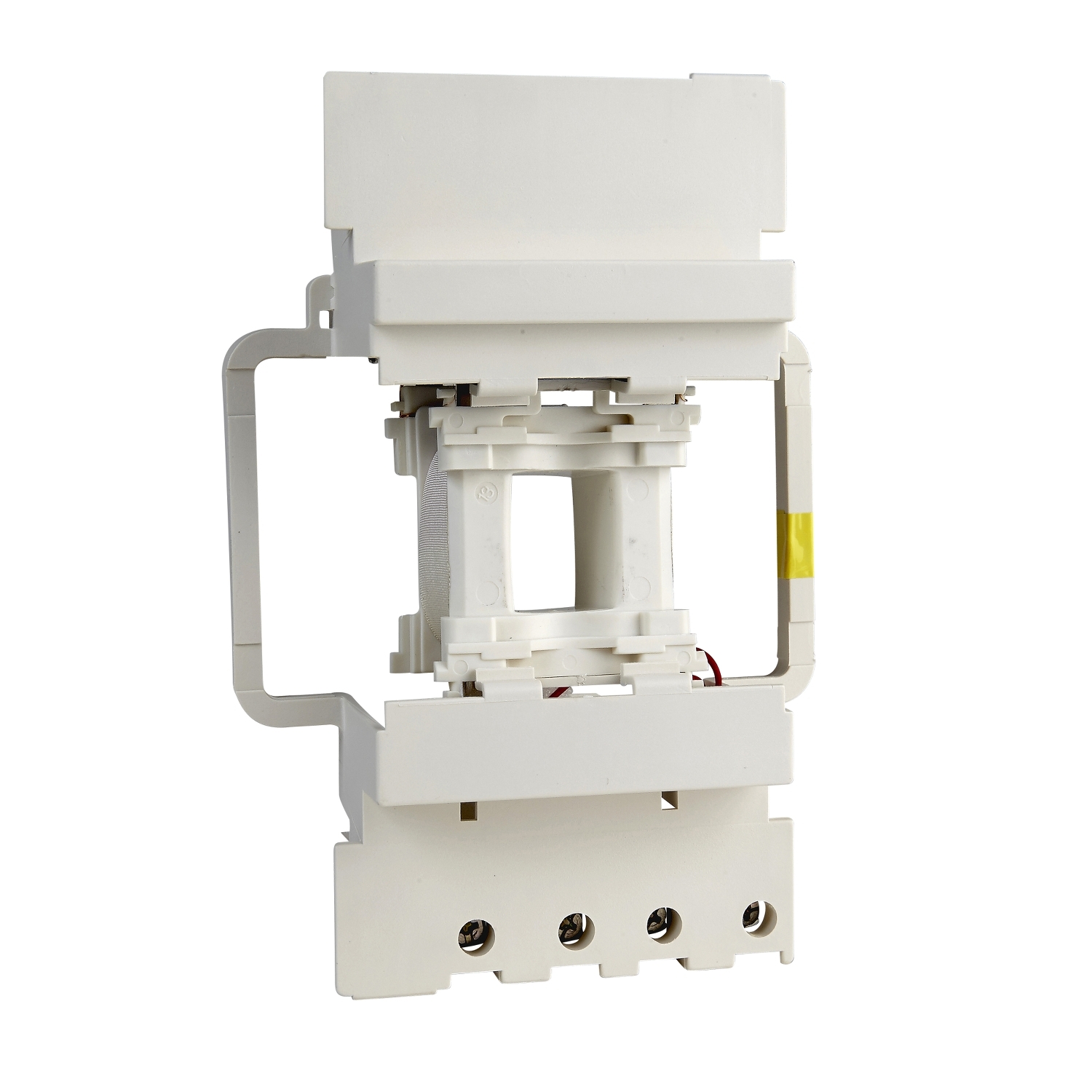

Picture of TeSys; TeSys Deca, contactor coil, LX1D8, 48 V AC 50/60 Hz for 115 & 150 A contactor
SKU:

LX1D8E7

TeSys; TeSys Deca, contactor coil, LX1D8, 48 V AC 50/60 Hz for 115 & 150 A contactor

Old price: $211.42 INC GST
$133.19 INC GST
Available for Shipping : 12-Jan-2026
TeSys; TeSys Deca, contactor coil, LX1D8, 48 V AC 50/60 Hz for 115 & 150 A contactor
  • Safe to use in circuit protection designed with integral suppression device
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D replacement AC coil 48V 50/60Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.8-1.15 Uc and environments until 55°C Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX1D8
Product compatibility LC1D115, LC1D150
Mechanical durability 8 Mcycles
Maximum operating rate 1200 cyc/h 60 °C
Inductance of closed circuit 24.19 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 48 V AC 50/60 Hz
Average resistance 1061 Ohm at 20 °C
Complementary
Heat dissipation 3-4.5 W at 50/60 Hz
Hold-in power consumption in VA 2-18 VA 50 Hz cos phi 0.9 (at 20 °C), 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 280-350 VA 50 Hz cos phi 0.9 (at 20 °C), 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
Control circuit voltage limits operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C), drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Environment
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 11.5 cm
Package 1 Length 17.0 cm
Package 1 Weight 296.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.633 kg

Related products

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals

LC1D115E7
$814.97 INC GST $1,293.60 INC GST
View Detail
Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48V AC 50/60Hz coil, lugs/bars terminals

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48V AC 50/60Hz coil, lugs/bars terminals

LC1D1506E7
$1,211.36 INC GST $1,922.80 INC GST
View Detail

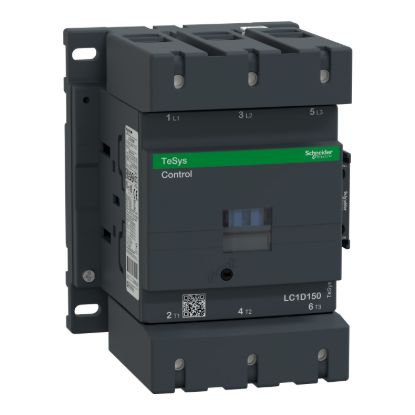

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48V AC 50/60Hz coil, screw clamp terminals
