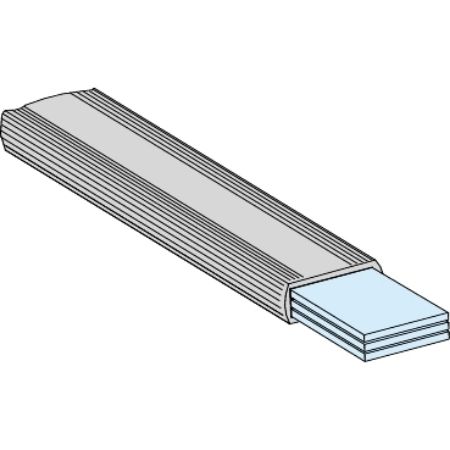

Picture of Insulated flexible bar, PrismaSeT P and G, 520 A, busbar size 32 x 5mm, length 1800mm, set of 1
SKU:

LVS04751

Insulated flexible bar, PrismaSeT P and G, 520 A, busbar size 32 x 5mm, length 1800mm, set of 1

$306.24 INC GST
Available for Shipping : 15-Dec-2025

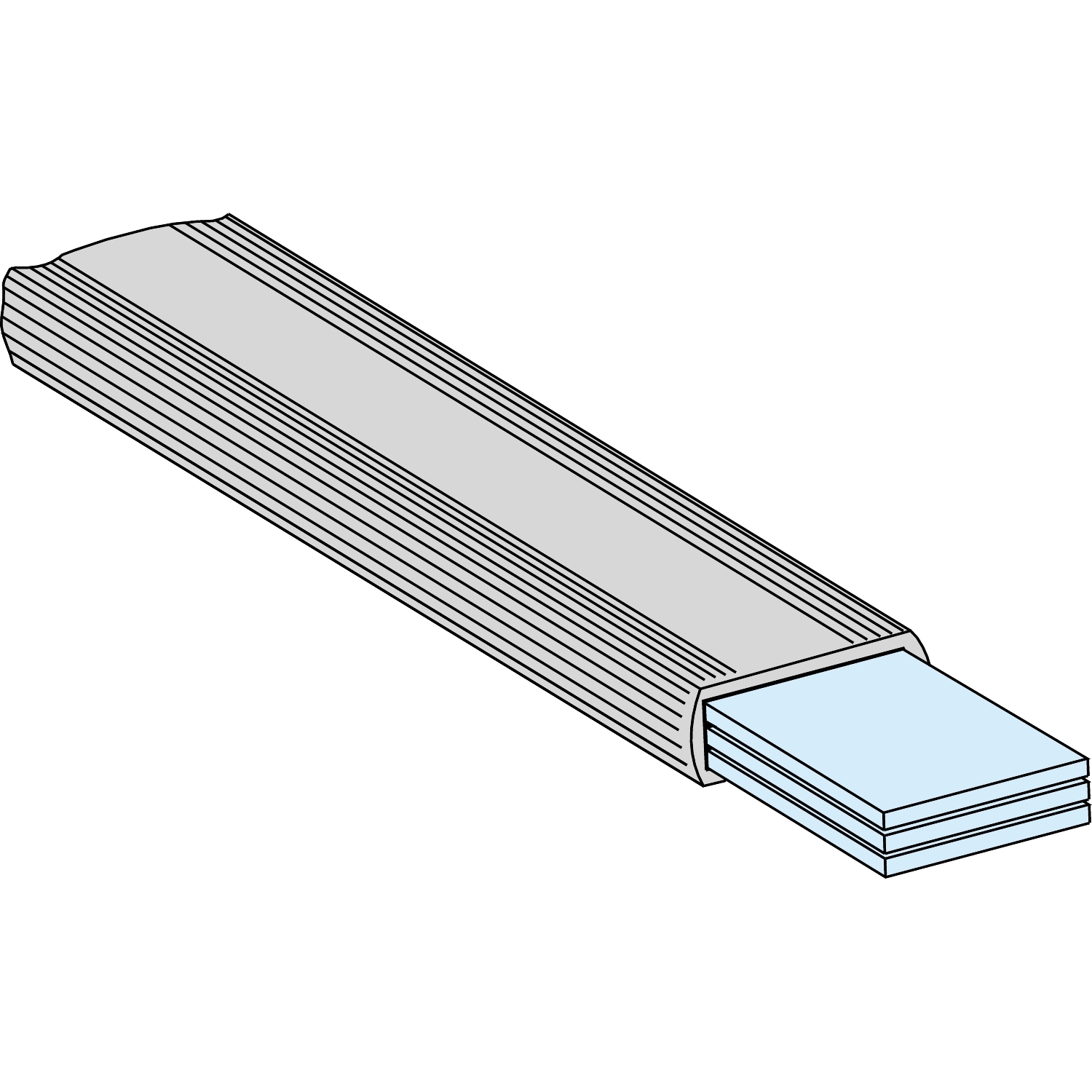

Insulated flexible bar, PrismaSeT P and G, 520 A, busbar size 32 x 5mm, length 1800mm, set of 1
  • Insulated flexible busbar with rated current 520A
  • Insulated flexible busbar size 32 x 5mm
  • The sizes for the flexible bars indicated below take into account the heat losses of PrismaSeT switchboard
  • Insulated flexible bars with length 1800mm
  • Maximum withstand temperature for the insulating material 125 °C
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
User guide
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Standards IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure
Range PrismaSeT
Product or component type insulated flexible bar
Accessory / separate part category current distribution accessory
Range compatibility PrismaSeT Prisma iPM M enclosure, PrismaSeT Prisma iPM L enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure
Range of product PrismaSeT P, PrismaSeT G
Product certifications ASTA
Complementary
Quantity per set set of 1
[Ie] rated operational current 520 A
Busbar cross section 32 x 5 mm
Net weight 3.38 kg
Length 1800 mm
Installed device ComPact: CVS400, ComPact: INV320...400, ComPact: INS320...400, ComPact: NSX400
Enclosure/cubicle description wall-mounted enclosure, floor-standing enclosure, cubicle
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 11.500 cm
Package 1 Length 193.500 cm
Package 1 Weight 3.278 kg
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 29.000 cm
Package 2 Width 120.000 cm
Package 2 Length 200.000 cm
Package 2 Weight 353.000 kg
