SKU:

LVS04568

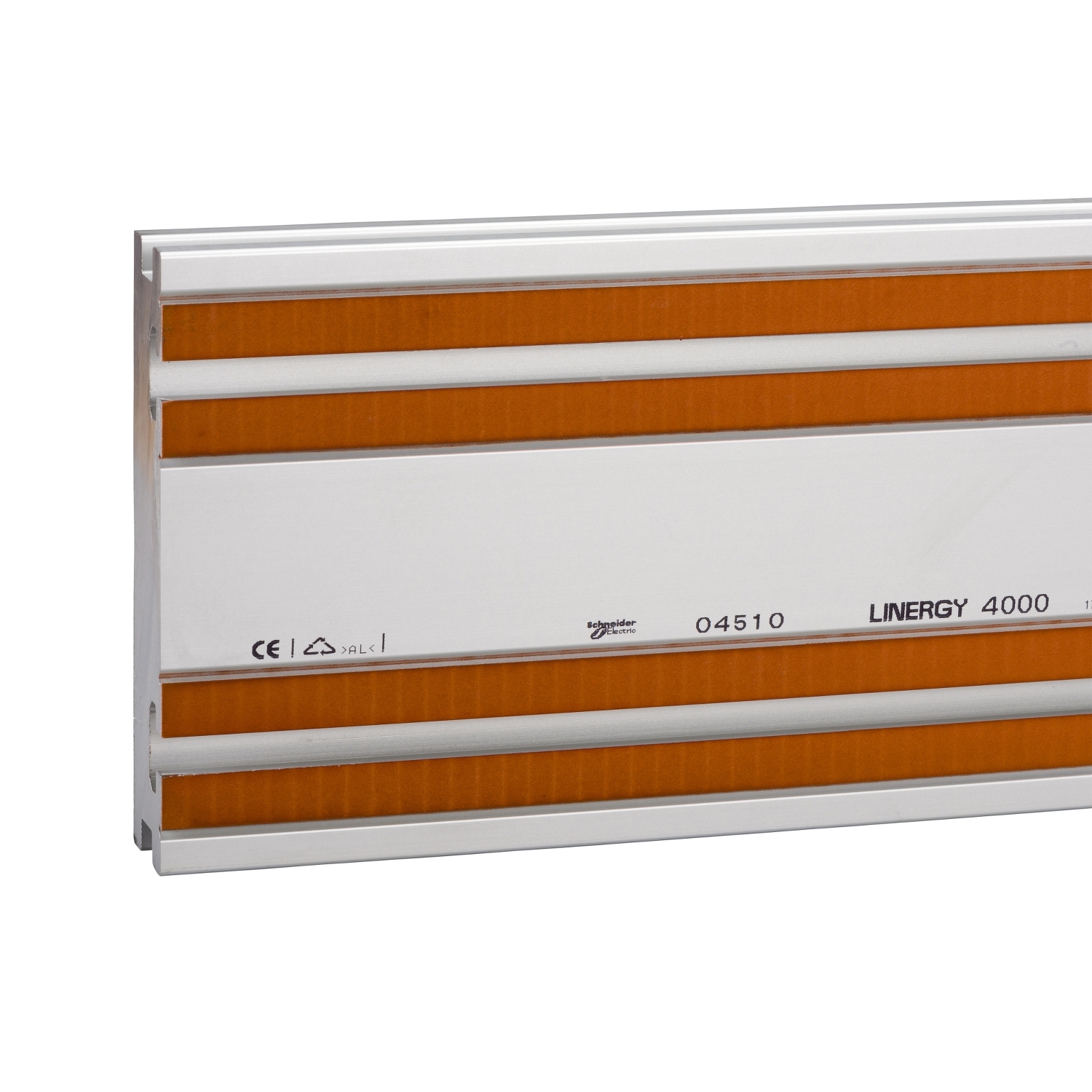

Profile busbar, Linergy LGYE, 4000A, for a horizontal installation, L2000mm

$1,843.43 INC GST

Qty:

Available for Shipping : 14-Jan-2026

Profile busbar, Linergy LGYE, 4000A, for a horizontal installation, L2000mm

Linergy Evolution's unique profile, provides performance that is backed by regular testing up to 4000A

Manufacturer: Schneider Electric

Delivery date: 14-Jan-2026

Catalog

User guide

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	set of 1
Busbar description	Linergy
Range	Linergy
Accessory / separate part category	busbar accessory
Range of product	Linergy
Product name	Linergy LGYE
Product or component type	profile busbar
Range compatibility	PrismaSeT PrismaSeT P enclosure
Complementary
[Icw] rated short-time withstand current	100 kA (1 s) for 4 supports (horizontal position), 85 kA (1 s) for 3 supports (horizontal position), 60 kA (1 s) for 2 supports (horizontal position)
Colour	natural
Compatibility code	busbar_evo
Installation direction	horizontal, operating position: bottom, horizontal, operating position: top
Enclosure/cubicle description	cubicle duct - width 400 mm, cubicle duct - width 300 mm, cubicle - width 650 + 150 mm, cubicle - width 650 mm
Height	200 mm
Depth	31 mm
Width	150 mm
Permissible current	3350 A at 35 °C: > IP31, 3620 A at 35 °C: <= IP31
[Ie] rated operational current	4000 A
[Ui] rated insulation voltage	1000 V
Connection pitch	free connection position
Type of busbar connection	double t-slot
[Uimp] rated impulse withstand voltage	12 kV (degree of pollution: 3)
Net weight	22.26 kg
Length	2000 mm
Environment
Standards	IEC 61439-1, IEC 61439-2
Product certifications	ASTA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.500 cm
Package 1 Width	15.800 cm
Package 1 Length	210.000 cm
Package 1 Weight	22.208 kg
Unit Type of Package 2	2
Number of Units in Package 2	18
Package 2 Height	26.500 cm
Package 2 Width	120.000 cm
Package 2 Length	202.000 cm
Package 2 Weight	424.774 kg
