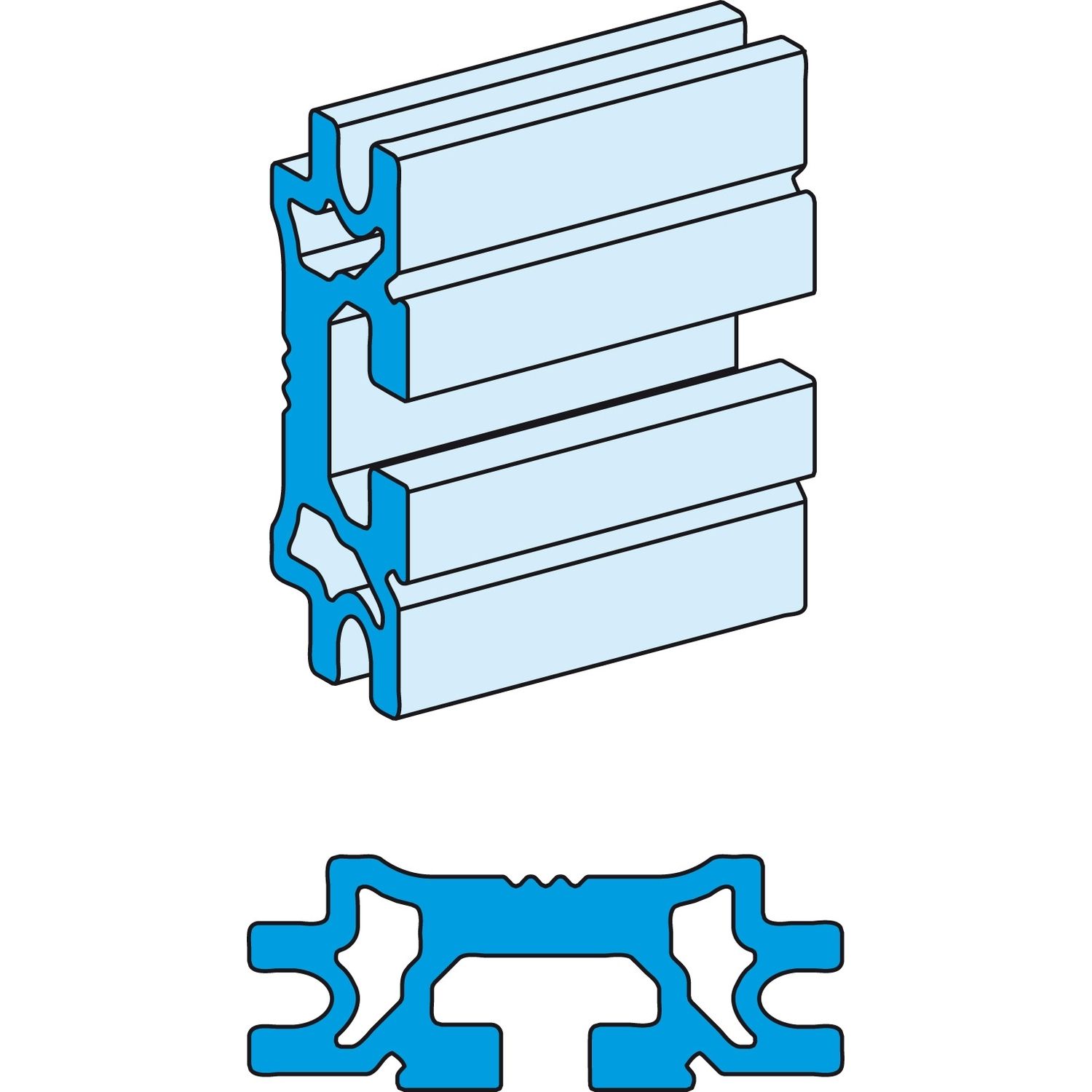

Picture of Profile busbar, Linergy LGYE, 1250A, for a horizontal installation, L2000mm
SKU:

LVS04563

Profile busbar, Linergy LGYE, 1250A, for a horizontal installation, L2000mm

$485.65 INC GST
Available for Shipping : 12-Jan-2026
Profile busbar, Linergy LGYE, 1250A, for a horizontal installation, L2000mm
  • Linergy LGYE Busbar Profiles
  • Busbar Profiles for horizonta installation
  • Number of profiles per phase single run
  • with busbar Profile length of L2000mm
  • Linergy Evolution's unique profile, provides performance that is backed by regular testing up to 4000A
  • Devices can be powered anywhere within the panel
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 1
Busbar description Linergy
Range Linergy
Accessory / separate part category busbar accessory
Range of product Linergy
Product name Linergy LGYE
Product or component type profile busbar
Range compatibility PrismaSeT PrismaSeT P enclosure
Complementary
[Icw] rated short-time withstand current 60 kA (1 s) for 3 supports (horizontal position), 50 kA (1 s) for 2 supports (horizontal position)
Colour natural
Compatibility code busbar_evo
Installation direction horizontal, operating position: bottom, horizontal, operating position: top
Enclosure/cubicle description cubicle duct - width 400 mm, cubicle duct - width 300 mm, cubicle - width 650 + 150 mm, cubicle - width 650 mm
Height 150 mm
Depth 23 mm
Width 60 mm
Permissible current 1050 A at 35 °C: > IP31, 1250 A at 35 °C: <= IP31
[Ie] rated operational current 1250 A
[Ui] rated insulation voltage 1000 V
Connection pitch free connection position
Type of busbar connection single t-slot
[Uimp] rated impulse withstand voltage 12 kV (degree of pollution: 3)
Net weight 2.54 kg
Length 2000 mm
Environment
Standards IEC 61439-2, IEC 61439-1
Product certifications ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 6.500 cm
Package 1 Length 210.000 cm
Package 1 Weight 4.053 kg
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 23.500 cm
Package 2 Width 120.000 cm
Package 2 Length 202.000 cm
Package 2 Weight 215.500 kg
