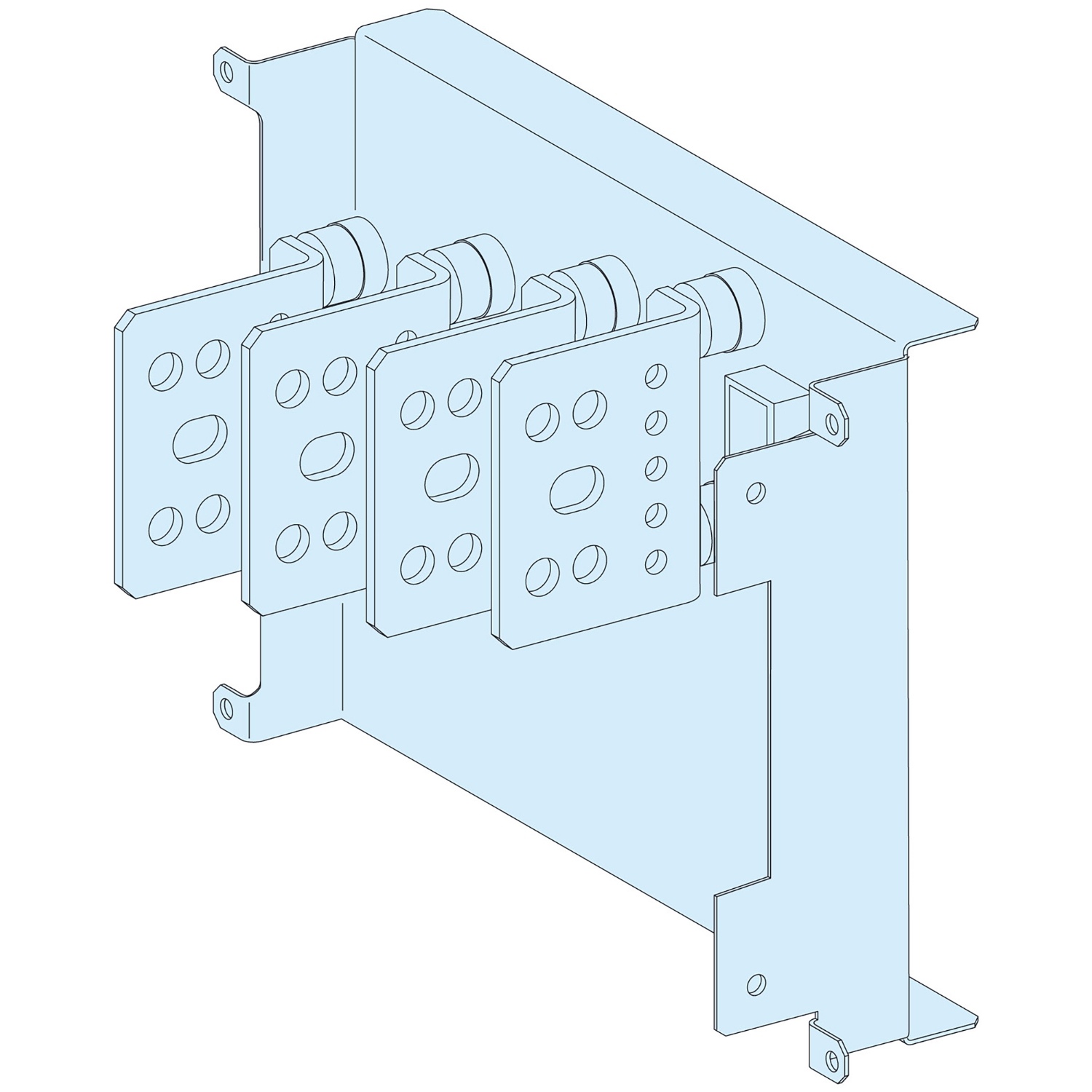

Picture of Connection transfer assembly, PrismaSeT P, universal In Duct 630A 4P
SKU:

LVS04460

Connection transfer assembly, PrismaSeT P, universal In Duct 630A 4P

$402.60 INC GST
Available for Shipping : 12-Jan-2026
Connection transfer assembly, PrismaSeT P, universal In Duct 630A 4P
  • Connection transfer assembly for PrismaSeT P
  • for Downstream distribution
  • Connection transfer assembly for universal In Duct 630A 4P
  • Devices can be powered anywhere within the panel
  • Connection everywhere without drilling
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Standards IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure
Range PrismaSeT
Product or component type connection transfer assembly
Accessory / separate part category current distribution accessory
Range compatibility PrismaSeT PrismaSeT P enclosure
Range of product PrismaSeT P
Product certifications ASTA
Complementary
Quantity per set set of 1
Poles description 4P
Enclosure/cubicle width 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 4P 1 direct 6 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 4P 1 direct 5
[Ie] rated operational current 630 A
Busbar cross section 32 x 6 mm
Net weight 3.82 kg
Installed device ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS400 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX400 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX400 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX630 without earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX400 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX630 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX400 without earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS630 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS400 without earth leakage protection - control: toggle horizontal installation
Enclosure/cubicle description cubicle - width 650 mm
Height 250 mm
Cubicle-device connection connection transfer assembly
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 27.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 3.791 kg
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 60.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 113.5 kg
