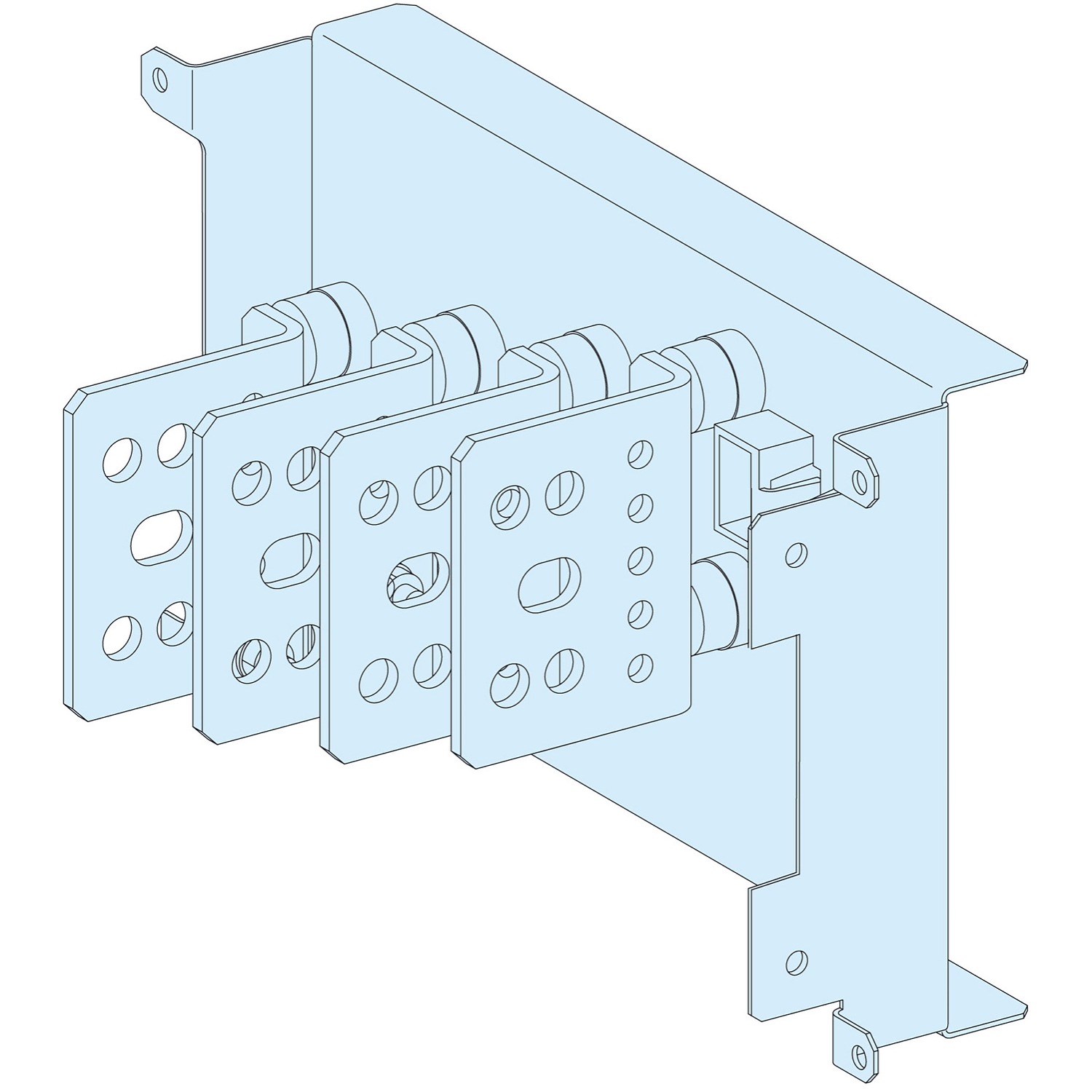

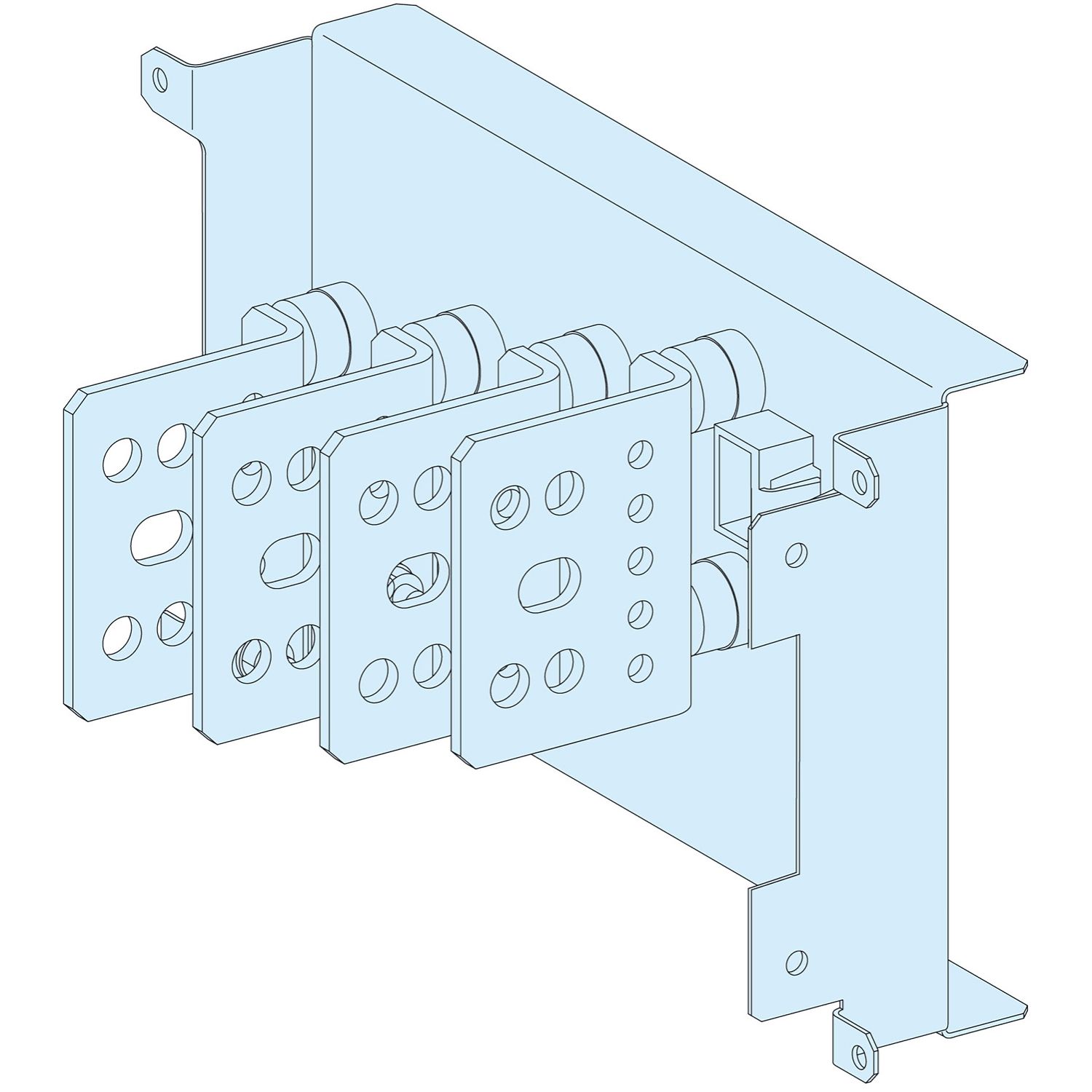

Picture of Connection transfer assembly, PrismaSeT P, universal in duct for 250A 4P, W650mm
SKU:

LVS04430

Connection transfer assembly, PrismaSeT P, universal in duct for 250A 4P, W650mm

$342.54 INC GST
Available for Shipping : 15-Dec-2025
Connection transfer assembly, PrismaSeT P, universal in duct for 250A 4P, W650mm
  • Connection transfer assembly for PrismaSeT P
  • connection with or without PowerTag NSX
  • for Downstream distribution
  • Compact and insulated multi-point distribution busbar up to 630 A. The best IPxxB solution in enclosures.
  • Devices can be powered anywhere within the panel
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Environmental Disclosure
User guide
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Standards IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure
Range PrismaSeT
Product or component type connection transfer assembly
Accessory / separate part category current distribution accessory
Range compatibility PrismaSeT PrismaSeT P enclosure
Range of product PrismaSeT P
Product certifications ASTA
Complementary
Quantity per set set of 1
Poles description 4P
Enclosure/cubicle width 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle horizontal 4P 1 direct 5 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 4P 1 direct 4 , 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 4P 1 direct 4
[Ie] rated operational current 250 A
Busbar cross section 20 x 3 mm
Net weight 3.56 kg
Installed device ComPact: plug-in NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: toggle horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism horizontal installation, ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation, EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation, EasyPact: fixed CVS250 with earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation, ComPact: plug-in NSX250 without earth leakage protection - control: toggle horizontal installation, ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS250 without earth leakage protection - control: toggle horizontal installation, EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX250 with earth leakage protection - control: toggle horizontal installation, ComPact: fixed NSX100...160 with earth leakage protection - control: toggle horizontal installation
Enclosure/cubicle description cubicle - width 650 mm
Height 200 mm
Cubicle-device connection connection transfer assembly
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 27.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 3.541 kg
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 93.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 171.0 kg
