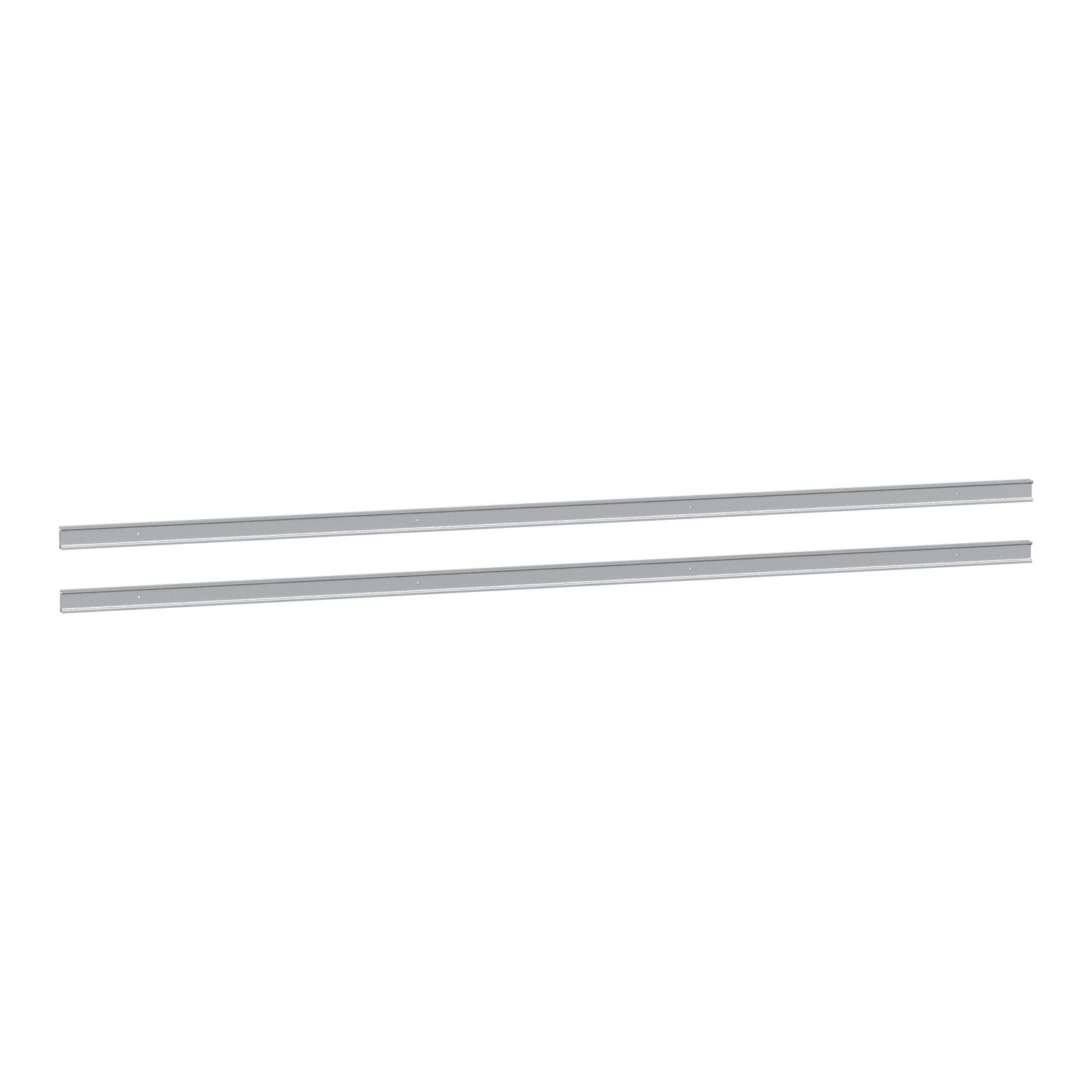

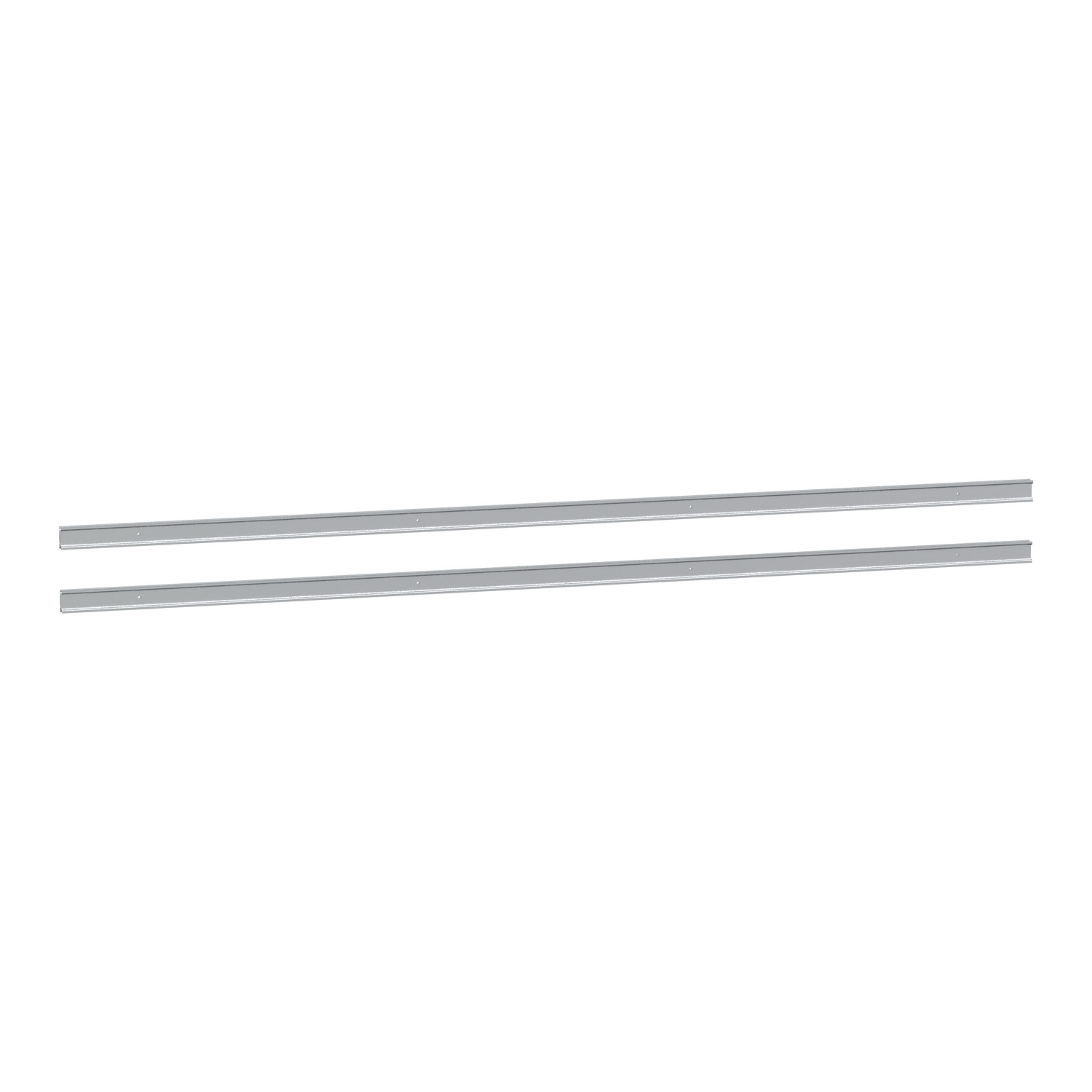

Picture of Rail, PrismaSeT G, for 2 modular device, L1600
SKU:

LVS04226

Rail, PrismaSeT G, for 2 modular device, L1600

$87.65 INC GST
Available for Shipping : 15-Dec-2025
Rail, PrismaSeT G, for 2 modular device, L1600
  • Rail for PrismaSeT G enclosure
  • Rail for 2 modular device
  • For enclosure W800 mm
  • Wall-mounted and floor-standing enclosures for electrical switchboards up to 630 A, Isc 50kA
  • Enclosures steel metal sheet with electrophoresis treatment and hot-polymerized polyester epoxy powder coating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
User guide
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Type of rail modular
Range PrismaSeT
Product or component type rail
Accessory / separate part category installation accessory
Installed device EasyPact: clip-on TVS GZ1E + LC1E09...E32 - control: push-button, EasyPact: clip-on TVS GZ1E - control: push-button, connection: terminal blocks, TeSys: clip-on LC1D09...D95, TeSys: clip-on GV2P + LC1D09...D32 - control: rotary knob, TeSys: clip-on GV2P - control: rotary knob, TeSys: clip-on GV2ME + LC1D09...D32 - control: push-button, TeSys: clip-on GV2ME - control: push-button, Multi9: fixed modular device, Acti 9: fixed modular device
Range compatibility PrismaSeT Prisma iPM M, PrismaSeT Prisma iPM L, PrismaSeT PrismaSeT P, PrismaSeT PrismaSeT G
Range of product Prisma iPM, PrismaSeT P, PrismaSeT G
Complementary
Depth 15 mm
Width 1600 mm
Colour natural
Quantity per set set of 2
Enclosure/cubicle width 600 mm Prisma iPM M cubicle EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 800 mm Prisma iPM M cubicle EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure EasyPact TVS GZ1E + LC1E09...E32 clip-on push-button 5 125 mm, 600 mm Prisma iPM M cubicle EasyPact TVS GZ1E clip-on push-button 3 75 mm, 800 mm Prisma iPM M cubicle EasyPact TVS GZ1E clip-on push-button 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure EasyPact TVS GZ1E clip-on push-button 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure EasyPact TVS GZ1E clip-on push-button 3 75 mm, 650 mm 400 mm PrismaSeT P cubicle connection terminal blocks, 600 mm PrismaSeT G wall-mounted enclosure connection terminal blocks, 600 mm PrismaSeT G floor-standing enclosure connection terminal blocks, 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device fixed 64 direct 12 149.5 mm, 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device fixed 48 direct 9 125 mm, 600 mm Prisma iPM M cubicle Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM M cubicle Multi9 modular device fixed 48 direct 9 225 mm, 800 mm Prisma iPM M cubicle Multi9 modular device fixed 64 direct 12 300 mm, 800 mm Prisma iPM M cubicle Multi9 modular device fixed 48 direct 9 225 mm, 600 mm Prisma iPM L wall-mounted enclosure Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM L floor-standing enclosure Multi9 modular device fixed 64 direct 12 300 mm, 600 mm Prisma iPM L wall-mounted enclosure Multi9 modular device fixed 48 direct 9 225 mm, 600 mm Prisma iPM L floor-standing enclosure Multi9 modular device fixed 48 direct 9 225 mm, 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device fixed 48 direct 9 125 mm, 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device fixed 64 direct 12 149.5 mm, 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device fixed 64 direct 12 149.5 mm, 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device fixed 48 direct 9 125 mm, 600 mm Prisma iPM M cubicle TeSys LC1D09...D95 clip-on 4 100 mm, 800 mm Prisma iPM M cubicle TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys LC1D09...D95 clip-on 4 100 mm, 600 mm Prisma iPM M cubicle TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 800 mm Prisma iPM M cubicle TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2P + LC1D09...D32 clip-on rotary knob 5 125 mm, 600 mm Prisma iPM M cubicle TeSys GV2P clip-on rotary knob 3 75 mm, 800 mm Prisma iPM M cubicle TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2P clip-on rotary knob 3 75 mm, 600 mm Prisma iPM M cubicle TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 800 mm Prisma iPM M cubicle TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2ME + LC1D09...D32 clip-on push-button 5 125 mm, 600 mm Prisma iPM M cubicle TeSys GV2ME clip-on push-button 3 75 mm, 800 mm Prisma iPM M cubicle TeSys GV2ME clip-on push-button 3 75 mm, 600 mm Prisma iPM L wall-mounted enclosure TeSys GV2ME clip-on push-button 3 75 mm, 600 mm Prisma iPM L floor-standing enclosure TeSys GV2ME clip-on push-button 3 75 mm
Net weight 1.3 kg
Material metal
Number of vertical modules [50 mm] 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widecubicle, 5 module(s): TVS GZ1E + LC1E09...E32 in 800 mm Widecubicle, 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widewall-mounted enclosure, 5 module(s): TVS GZ1E + LC1E09...E32 in 600 mm Widefloor-standing enclosure, 3 module(s): TVS GZ1E in 600 mm Widecubicle, 3 module(s): TVS GZ1E in 800 mm Widecubicle, 3 module(s): TVS GZ1E in 600 mm Widewall-mounted enclosure, 3 module(s): TVS GZ1E in 600 mm Widefloor-standing enclosure, 12 module(s): modular device, direct in 600 mm Widecubicle, 9 module(s): modular device, direct in 600 mm Widecubicle, 12 module(s): modular device, direct in 800 mm Widecubicle, 9 module(s): modular device, direct in 800 mm Widecubicle, 12 module(s): modular device, direct in 650 mm Widecubicle, 9 module(s): modular device, direct in 650 mm Widecubicle, 12 module(s): modular device, direct in 600 mm Widewall-mounted enclosure, 12 module(s): modular device, direct in 600 mm Widefloor-standing enclosure, 9 module(s): modular device, direct in 600 mm Widewall-mounted enclosure, 9 module(s): modular device, direct in 600 mm Widefloor-standing enclosure, 4 module(s): LC1D09...D95 in 600 mm Widecubicle, 4 module(s): LC1D09...D95 in 800 mm Widecubicle, 4 module(s): LC1D09...D95 in 600 mm Widewall-mounted enclosure, 4 module(s): LC1D09...D95 in 600 mm Widefloor-standing enclosure, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widecubicle, 5 module(s): GV2P + LC1D09...D32 in 800 mm Widecubicle, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widewall-mounted enclosure, 5 module(s): GV2P + LC1D09...D32 in 600 mm Widefloor-standing enclosure, 3 module(s): GV2P in 600 mm Widecubicle, 3 module(s): GV2P in 800 mm Widecubicle, 3 module(s): GV2P in 600 mm Widewall-mounted enclosure, 3 module(s): GV2P in 600 mm Widefloor-standing enclosure, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widecubicle, 5 module(s): GV2ME + LC1D09...D32 in 800 mm Widecubicle, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widewall-mounted enclosure, 5 module(s): GV2ME + LC1D09...D32 in 600 mm Widefloor-standing enclosure, 3 module(s): GV2ME in 600 mm Widecubicle, 3 module(s): GV2ME in 800 mm Widecubicle, 3 module(s): GV2ME in 600 mm Widewall-mounted enclosure, 3 module(s): GV2ME in 600 mm Widefloor-standing enclosure
Offer type standard
Enclosure/cubicle description cubicle - width 600 mm, cubicle - width 800 mm, cubicle - width 650 mm depth 400 mm, wall-mounted enclosure - width 600 mm, floor-standing enclosure - width 600 mm
Height 35 mm
Environment
Standards IEC 61439-2, IEC 61439-1
Product certifications ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 9.500 cm
Package 1 Length 178.000 cm
Package 1 Weight 1.286 kg
Unit Type of Package 2 2
Number of Units in Package 2 120
Package 2 Height 76.000 cm
Package 2 Width 120.000 cm
Package 2 Length 202.000 cm
Package 2 Weight 179.300 kg
