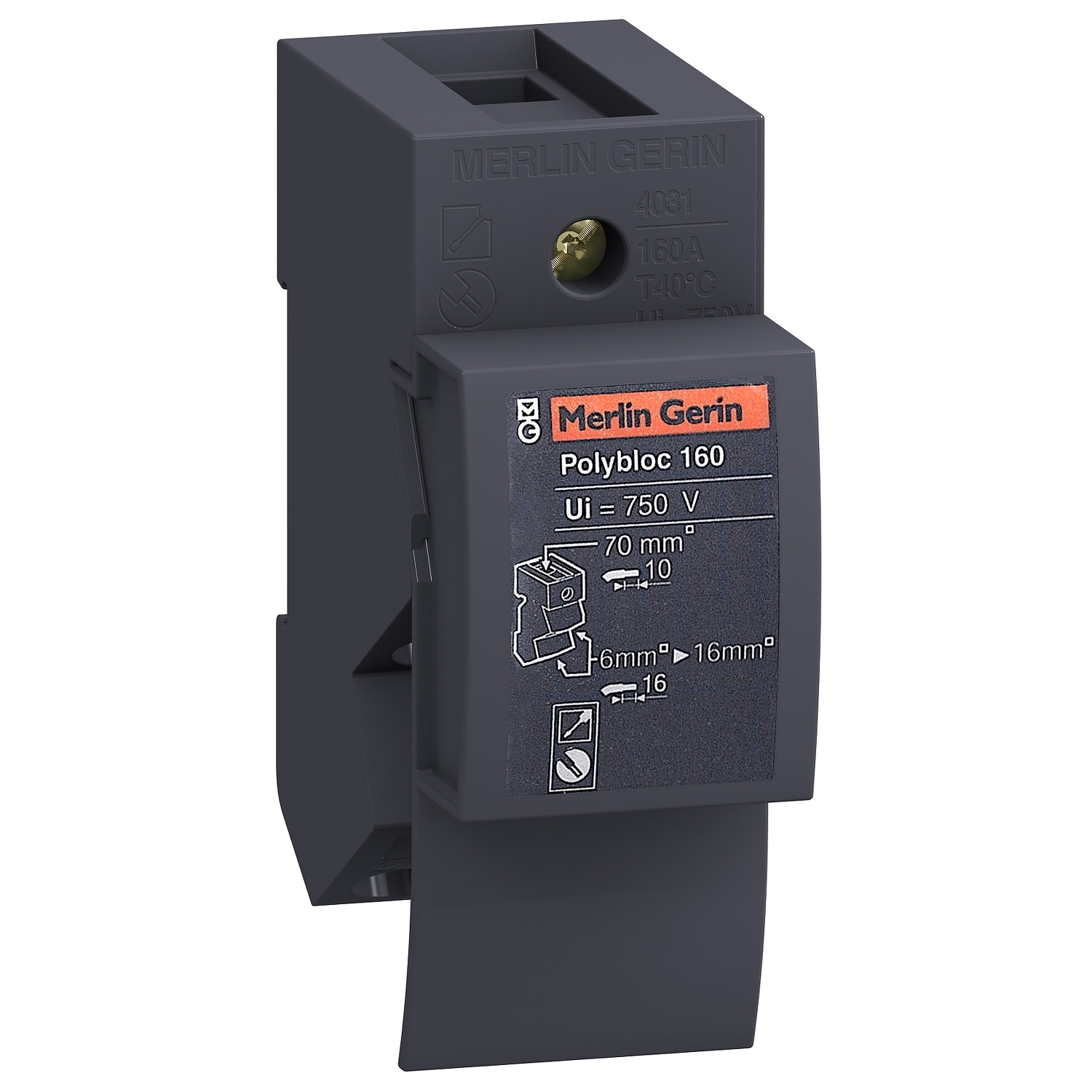

Picture of Distribution block, LINERGY DX, for ComPacT 1P, 160A, 4M 6holes
SKU:

LVS04031

Distribution block, LINERGY DX, for ComPacT 1P, 160A, 4M 6holes

$57.55 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Distribution block, LINERGY DX, for ComPacT 1P, 160A, 4M 6holes
  • Distribution block for Linergy DX
  • A reliable electrical connection, no maintenance required
  • Easy phase balancing
  • Rated operational current at 40° 1P 160A
  • Installated Onto DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
User guide
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IPxx B
Product compatibility Spacial enclosures
Range Linergy
Product name Linergy DX
Product or component type distribution block
Accessory / separate part category current distribution accessory
Range compatibility PrismaSeT PrismaSeT Pack 250 enclosure, PrismaSeT Prisma PH enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure
Range of product Linergy
Complementary
[Ipk] rated peak withstand current 24 kA
I²t on activation 30250000 A².s
[Icw] rated short-time withstand current 5.5 kA for 1 s
Depth 70 mm
Width 36 mm
Colour anthracite grey (RAL 7016)
[Uimp] rated impulse withstand voltage 8 kV
Compatibility code POLYBLOC
Poles description 1P
Enclosure/cubicle width 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 , 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 with fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 with fixed toggle 3P 1 direct 6 , 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 , 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 , 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 , 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Multi9 NG125 without fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 4P 1 direct 6 , 600 mm Prisma Pack 250 Pack enclosure Acti 9 C120 without fixed toggle 3P 1 direct 6 , 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 , 300 mm PrismaSeT G wall-mounted duct ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 300 mm PrismaSeT G floor-standing duct ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 , 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 , 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 , 300 mm PrismaSeT G wall-mounted duct ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 300 mm PrismaSeT G floor-standing duct ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 with fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 with fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 with fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 without fixed toggle 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact NG160 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact NG160 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 NA fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 NA fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 NA fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 NA fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Multi9 NG125 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Multi9 NG125 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct FuPact ISFT160 fixed fuse carriers handle vertical 3P 1 direct 6 , 300 mm PrismaSeT G floor-standing duct FuPact ISFT160 fixed fuse carriers handle vertical 3P 1 direct 6 , 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 rear connection on busbar 8 , 600 mm PrismaSeT G floor-standing enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 rear connection on busbar 8 , 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 direct 8 , 600 mm PrismaSeT G floor-standing enclosure FuPact ISFT160 fixed fuse carriers handle vertical 3P 4 direct 8 , 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 , 600 mm PrismaSeT G floor-standing enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 , 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 6 rear connection on busbar 8 , 600 mm PrismaSeT G floor-standing enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 6 rear connection on busbar 8 , 300 mm PrismaSeT G wall-mounted duct ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure FuPact INF100...160 fixed extended rotary handle vertical 4P 2 direct 7 , 600 mm PrismaSeT G floor-standing enclosure FuPact INF100...160 fixed extended rotary handle vertical 4P 2 direct 7 , 600 mm PrismaSeT G wall-mounted enclosure FuPact INF100...160 fixed extended rotary handle vertical 3P 2 direct 7 , 600 mm PrismaSeT G floor-standing enclosure FuPact INF100...160 fixed extended rotary handle vertical 3P 2 direct 7 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 iC120 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 without fixed toggle 4P 1 direct 4 , 300 mm PrismaSeT G wall-mounted duct Acti 9 C120 without fixed toggle 3P 1 direct 4 , 300 mm PrismaSeT G floor-standing duct Acti 9 C120 without fixed toggle 3P 1 direct 4 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 , 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 , 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5
[Ie] rated operational current 160 A
[Ui] rated insulation voltage 750 V AC
Net weight 0.1 kg
9 mm pitches 4
Installed device ComPact: fixed NSXm with earth leakage protection - control: toggle - horizontal installation, ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation, ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation, ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation, ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation, FuPact: fixed INF100...160 - control: extended rotary handle - vertical installation, ComPact: fixed NG160 NA without earth leakage protection - control: toggle, ComPact: fixed NG160 without earth leakage protection - control: toggle, ComPact: fixed NG160 with earth leakage protection - control: toggle, Multi9: fixed NG125 NA - control: toggle, Multi9: fixed NG125 without earth leakage protection - control: toggle, Multi9: fixed NG125 with earth leakage protection - control: toggle, FuPact: fixed ISFT100N - control: fuse carriers handle - vertical installation, FuPact: fixed ISFT160 - control: fuse carriers handle - vertical installation, ComPact: fixed INS160 - control: direct front rotary handle - vertical installation, ComPact: fixed INS125 - control: direct front rotary handle - vertical installation, ComPact: fixed INS100 - control: direct front rotary handle - vertical installation, ComPact: fixed INS63 - control: direct front rotary handle - vertical installation, ComPact: fixed INS40 - control: direct front rotary handle - vertical installation, Acti 9: fixed iC120 without earth leakage protection - control: toggle, Acti 9: fixed iC120 with earth leakage protection - control: toggle, Acti 9: fixed C120 without earth leakage protection - control: toggle, Acti 9: fixed C120 with earth leakage protection - control: toggle
Total number of 18 mm modules 2
Mounting support DIN rail
[Ue] rated operational voltage 690 V AC
Height 95 mm
[In] rated current 160 A at 40 °C
Connections - terminals distribution: spring terminal, 6 x 6-16 mm² (rigid) , distribution: spring terminal, 6 x 6-16 mm² (flexible) , supply: tunnel type terminal70-70 mm² (rigid) , supply: tunnel type terminal70-70 mm² (flexible)
Environment
Resistance to incandescent wire 960 °C conforming to IEC 60695-2-11
Standards IEC 60947-7-1, IEC 61439-2, inside enclosure, IEC 61439-1, inside enclosure
Pollution degree 3
Product certifications ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 5.6 cm
Package 1 Length 11.2 cm
Package 1 Weight 150 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 12.5 cm
Package 2 Width 5.3 cm
Package 2 Length 44.5 cm
Package 2 Weight 1.878 kg
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 12.5 cm
Package 3 Width 27.8 cm
Package 3 Length 44.5 cm
Package 3 Weight 9.421 kg
Unit Type of Package 4 4
Number of Units in Package 4 1260
Package 4 Height 99 cm
Package 4 Width 60 cm
Package 4 Length 80 cm
Package 4 Weight 204.8 kg
