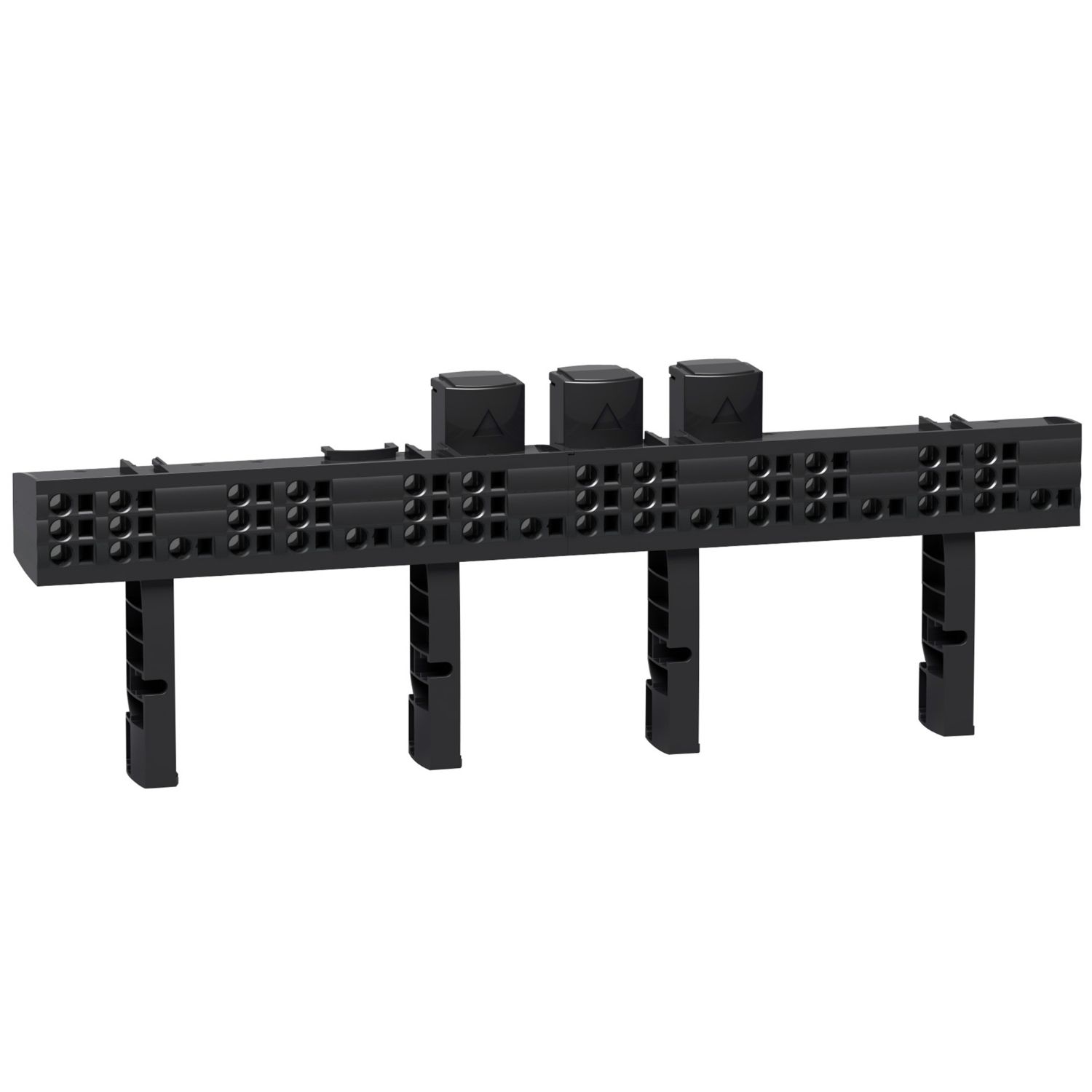

Picture of LINERGY FM 3P DIS.BLOCK 200A 24M 42HOLES
SKU:

LVS04013

LINERGY FM 3P DIS.BLOCK 200A 24M 42HOLES

$379.50 INC GST
Available for Shipping : 12-Jan-2026
LINERGY FM 3P DIS.BLOCK 200A 24M 42HOLES
  • Distribution block for Linergy FM
  • Distribution over full rows of modular devices
  • Direct onto the row by cable 50 mm2 with crimped lug or flexible bar 20 x 3
  • Rated current for Distribution block 3P 200A
  • Total flexibility for outgoers
  • Easy phases balancing, numerous solution for installation, IPxxB solution, up to 200 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IPxx B
Product compatibility Spacial enclosures
Range Linergy
Product name Linergy FM
Product or component type device feeder
Range compatibility PrismaSeT Prisma PH enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure
Range of product Linergy
Complementary
[Ipk] rated peak withstand current 20 kA
I²t on activation 6700000 A².s
Colour anthracite grey (RAL 7016)
[Uimp] rated impulse withstand voltage 8 kV
Compatibility code MULTICLIP
Poles description 3P
[Ie] rated operational current 200 A
[Ui] rated insulation voltage 750 V AC 50/60 Hz
Net weight 1.32 kg
9 mm pitches 48
Installed device modular device
Total number of 18 mm modules 24
Mounting support slotted backplate, DIN rail, plain backplate
[Ue] rated operational voltage 690 V AC
[In] rated current 200 A at 40 °C
Connections - terminals distribution: quick-connect terminal strips (neutral) , 18 x 4-10 mm² (rigid) , distribution: quick-connect terminal strips (neutral) , 18 x 4-10 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 12 x 4-10 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 12 x 4-10 mm² (flexible) , supply: flexible bars, 20 x 3 mm, supply: crimped lug50-50 mm²
Environment
Standards IEC 60947-7-1, IEC 61439-2, inside enclosure, IEC 61439-1, inside enclosure
Product certifications ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.9 cm
Package 1 Width 7.5 cm
Package 1 Length 44.5 cm
Package 1 Weight 1.271 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 6.7 cm
Package 2 Width 37.5 cm
Package 2 Length 44.5 cm
Package 2 Weight 6.369 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 96 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 159 kg
