SKU:

LV864922SP

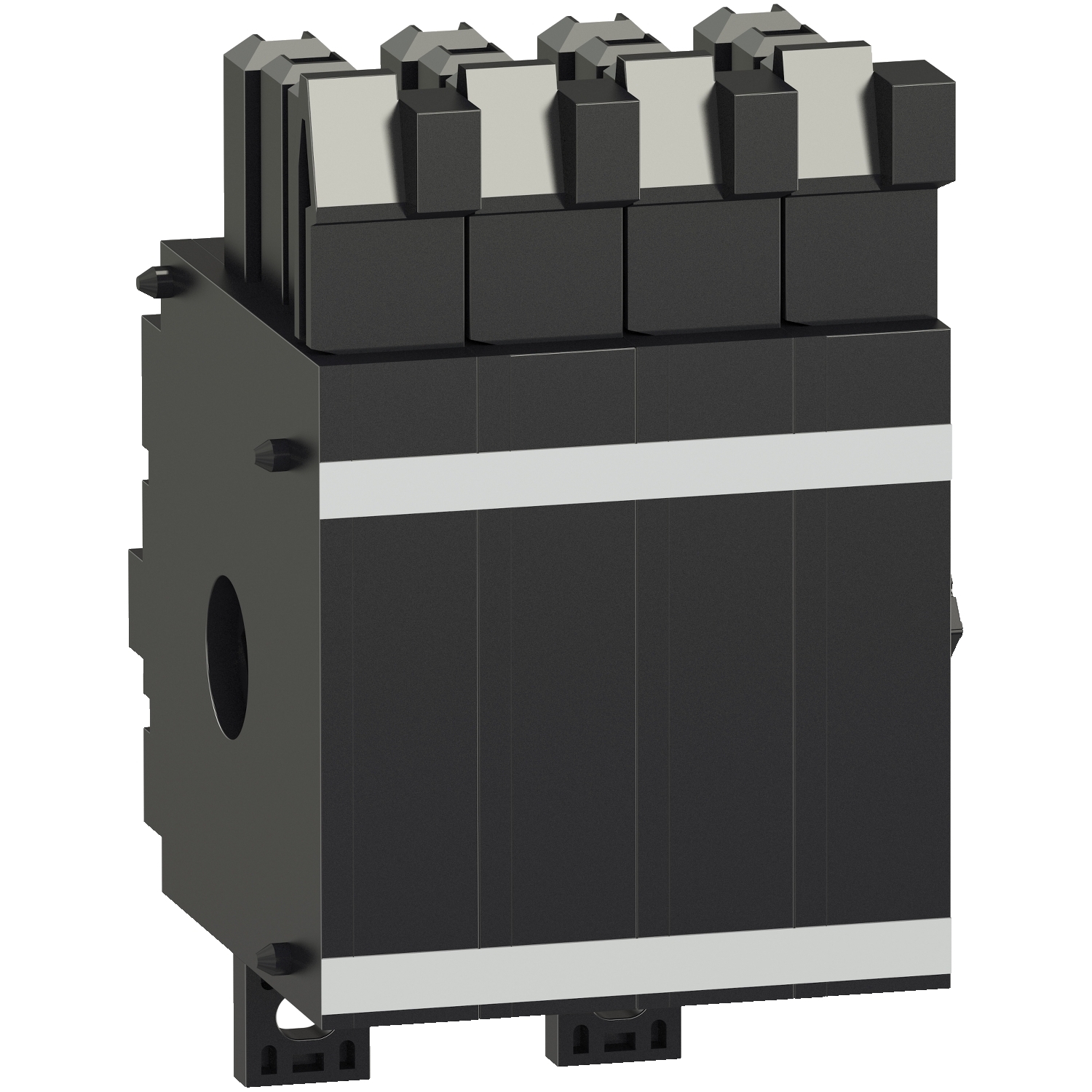

ON/OFF (OF) indication contact block, MasterPact MTZ2/MTZ3, 4 changeover contacts, standard, 6A/240VAC, spare part

Old price: $917.40 INC GST

Price: $733.92 INC GST

Qty:

Available for Shipping : 12-Jan-2026

ON/OFF (OF) indication contact block, MasterPact MTZ2/MTZ3, 4 changeover contacts, standard, 6A/240VAC, spare part

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Declaration of conformity

Instruction sheet

Catalog

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	4 OF
Device application	control
Range	MasterPacT
Product or component type	auxiliary contact block
Range compatibility	Masterpact MasterPact MTZ3, Masterpact MasterPact MTZ2
Complementary
Minimum load	2 mA at 15 V
[Ie] rated operational current	6 A at 250 V DC conforming to UL 489, 6 A at 600 V AC 50/60 Hz conforming to UL 489, 8 A at 480 V AC 50/60 Hz conforming to UL 489, DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2, AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2
Auxiliary contacts type	standard
Mounting mode	drawout, fixed
Signal contacts composition	4 NO/NC
Offer type	spare part
Provided equipment	1 instruction sheet
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	5.000 cm
Package 1 Length	5.000 cm
Package 1 Weight	104.800 g
Unit Type of Package 2	2
Number of Units in Package 2	26
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	3.425 kg
