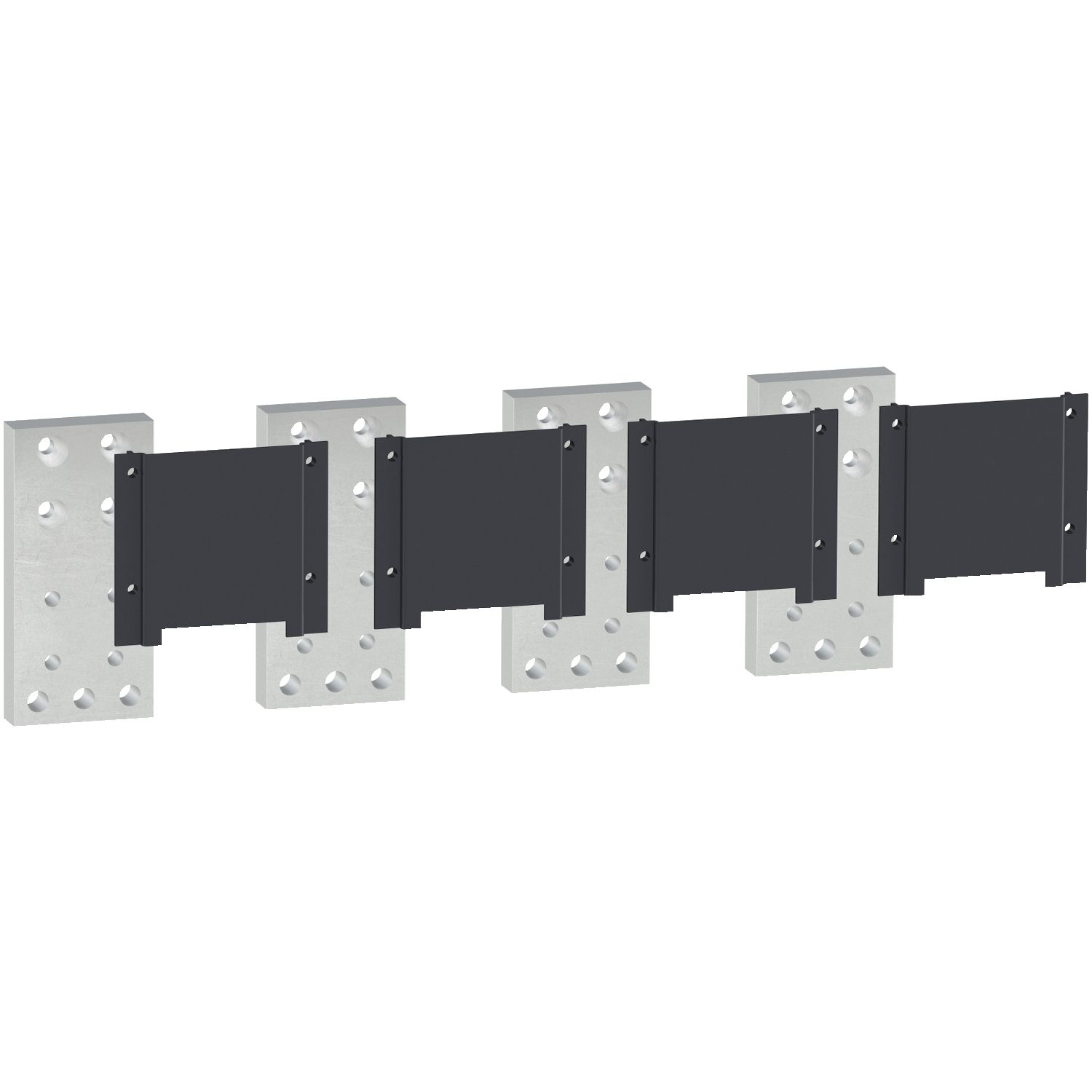

Picture of Front bottom connection, MasterPact MTZ2 fixed, 4P, 800A-1600A, spare part
Picture of Front bottom connection, MasterPact MTZ2 fixed, 4P, 800A-1600A, spare part
Picture of Front bottom connection, MasterPact MTZ2 fixed, 4P, 800A-1600A, spare part
SKU:

LV847933SP

Front bottom connection, MasterPact MTZ2 fixed, 4P, 800A-1600A, spare part

Old price: $555.50 INC GST
$444.40 INC GST
Available for Shipping : 22-Jan-2026
Front bottom connection, MasterPact MTZ2 fixed, 4P, 800A-1600A, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range MasterPacT
Product or component type front connection
[In] rated current 1600 A N2 fixed, 1600 A L1 fixed, 1600 A H1T fixed, 1250 A N2 fixed, 1250 A L1 fixed, 1250 A N1 fixed, 1000 A N2 fixed, 1000 A N1 fixed, 800 A N2 fixed, 800 A N1 fixed, 1600 A N1 fixed, 1600 A H2 fixed, 1600 A H1 fixed, 1250 A H2 fixed, 1250 A H1 fixed, 1000 A L1 fixed, 1000 A H2 fixed, 1000 A H1 fixed, 800 A L1 fixed, 800 A H2 fixed, 800 A H1 fixed
Accessory / separate part category connection accessory
Poles description 4P
Range compatibility Masterpact MasterPact MTZ2 MasterPact MTZ2 12 circuit-breaker, Masterpact MasterPact MTZ2 MasterPact MTZ2 10 circuit-breaker, Masterpact MasterPact MTZ2 MasterPact MTZ2 08 circuit-breaker, Masterpact MasterPact MTZ2 MasterPact MTZ2 16 circuit-breaker
Complementary
Product compatibility MasterPact MTZ2 08-16 N2, MasterPact MTZ2 16 H1T, MasterPact MTZ2 06-10 L1, MasterPact MTZ2 06-16 H2, MasterPact MTZ2 06-16 H1, MasterPact MTZ2 08-12 N1
Location of connection front
Offer type spare part
Localisation on device downside
Provided equipment 1 instruction sheet
Connection pitch 115 mm
Mounting mode fixed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.300 cm
Package 1 Width 13.300 cm
Package 1 Length 19.000 cm
Package 1 Weight 3.400 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 13.600 kg
