Picture of MicroLogic 7.0X control unit, MasterPact MTZ, spare part
SKU:

LV847604FS

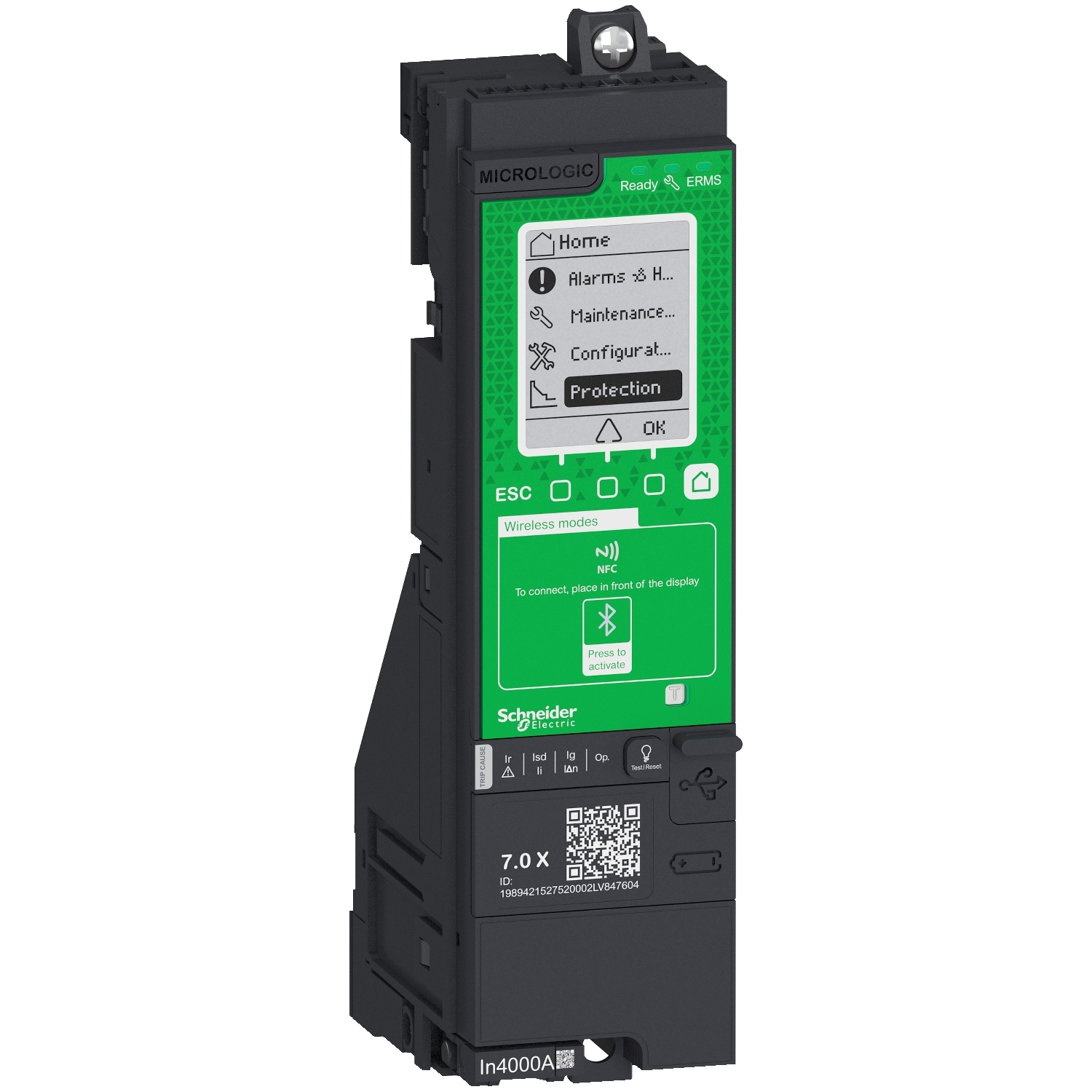

MicroLogic 7.0X control unit, MasterPact MTZ, spare part

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
MicroLogic 7.0X control unit, MasterPact MTZ, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name MicroLogic 7.0 X
Device application equipment protection, monitoring and control
Protection type earth-leakage protection conforming to ANSI 51G, short time short-circuit protection conforming to ANSI 51, instantaneous short-circuit protection conforming to ANSI 50, overload protection (long time) conforming to ANSI 49
Range MasterPacT
Protected poles description 4P 3d + OSN, 4P 4d, 4P 3d + N/2, 4P 3d, 3P 3d
Trip unit technology electronic
Poles description 3P, 4P
Circuit breaker application distribution IEC standard
Product or component type control unit
Trip unit rating 3200-3200 A, 2500-2500 A, 2000-2000 A, 1600-1600 A, 1250-1250 A, 1000-1000 A, 800-800 A, 630-630 A, 400-400 A
Range compatibility MasterPact MTZ2 circuit breaker, MasterPact MTZ1 circuit breaker
[Ue] rated operational voltage 600 V AC, +/- 10 %
Network type AC
Trip unit protection functions LSIV
Network frequency 50/60 Hz
Complementary
[Isd] short-time pick-up adjustment range 1.5...10 x Ir adjustable in step of 0.1 x Ir with Ecoreach software or MasterPact MTZ mobile app, 1.5...10 x Ir adjustable in step of 0.5 x Ir with embedded HMI
[IΔn] residual earth-leakage sensitive adjustment 0.5-30 A adjustable in step of 0.1 A
Energy management measurement ,energy, measurement ,electrical network, measurement ,active, reactive and apparent energy
Measurement accuracy unbalance current: +/- 0.5 %, earth leakage current: +/- 10 %, frequency: +/- 0.005 Hz, apparent energy Es IN/OUT/tot: +/- 1 %, reactive energy Ep IN/OUT/tot: +/- 2 %, active energy Ep IN/OUT/tot: +/- 1 %, power factor: +/- 2 %, apparent power S, S1, S2, S3, Sdemand: +/- 1 %, reactive power Q, Q1, Q2, Q3, Qdemand: +/- 2 %, active power P, P1, P2, P3, Pdemand: +/- 1 %, voltage V1N, V2N, V3N, VLNavg: +/- 0.5 % 120...400 x 1.2 V, voltage V12, V23, V31, VLLavg: +/- 0.5 % 208...690 x 1.2 V, ground fault current Ig: +/- 5 %, neutral current IN: +/- 1 %, current I1, I2, I3, Iavg, Idemand for MTZ3: +/- 0.5 % 80...6300 x 1.2 A, current I1, I2, I3, Iavg, Idemand for MTZ2: +/- 0.5 % 40...4000 x 1.2 A, current I1, I2, I3, Iavg, Idemand for MTZ1: +/- 0.5 % 40...1600 x 1.2 A
Operating time 20 ms in standard, 0 ms in fast
Neutral protection setting no protection (4P 3d), 1.6 x Ir (4P 3d + OSN), 0.5 x Ir (4P 3d + N/2), 1 x Ir (4P 4d)
Instantaneous pick-up adjustment range Ii enable on/off, 2...15 x In adjustable in step of 0.1 x In with Ecoreach software or MasterPact MTZ mobile app, 2...15 x In adjustable in step of 0.5 x In with embedded HMI
Short-time delay adjustment type adjustable
Metering type unbalance voltage, unbalance current, total voltage harmonic distortion THD (V), total current harmonic distortion THD (I), earth leakage current, phase sequence, frequency, demand power P, Q, S, demand current I1, I2, I3, In, Iavg, apparent energy Es IN/OUT/tot, reactive energy Eq IN/OUT/tot, active energy Ep IN/OUT/tot, power factor, apparent power S, S1, S2, S3 total, reactive power Q, Q1, Q2, Q3 total, active power P, P1, P2, P3 total, voltage V1N, V2N, V3N, VLNavg RMS, voltage V12, V23, V31, VLLavg RMS, ground fault current Ig RMS, neutral current IN RMS, current I1, I2, I3, Iavg RMS
Zone selective interlocking ZSI with
Display type LCD display - 128 x 96 pixels
Communication port protocol USB peer to peer 115 kbauds, NFC peer to peer 28800 bauds conforming to ISO 15963, Bluetooth 4.0 LE peer to peer 30 kbit/s
Frequency measurement range 40-70 Hz
Offer type spare part
Earth-leakage protection with
Thermal memory yes
Accuracy class class 2: total voltage harmonic distortion THD (V), class 1: active and reactive energy by pulse counting (+/- W.h, +/- VAR.h), class 0.5: unbalance voltage, class 5: total current harmonic distortion THD (I)
Residual earth-leakage time delay adjustment type adjustable
[Δt] residual earth-leakage time delay adjustment 140-1000 ms break time, 60-800 ms resettable time
Network and machine diagnosis type breaker service life: circuit breaker health state, operation: advanced diagnostic, trip context information: crisis management, selectivity test: test, protection test: test, MicroLogic test: test, operation: diagnostic data, monitored function: diagnostic data, configured alarms synthesis: diagnostic data, identification card: diagnostic data, tripping cause indication: circuit breaker tripping cause, MicroLogic service life: circuit breaker health state, contacts state: circuit breaker health state, system (HMI) health state overview: circuit breaker health state
Data recording time stamping, maintenance logs, min/max of instantaneous values, data logs, event logs, alarm logs
[tsd] short-time delay adjustment range 0-0.4 s I²t=off, 0.1-0.4 s I²t=on
[tr] long-time delay adjustment range 0.7-16.6 s at 7.2 x Ir, 0.5-24 s at 6 x Ir, 12.5-600 s at 1.5 x Ir
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type adjustable in step of 0.5 s
Long time pick-up adjustment range 0.4...1 x In adjustable in step of 1 A
Type of measurement power meter
Provided equipment 1 instruction sheet
Measurement voltage 120-480 V AC 50/60 Hz phase to neutral, 208-828 V AC 50/60 Hz phase to phase
Environment
Measurement category category IV conforming to IEC 61010-2-30
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Pollution degree 3 conforming to IEC 60947-1
Ambient air temperature for operation -35--35 °C (for start-up of product), -25-70 °C (operating)
Electromagnetic compatibility conducted and radiated emissions A conforming to CISPR 22, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge immunity test conforming to IEC 61000-4-2
Operating altitude <= 5000 m with operational voltage derating 560 V AC, <= 4000 m with operational voltage derating 600 V AC, <= 2000 m without derating
Overvoltage category IV conforming to IEC 61010-1
Mounting location indoor use only
Environmental characteristic wet location not approved for use conforming to IEC 61010-1
Standards EN/IEC 61010-1, EN/IEC 60947-2, EN/IEC 60255-1, EN/IEC 60092-202, EN/IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 6.5 cm
Package 1 Length 22.0 cm
Package 1 Weight 389.0 g
