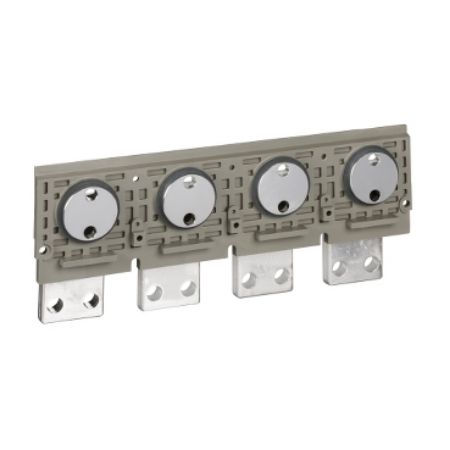

Picture of Front connection, MasterPact MTZ1 fixed, 4P, top and bottom, 630A-1600A, spare part
SKU:

LV847070SP

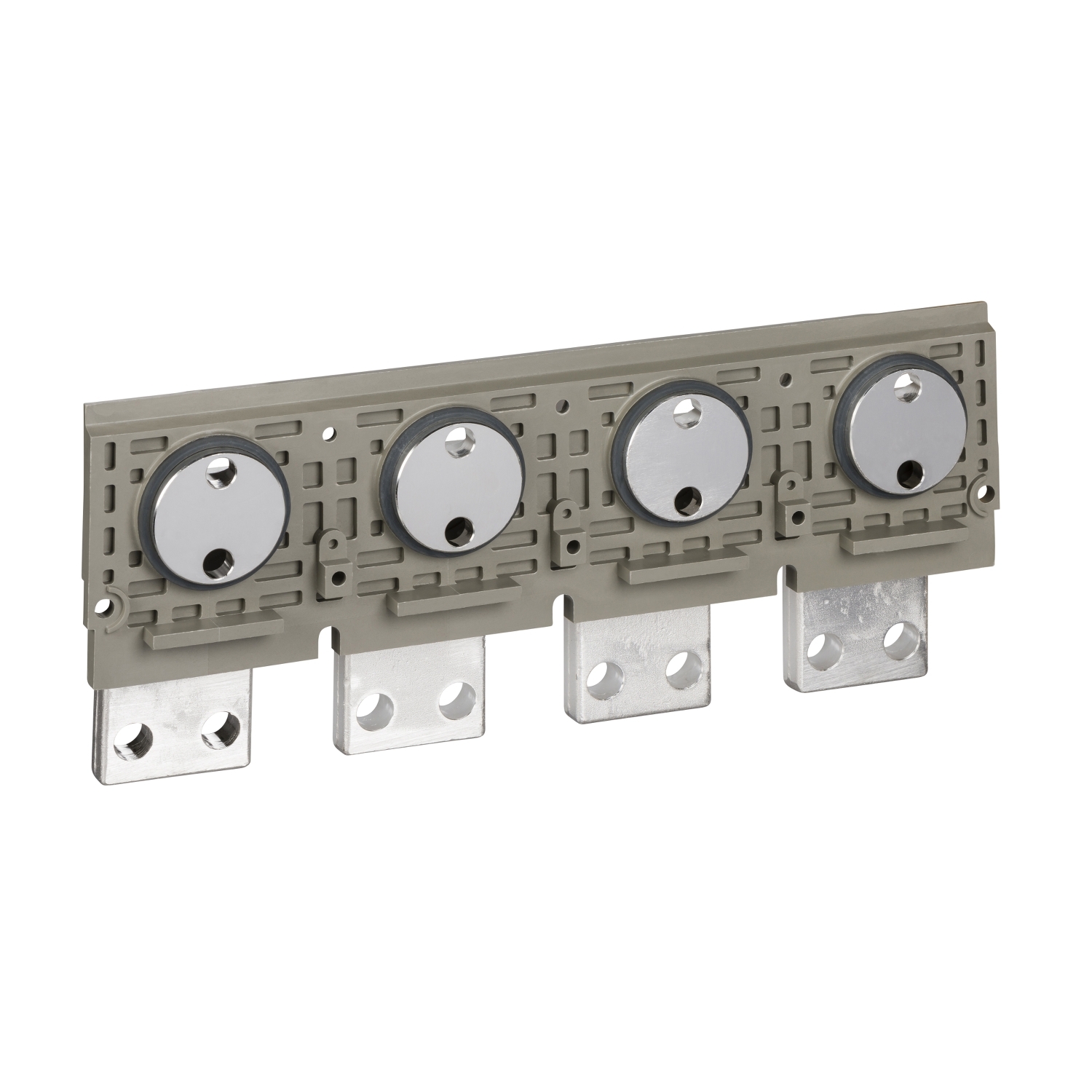

Front connection, MasterPact MTZ1 fixed, 4P, top and bottom, 630A-1600A, spare part

Old price: $1,117.60 INC GST
$894.08 INC GST
Available for Shipping : 16-Feb-2026
Front connection, MasterPact MTZ1 fixed, 4P, top and bottom, 630A-1600A, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Feb-2026
Instruction sheet
User guide
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range ComPacT
Product or component type front connection
[In] rated current 250 A H1 fixed, 1600 A H2T fixed, 1600 A H3 fixed, 1600 A H2 fixed, 1600 A H1 fixed, 1250 A H3 fixed, 1250 A H2 fixed, 1250 A H1 fixed, 1000 A L1 fixed, 1000 A H3 fixed, 1000 A H2 fixed, 1000 A H1 fixed, 800 A L1 fixed, 800 A H3 fixed, 800 A H2 fixed, 800 A H1 fixed, 630 A L1 fixed, 630 A H3 fixed, 630 A H2 fixed, 630 A H1 fixed
Accessory / separate part category connection accessory
Poles description 4P
Range compatibility Masterpact MasterPact MTZ1 MasterPact MTZ1 16 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 12 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 10 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 08 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 06 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 02 circuit-breaker
Complementary
Product compatibility MasterPact MTZ1 06-10 L1, MasterPact MTZ1 06-16 H3, MasterPact MTZ1 16 H2T, MasterPact MTZ1 06-16 H2, MasterPact MTZ1 06-16 H1
Location of connection front
Offer type spare part
Localisation on device upside, downside
Provided equipment 1 instruction sheet
Connection pitch 70 mm
Mounting mode fixed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 13.000 cm
Package 1 Length 36.000 cm
Package 1 Weight 2.867 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.067 kg
