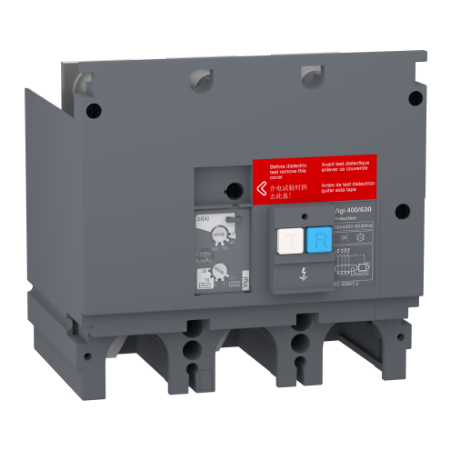

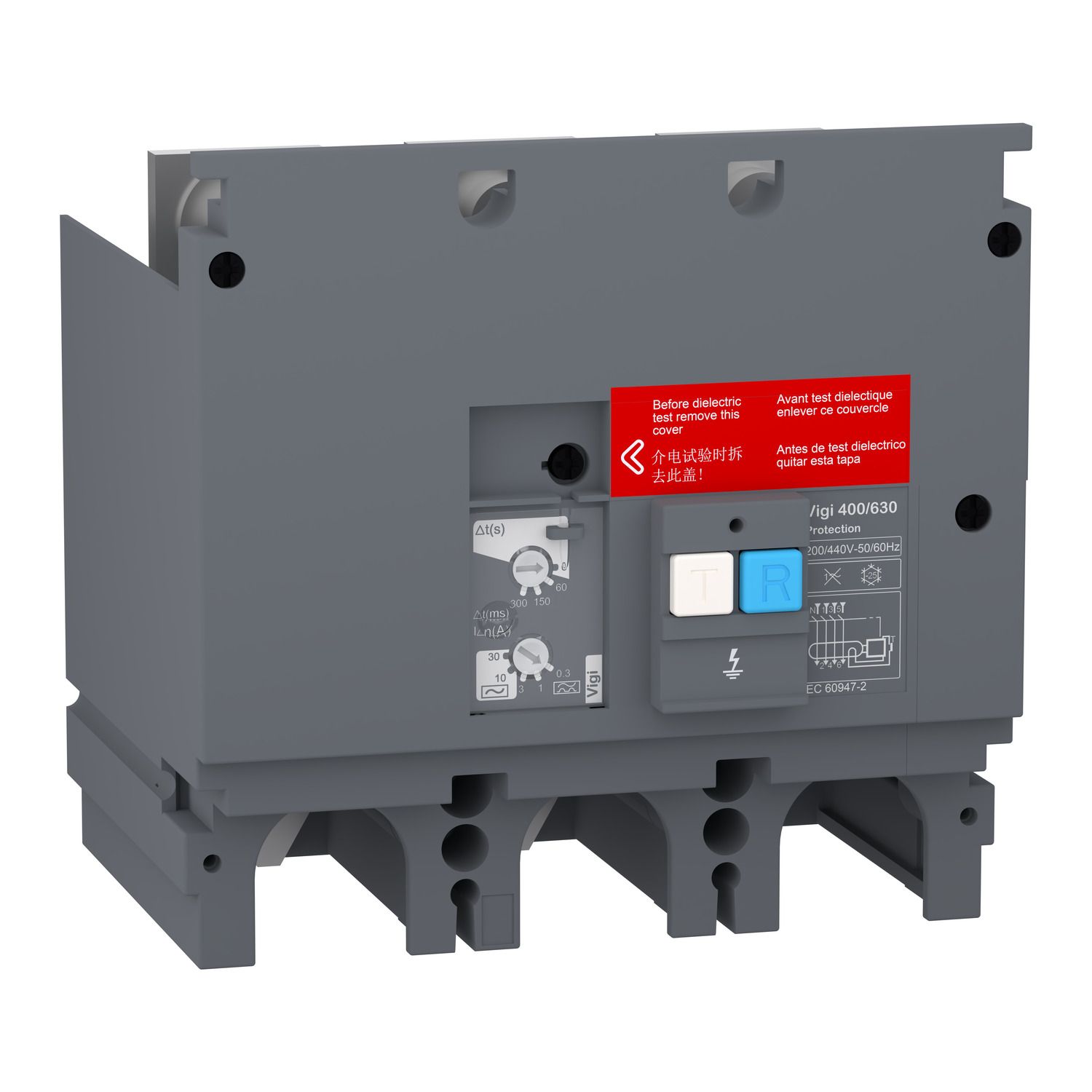

Picture of Earth-leakage add-on protection module, EasyPact CVS 400/630, 200VAC to 440VAC, 30mA to 30A, 3 poles
SKU:

LV532464

Earth-leakage add-on protection module, EasyPact CVS 400/630, 200VAC to 440VAC, 30mA to 30A, 3 poles

$3,813.92 INC GST
Available for Shipping : 11-May-2026
Earth-leakage add-on protection module, EasyPact CVS 400/630, 200VAC to 440VAC, 30mA to 30A, 3 poles
  • Provides reliable earth-leakage protection to ensure circuit safty
  • Easy & flexible installaiton and maintance thanks to add-on modular design
  • Wide range of application with adjustable earth-leakage sensitivity
  • High dependence with self-powered, guarantee normal serice even circuit fault
  • Green premium product: environmental friendly
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 11-May-2026
Environmental Disclosure
CAD
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This is a Vigi add-on module for EasyPact CVS 400/630 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

Products specifications

Attribute name Attribute value
Main
Residual earth-leakage time delay adjustment type adjustable 4 settings
Device application wiring
Poles description 3P
Residual earth-leakage sensitity adjustment type adjustable
Range EasyPact
[Δt] residual earth-leakage time delay adjustment 300-300 ms, 150-150 ms, 60-60 ms, 0-0 ms
Product or component type Vigi add-on
Earth-leakage sensitivity 30 A for class AC, 10 A for class AC, 3 A for class A, 1 A for class A, 0.3 A for class A
Earth-leakage protection class class AC, class A
Range compatibility EasyPact EasyPact CVS630 circuit breaker, EasyPact EasyPact CVS400 circuit breaker
Range of product EasyPact CVS400...630
[In] rated current 630 A, 400 A
Complementary
Overvoltage category II
Maximum breaking time 800 ms
Network type AC
Earth-leakage protection with
[Ue] rated operational voltage 200...440 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Environment
Electrical shock protection class class II
Standards IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 17 cm
Package 1 Length 19.5 cm
Package 1 Weight 2.685 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 16.773 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 45 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 79.092 kg

Related products

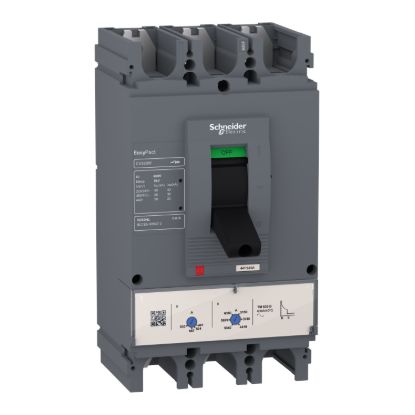

Picture of circuit breaker, EasyPact CVS400F, 36kA at 415VAC, 400A, TM-D trip unit, 3P3d
