SKU:

LV525425

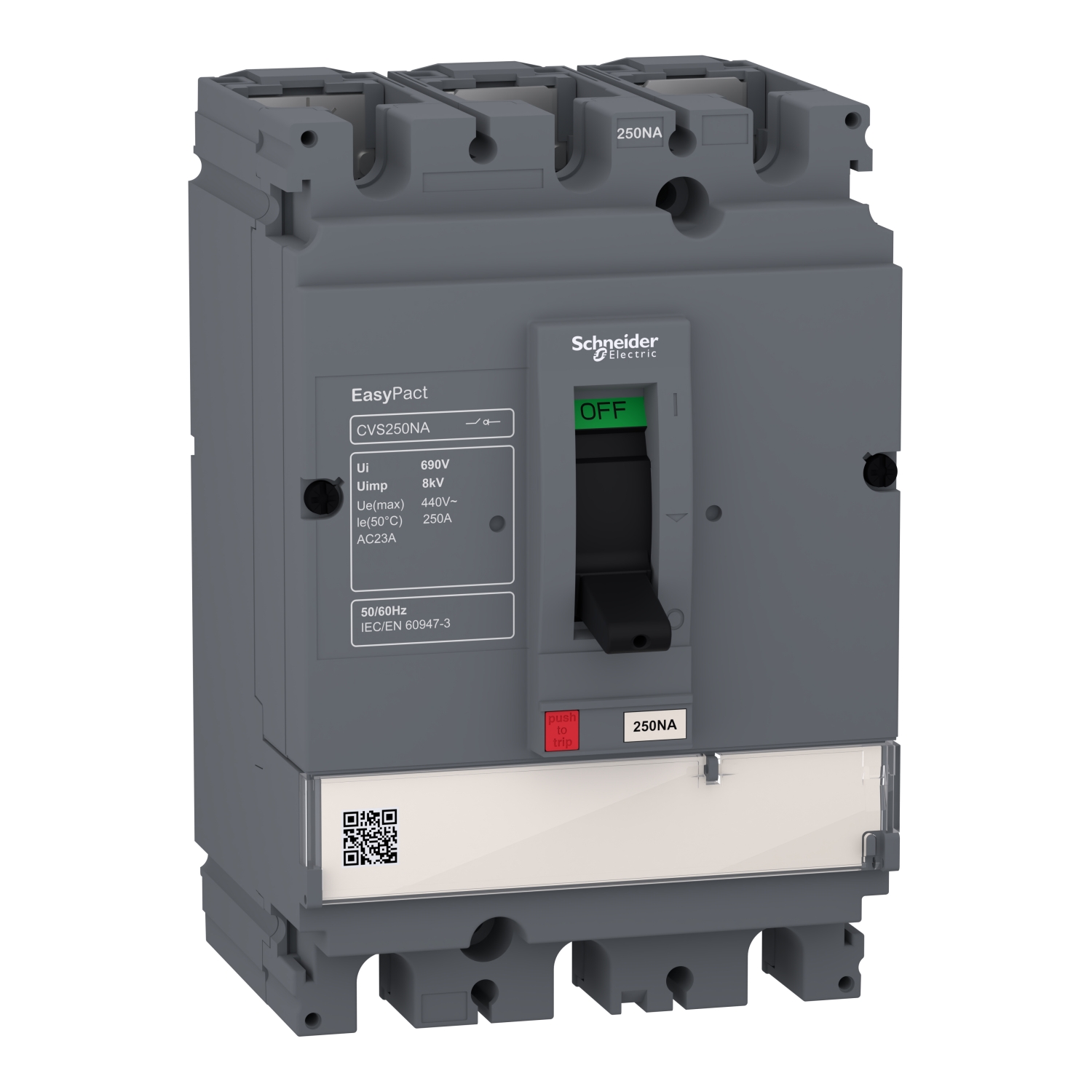

switch disconnector, EasyPact CVS250NA, 3 poles, 250A, AC22A, AC23A

$739.31 INC GST

Qty:

Available for Shipping : 12-Jan-2026

Product Selector

switch disconnector, EasyPact CVS250NA, 3 poles, 250A, AC22A, AC23A

Reliable to control and isolate electrical distribution

Certified for operation in heavily polluted environment

Respected for RoHs requirement as european environment directive EC/2002/95

Flexible and safe installation on plate or Din rail

High rotection degree also for extended rotary handle

Contact status can be indicated by add-on control auxiliaries

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Environmental Disclosure

Instruction sheet

CAD

Catalog

Circularity Profile

Declaration of conformity

Product Page Link

Product Data Sheet

This device is a 250A switch disconnector from EasyPact CVS250. This operational current(Ie) is both 250A, when is used for utilisation category AC22 or AC23. The rated short-time withstand current(Icw) is 3500A(1s). The version of device is 3poles frame without tripping protection. It is conformed to standard EN/IEC60947-3 for switch disconnector products. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle, additional IP54 protection degree for extended rotary handle. This series have slots for control auxiliaries(MN/MX),which is indicated contact status. The fixed dimension is 105mm(width).161mm(height),86mm(Depth),

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
[Ie] rated operational current	AC-23A: 250 A AC 50/60 Hz 440 V, AC-23A: 250 A AC 50/60 Hz 380/415 V, AC-23A: 250 A AC 50/60 Hz 220/240 V, AC-22A: 250 A AC 50/60 Hz 440 V, AC-22A: 250 A AC 50/60 Hz 380/415 V, AC-22A: 250 A AC 50/60 Hz 220/240 V
Suitability for isolation	yes conforming to IEC 60947-3, yes conforming to EN 60947-3
Earth-leakage protection	without
Utilisation category	AC-23A, AC-22A
Network type	AC
Device short name	CVS250NA
Range	EasyPact
[Ith] conventional free air thermal current	250 A at 50 °C
Range of product	EasyPact CVS100...250
Poles description	3P
[Icm] rated short-circuit making capacity	4.9 kA switch-disconnector alone, 75 kA with upstream protection circuit breaker
Product name	EasyPact CVS
Product or component type	switch disconnector
Breaking capacity code	NA
Complementary
Compatibility code	CVS250
Electrical durability	AC-23A: 6500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3, AC-22A: 6500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3
Downside connection	front
Height	161 mm
Mechanical durability	20000 cycles conforming to IEC 60947-3
Net weight	2.4 kg
[Icw] rated short-time withstand current	3.5 kA during 3 s conforming to IEC 60947-3, 3.5 kA during 1 s conforming to IEC 60947-3, 1.35 kA during 20 s conforming to IEC 60947-3
Mounting mode	fixed
Upside connection	front
Control type	toggle
Connection pitch	35 mm
Depth	86 mm
Width	105 mm
Visible break	no
Mounting support	backplate
Contact position indicator	yes
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-50-85 °C
Electrical shock protection class	class II
Product certifications	IEC, GOST
Pollution degree	3 conforming to IEC 60664-1
Ambient air temperature for operation	-25-70 °C
Standards	EN 60947-3, IEC 60947-3
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	14 cm
Package 1 Width	11.5 cm
Package 1 Length	19 cm
Package 1 Weight	1.9 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	15.2 kg
