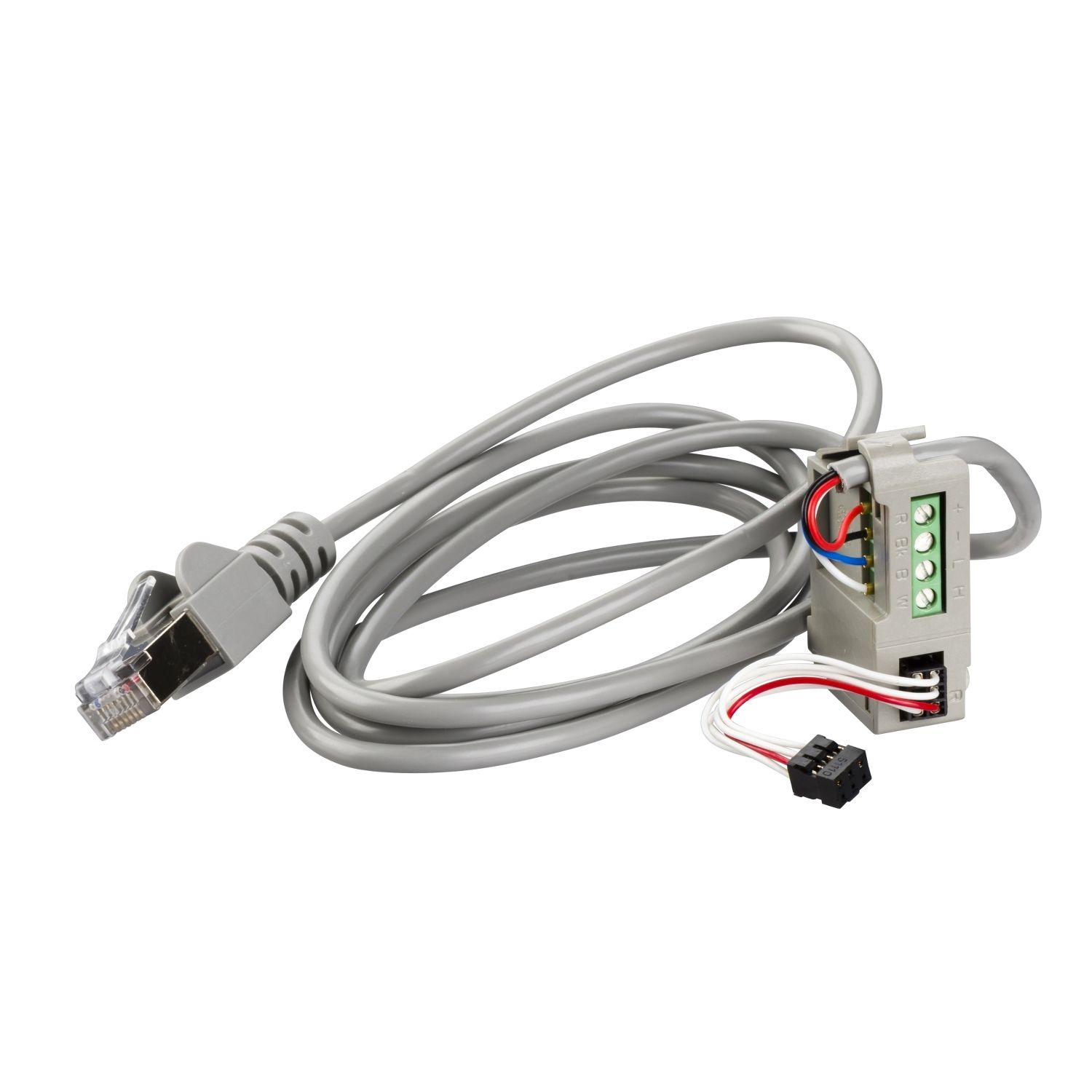

Picture of ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC
SKU:

LV434202

ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC

Old price: $350.90 INC GST
$287.74 INC GST
Available for Shipping : 08-Dec-2025
ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
User guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
NSX cord is an ULP wiring accessory that connects Compact NSX devices to ULP devices. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. NSX cord is compatible with PowerPact multistandard products. NSX cord is equipped with one RJ45 connector for the connection to ULP devices. NSX cord is connected on the Compact NSX BSCM module for both communication and 24VDC power supply. The length is 3 m.

Products specifications

Attribute name Attribute value
Main
Device short name cord L = 3 m
Range ComPacT
Range of product ComPact NSX400...630 DC, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX100...250
Product or component type terminal block connector
Range compatibility ComPact ComPact NSX, PowerPact PowerPact Multistandard, ComPact ComPact NSX DC
Complementary
Mounting mode by clips
Connector type 1 RJ45
Localisation on device internal
[Ue] rated operational voltage <= 480 V
Location of connection inside
Length 3 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 5.500 cm
Package 1 Length 11.500 cm
Package 1 Weight 107.800 g
Unit Type of Package 2 2
Number of Units in Package 2 46
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.259 kg
