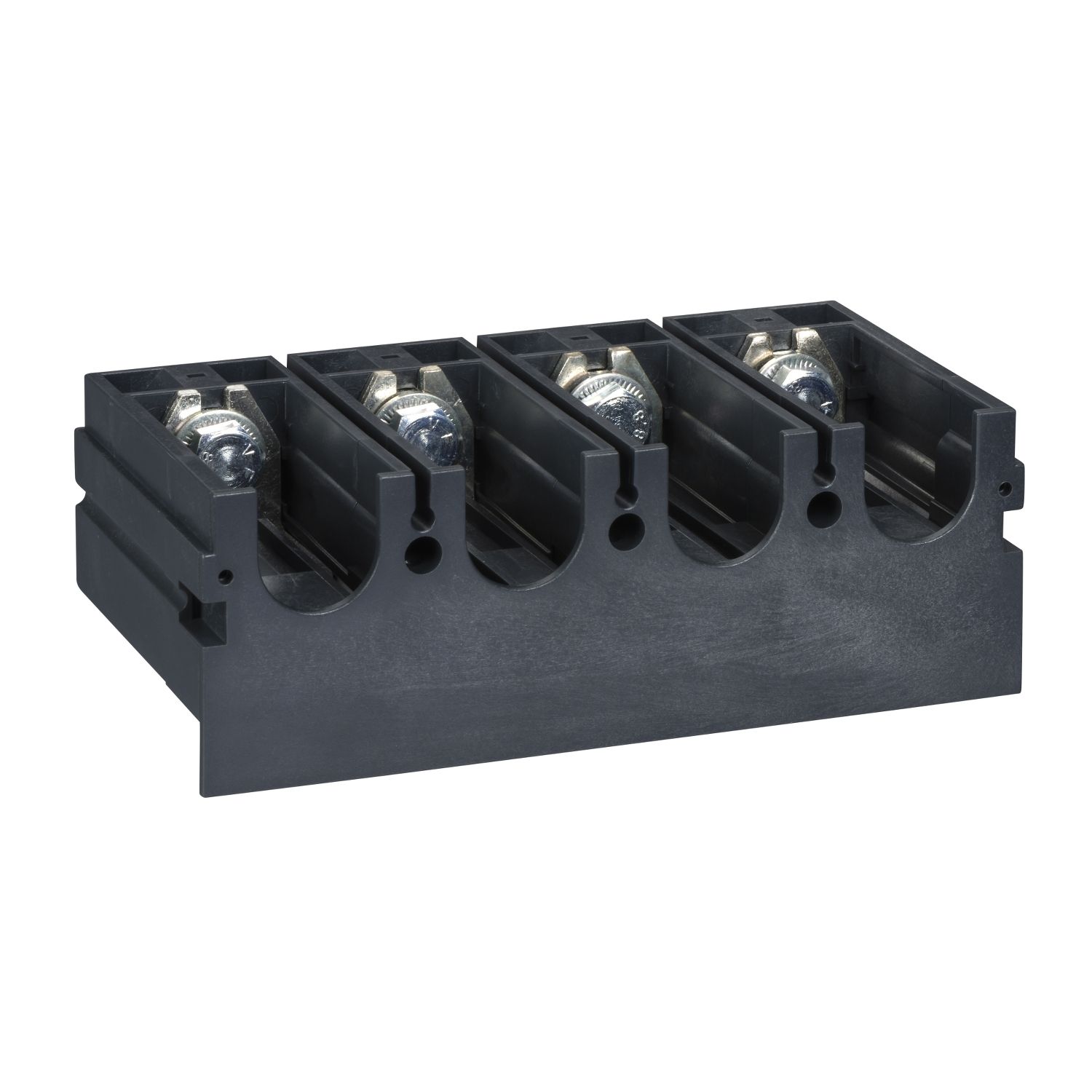

Picture of One piece spreader, ComPacT NSX 100/160/250, 35mm to 45mm pitch, flat connection, 4 poles
SKU:

LV431061

One piece spreader, ComPacT NSX 100/160/250, 35mm to 45mm pitch, flat connection, 4 poles

Old price: $418.55 INC GST
$342.37 INC GST
Available for Shipping : 12-Jan-2026
One piece spreader, ComPacT NSX 100/160/250, 35mm to 45mm pitch, flat connection, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This one piece spreader is used for 4 poles Compact NSX 100/160/250. It increases pitch distance from 35mm to 45mm and allows the connection of large cables. It is the means to align devices with different frame size in the switchboard.

Products specifications

Attribute name Attribute value
Main
Quantity per set 1
Poles description 4P
Range ComPacT
Product or component type spreader
Accessory / separate part category connection accessory
Range compatibility ComPact Compact INV100...250, ComPact INS250, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
Mounting mode top mounted
[In] rated current 250-250 A
Connection pitch 45 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 24.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 1.048 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 21.664 kg
