SKU:

LV429461

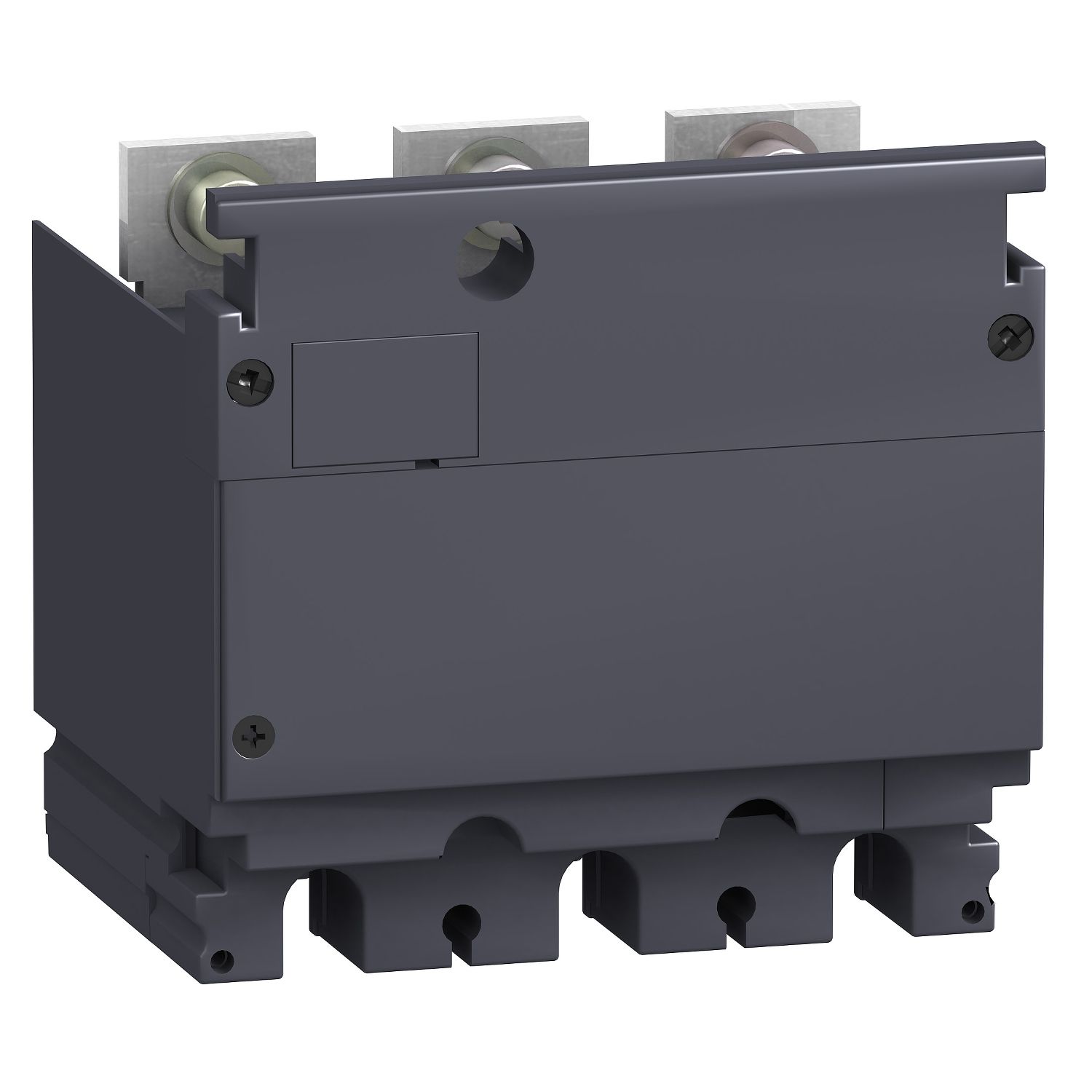

current transformer module with voltage output, ComPact NSX100/160/250, 125A rating, 3 poles

Old price: $1,194.60 INC GST

Price: $977.18 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

current transformer module with voltage output, ComPact NSX100/160/250, 125A rating, 3 poles

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Instruction sheet

Environmental Disclosure

User guide

Circularity Profile

Product Page Link

Product Data Sheet

This is an additional current transformer module of 125A rating with voltage measurement output for 3 poles ComPact NSX 100/160/250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 125A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Products specifications

Attribute name	Attribute value
Main
Device short name	CT module and voltage output
Device application	control
Current transformer ratio	125/5 A
Range	ComPacT
Range of product	ComPact NSX100...250
Poles description	3P
Accuracy class	class 1
Power consumption in VA	1.1 VA
Product or component type	current transformer
Range compatibility	ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
[In] rated current	125 A
Complementary
Auxiliary connection terminal	cable connector 2.5-2.5 mm²
[Ue] rated operational voltage	530 V
Network type	AC
Network frequency	50...60 Hz
Environment
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK04 conforming to IEC 62262
Electrical shock protection class	class II
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.5 cm
Package 1 Width	14.3 cm
Package 1 Length	17.3 cm
Package 1 Weight	968.0 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.346 kg
