SKU:

LV429437

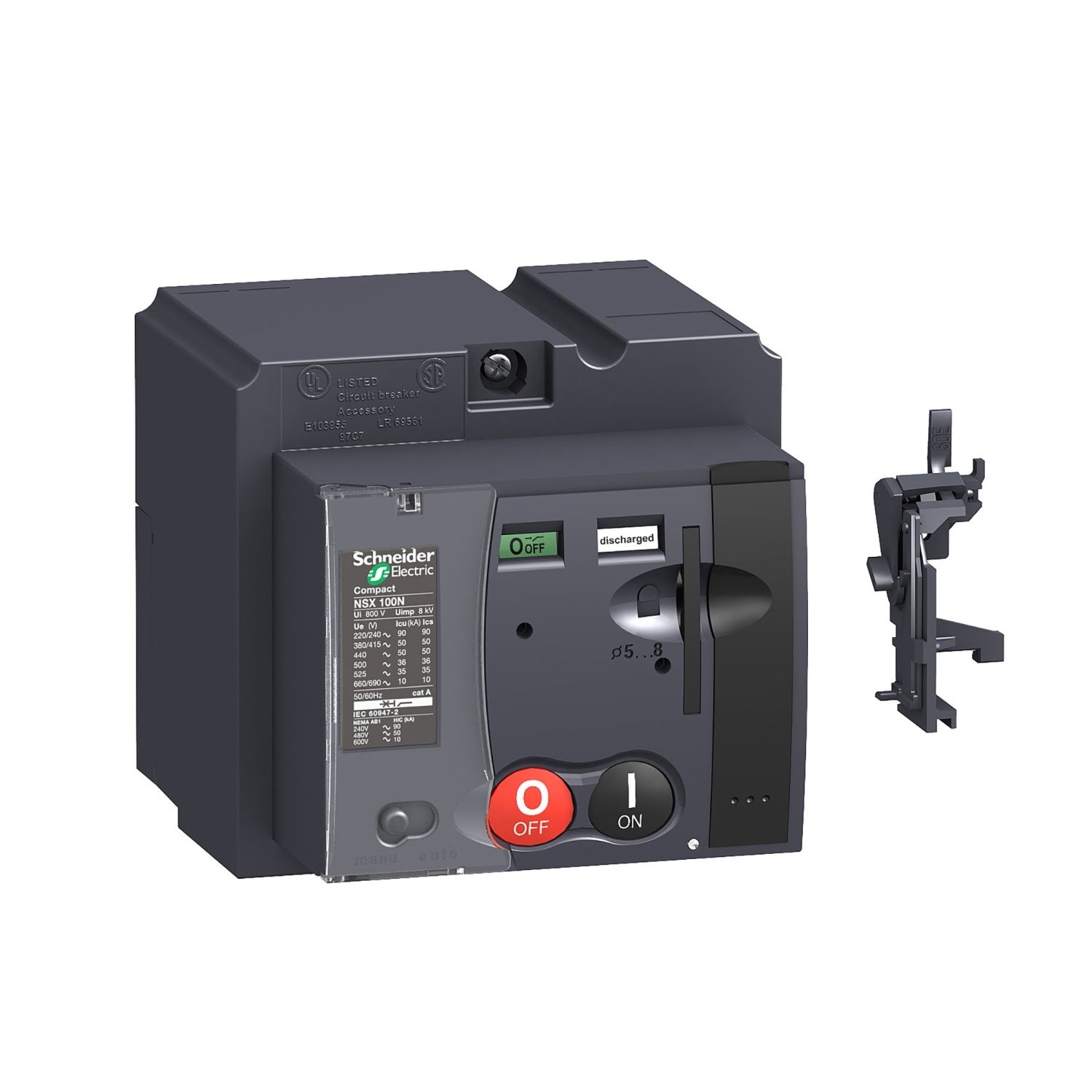

Standard motor mechanism module MT100/160, ComPacT NSX100/160, 48/60VDC

Old price: $1,225.40 INC GST

Price: $1,002.38 INC GST

Qty:

Available for Shipping : 14-Jan-2026

Standard motor mechanism module MT100/160, ComPacT NSX100/160, 48/60VDC

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 14-Jan-2026

Catalog

Environmental Disclosure

User guide

Circularity Profile

Instruction sheet

Product Page Link

Product Data Sheet

This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 48VDC to 60VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.

Products specifications

Attribute name	Attribute value
Main
Device short name	MT250
Device application	automatic spring charging
Mounting mode	fixed
Control type	standard
Range	ComPacT
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
[In] rated current	100 A, 160 A
Product or component type	motor mechanism
Range compatibility	ComPact ComPacT NSX DC new generation NSX160 DC, ComPact ComPacT NSX DC new generation NSX100 DC, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
[Uc] control circuit voltage	48...60 V DC
Complementary
Provided equipment	SDE adaptor
Control signal type	maintained, impulse
Locking options description	padlocking in OFF position, 1 to 3 padlocks Ø 5 to Ø 8
Maximum power consumption in W	500 W - opening, 500 W - closing
Maximum operating frequency	4 per minute
Response time	< 80 ms closed, < 700 ms open
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.0 cm
Package 1 Width	10.5 cm
Package 1 Length	17.5 cm
Package 1 Weight	1.414 kg
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	30.0 cm
Package 2 Width	40.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	22.013 kg
