SKU:

LV429405

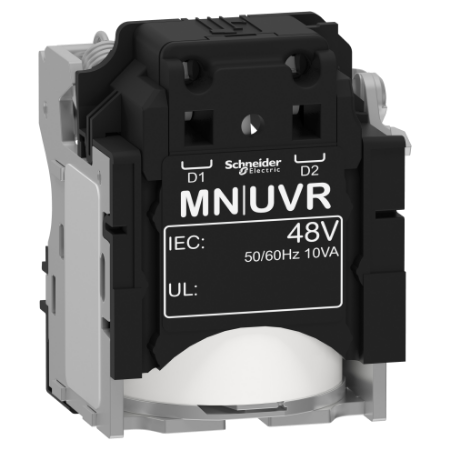

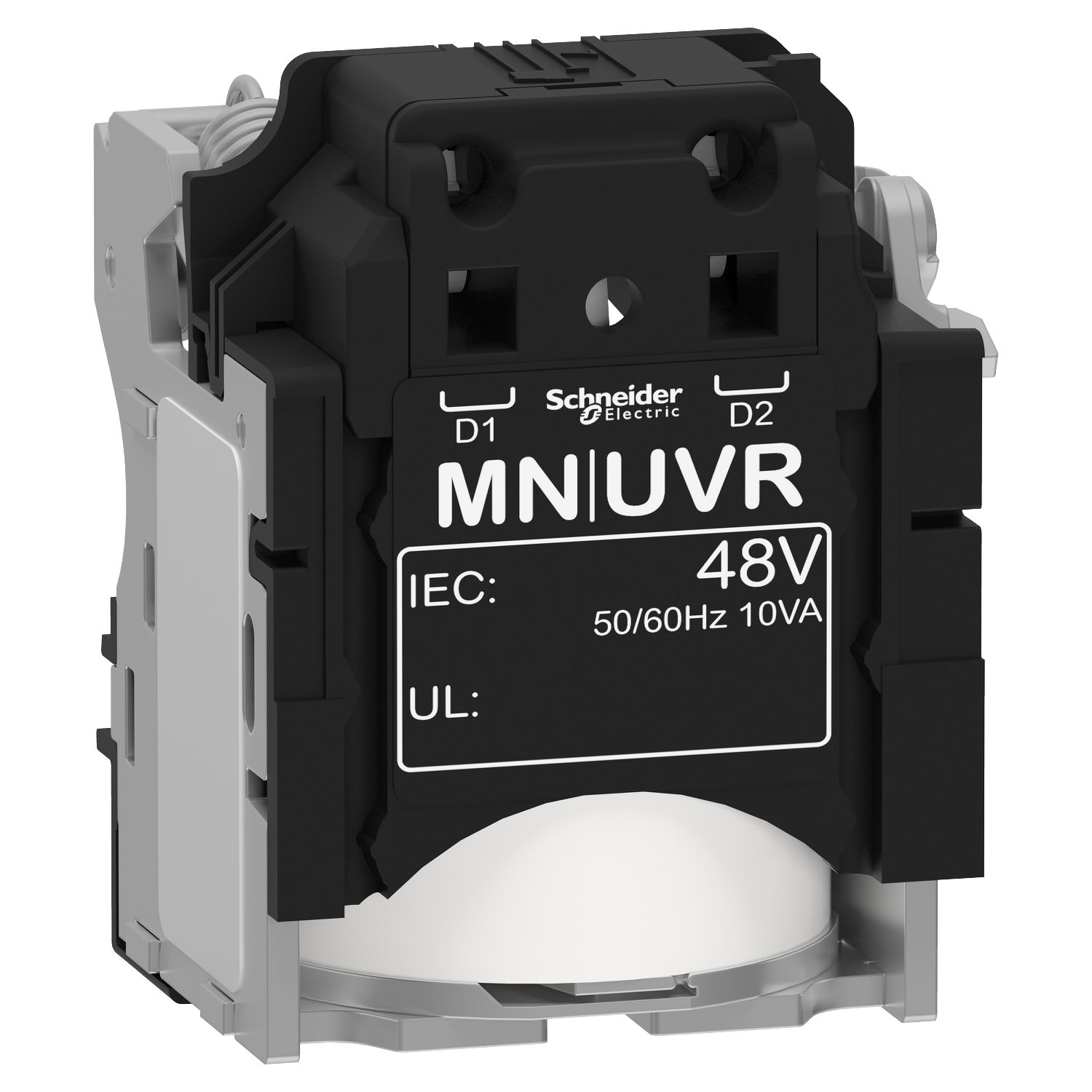

Undervoltage release MN, ComPacT NSX, rated voltage 48VAC 50/60Hz, screwless spring terminal connections

Old price: $402.60 INC GST

Price: $329.33 INC GST

Qty:

Available for Shipping : 12-Jan-2026

Undervoltage release MN, ComPacT NSX, rated voltage 48VAC 50/60Hz, screwless spring terminal connections

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Instruction sheet

Product environmental

Declaration of conformity

User guide

Catalogue

Product Page Link

Product Data Sheet

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 48 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Products specifications

Attribute name	Attribute value
Main
Device short name	MN
Device application	control
Range	ComPacT
Range of product	ComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250
Voltage release type	undervoltage release, opening coil
Product or component type	voltage release
Range compatibility	PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
[Uc] control circuit voltage	48 V AC 50/60 Hz
Complementary
Wire stripping length	7 mm
Supply inrush power	10 VA
Auxiliary connection terminal	spring 0.5-1.5 mm² (AWG 20...AWG 16)
Supply holding power	5 VA
Threshold tripping voltage	0.85 x Un closing, 0.35...0.7 x Un opening
Response time	50 ms
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.4 cm
Package 1 Width	4 cm
Package 1 Length	8.5 cm
Package 1 Weight	122 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	9.2 cm
Package 2 Width	14.7 cm
Package 2 Length	22.5 cm
Package 2 Weight	1.299 kg
Unit Type of Package 3	3
Number of Units in Package 3	60
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	8.281 kg
