Shunt trip release MX, ComPacT NSX, 48VAC 50/60Hz, screwless spring terminal connections

Old price: $332.20 INC GST

Price: $271.74 INC GST

Qty:

Available for Shipping : 08-Dec-2025

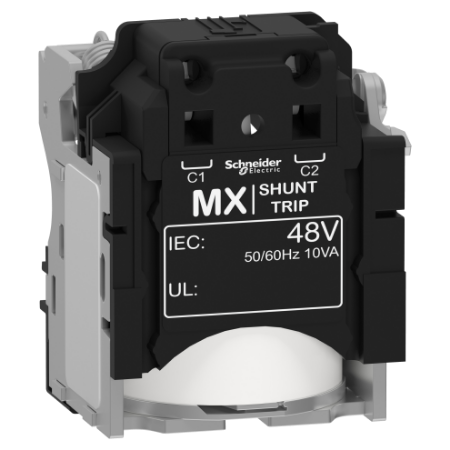

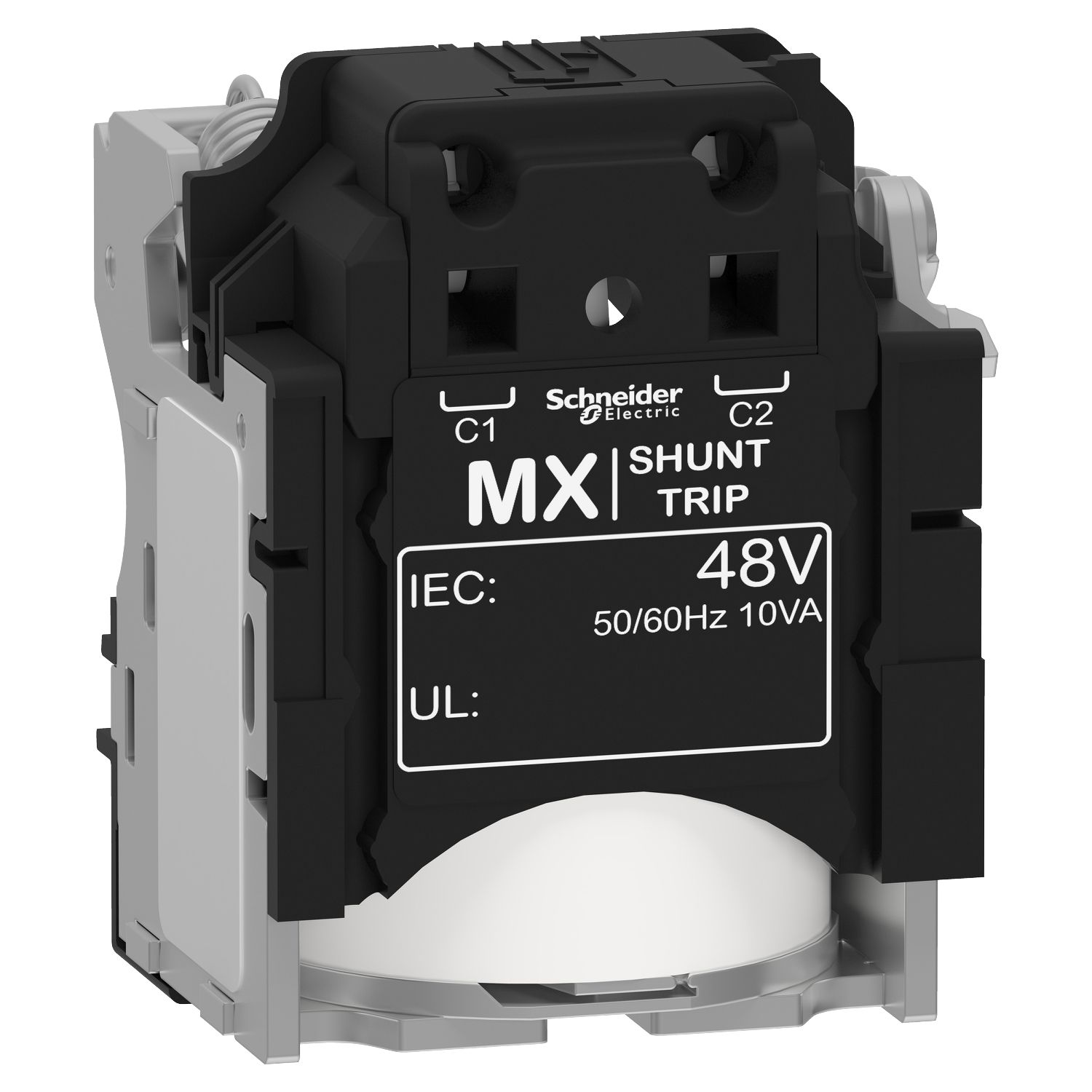

Shunt trip release MX, ComPacT NSX, 48VAC 50/60Hz, screwless spring terminal connections

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Instruction sheet

Declaration of conformity

User guide

Catalogue

Product environmental

Product Page Link

Product Data Sheet

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 48 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Products specifications

Attribute name	Attribute value
Main
Device short name	MX
Device application	control
Range	ComPacT
Range of product	ComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250
Voltage release type	shunt trip release, opening coil
Product or component type	voltage release
Range compatibility	PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
[Uc] control circuit voltage	48 V AC 50/60 Hz
Complementary
Control signal type	maintained, impulse
Impulse duration	>= 20 ms
Wire stripping length	7 mm
Supply inrush power	10 VA
Auxiliary connection terminal	spring 0.5-1.5 mm² (AWG 20...AWG 16)
Threshold tripping voltage	0.7...1.1 x Un opening
Response time	50 ms
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.400 cm
Package 1 Width	4.600 cm
Package 1 Length	6.200 cm
Package 1 Weight	114.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	7.100 cm
Package 2 Width	10.600 cm
Package 2 Length	23.700 cm
Package 2 Weight	1.184 kg
Unit Type of Package 3	3
Number of Units in Package 3	60
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	7.477 kg
