SKU:

LV429345

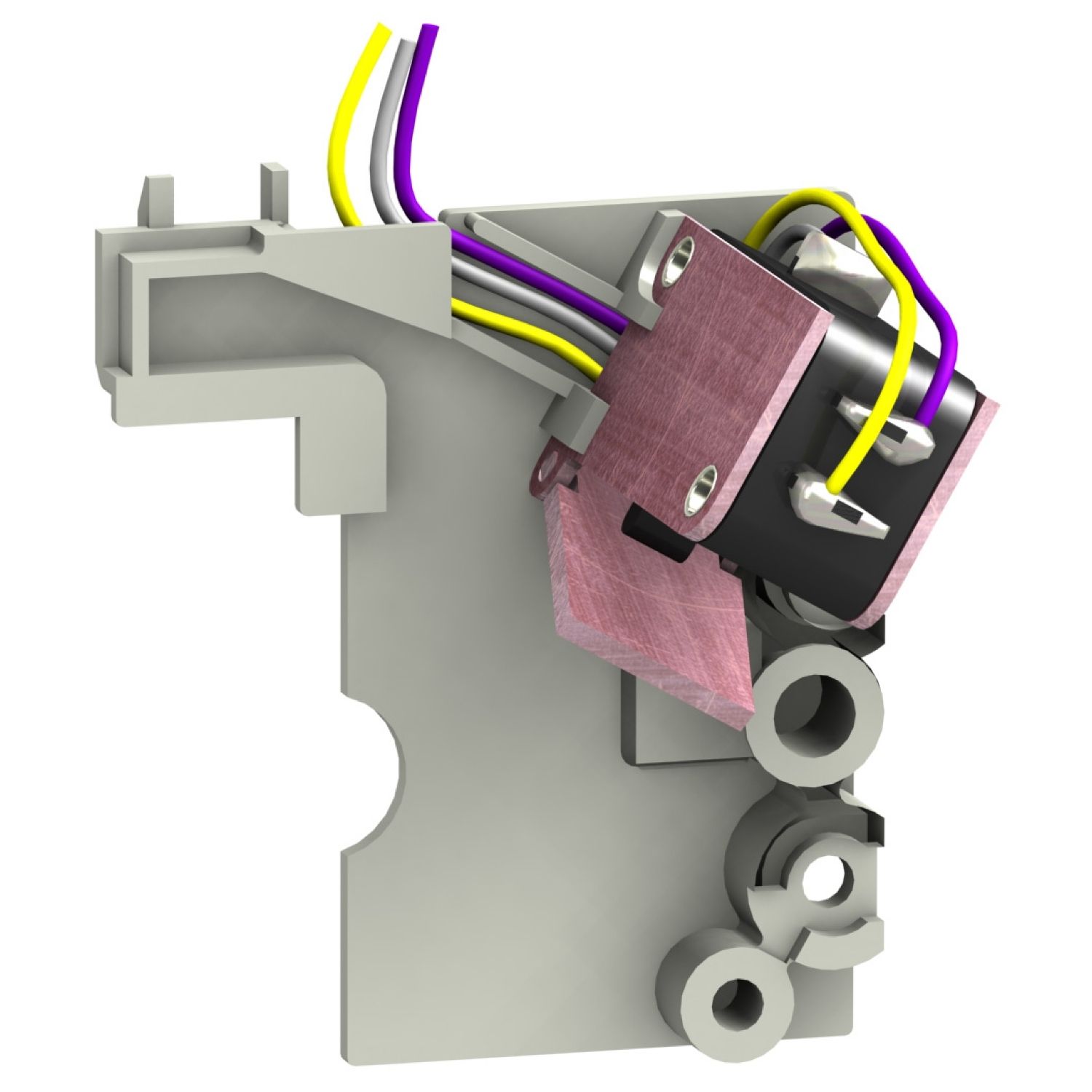

standard early break contact, ComPact NSX100 to NSX250, rotary handle position CAO, 1 changeover contact type

Old price: $137.28 INC GST

Price: $112.30 INC GST

Qty:

Available for Shipping : 12-Jan-2026

standard early break contact, ComPact NSX100 to NSX250, rotary handle position CAO, 1 changeover contact type

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Catalog

User guide

Instruction sheet

Product Page Link

Product Data Sheet

It is a single early break contact that indicates the position of the rotary handle for Compact NSX 100/160/250 and PowerPact Multistandard H/J circuit breakers. An early break contact (CAM), in conjunction with a rotary handle, can be used to anticipate device opening. The contact fits into the rotary handle unit. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.

Products specifications

Attribute name	Attribute value
Main
Device short name	early-break contact
Device application	control
Range	ComPacT
Product or component type	auxiliary contact
Range compatibility	PowerPact PowerPact J, PowerPact PowerPact H, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250
Complementary
Minimum load	100 mA at 24 V DC
[Ie] rated operational current	DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz
Auxiliary contacts type	standard
Mounting mode	drawout
[Ith] conventional free air thermal current	6 A
Auxiliary contacts operation	early-break
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.0 cm
Package 1 Width	6.2 cm
Package 1 Length	8.0 cm
Package 1 Weight	49.0 g
Unit Type of Package 2	2
Number of Units in Package 2	45
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	2.512 kg
