SKU:

LV429287

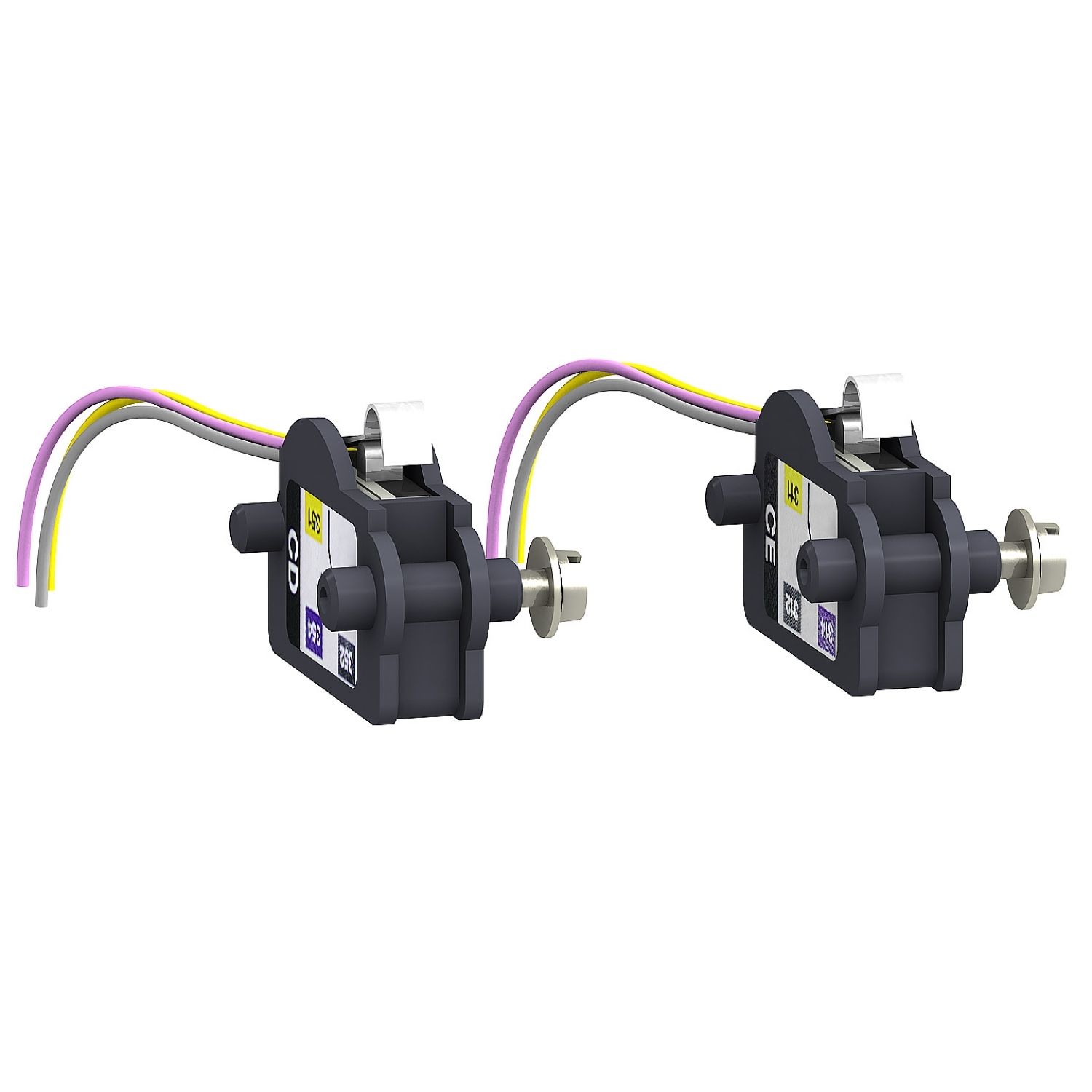

carriage switches, drawout ComPact NSX, chassis connected (CE)/disconnected (CD) position, 2 changeover contact types

Old price: $176.44 INC GST

Price: $144.33 INC GST

Qty:

Available for Shipping : 12-Jan-2026

carriage switches, drawout ComPact NSX, chassis connected (CE)/disconnected (CD) position, 2 changeover contact types

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Catalog

User guide

Instruction sheet

Product Page Link

Product Data Sheet

These are 2 carriage switches that provides CE and CD chassis position remote information for Compact NSX 100 to 630 and PowerPact Multistandard H/J/L circuit breakers. The CE contact indicates that the chassis is connected to the circuit breaker. The CD contact indicates that the chassis is disconnected from the circuit breaker. The contacts clip into the fixed part of the chassis. These auxiliaries are a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowePact Multistantard chassis can be equipped with 1 CE and 1 CD carriage switches. It complies with IEC 60947-5-1 standard.

Products specifications

Attribute name	Attribute value
Main
Device short name	CD, CE
Device application	monitoring
Signal contacts composition	2 NO/NC
Range	ComPacT
Product or component type	carriage switch
Range compatibility	ComPact ComPact NSX630, ComPact ComPact NSX400, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Range of product	ComPact NSX400...630, ComPact NSX100...250
Complementary
Minimum load	100 mA at 24 V DC
Quantity per set	2
[Ie] rated operational current	DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz
Auxiliary contacts type	standard
Mounting mode	drawout
[Ith] conventional free air thermal current	6 A
Auxiliary contacts operation	CE/CD
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.900 cm
Package 1 Width	6.100 cm
Package 1 Length	8.000 cm
Package 1 Weight	53.000 g
Unit Type of Package 2	2
Number of Units in Package 2	45
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.830 kg
