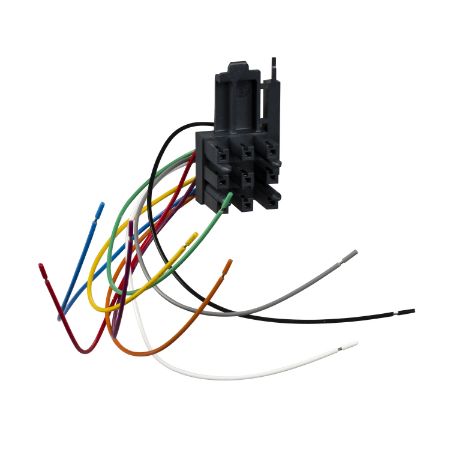

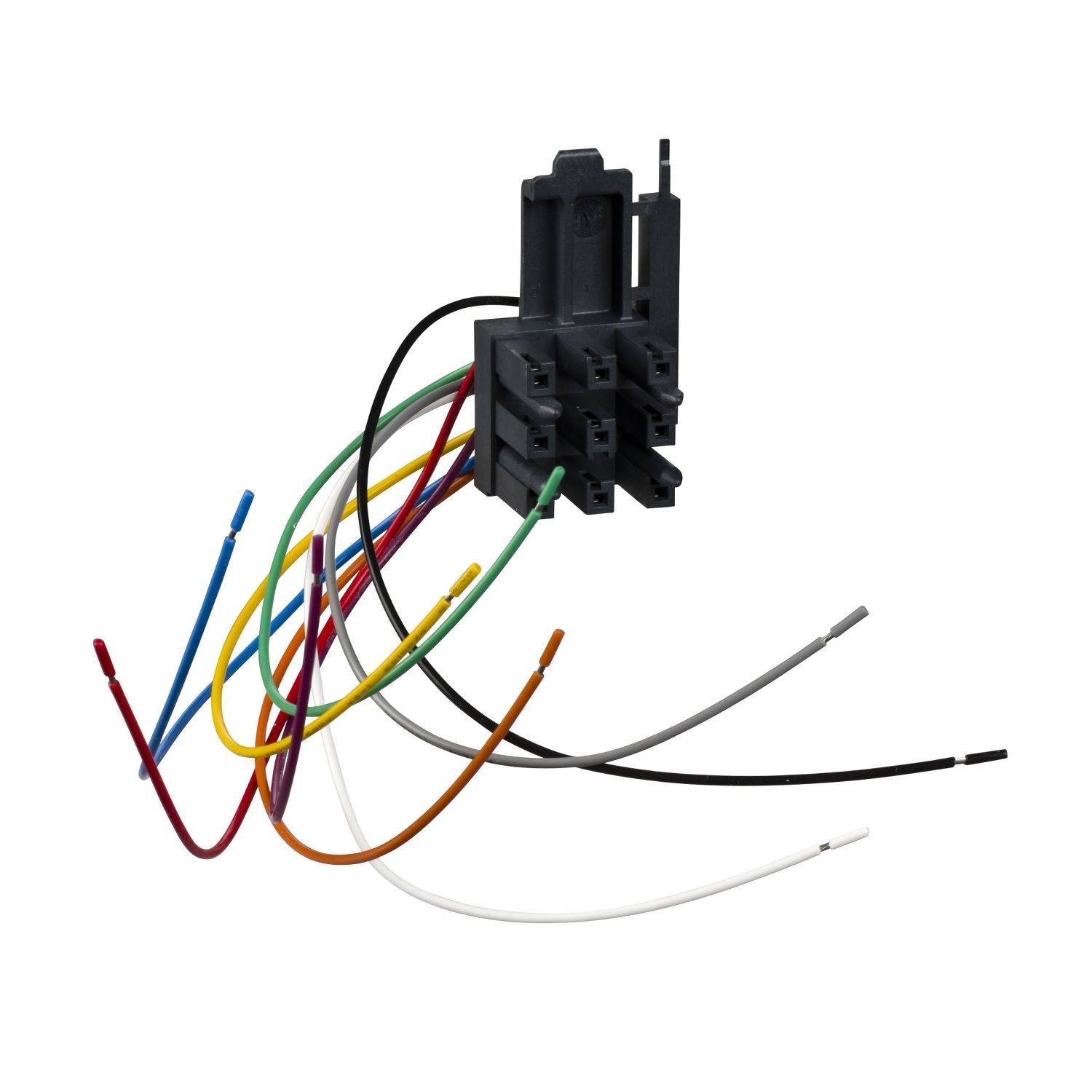

Picture of Automatic auxiliary connector, ComPacT NSX100/160/250, moving part, for circuit breaker, 1 to 9 wires
SKU:

LV429274

Automatic auxiliary connector, ComPacT NSX100/160/250, moving part, for circuit breaker, 1 to 9 wires

Old price: $70.84 INC GST
$57.95 INC GST
Available for Shipping : 08-Dec-2025
Automatic auxiliary connector, ComPacT NSX100/160/250, moving part, for circuit breaker, 1 to 9 wires
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This is the moving part of an automatic connector for Compact NSX 100/160/250 auxiliaries connection. It is adapted for plug-in base or withdrawable circuit breakers. It is the moving part connected to the circuit breaker via a dedicated support. Compact NSX 100/160/250 can be equipped with 2 automatic connectors with 9 wires each.

Products specifications

Attribute name Attribute value
Main
Device short name 9-wire moving connector
Device application wiring
Range ComPacT
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Product or component type connector kit
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX DC new generation NSX160 DC, ComPacT new generation ComPacT NSX DC new generation NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Complementary
Total number of wires 9
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 6.000 cm
Package 1 Length 7.600 cm
Package 1 Weight 55.900 g
Unit Type of Package 2 2
Number of Units in Package 2 124
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.344 kg

Related products

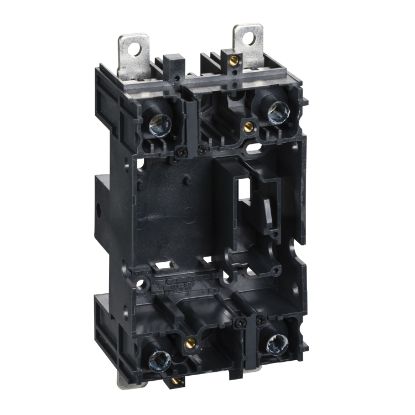

Picture of Plug in base, ComPacT NSX 100/160/250, front/rear connected, 2 poles

Plug in base, ComPacT NSX 100/160/250, front/rear connected, 2 poles

LV429265
$211.90 INC GST $259.05 INC GST
View Detail

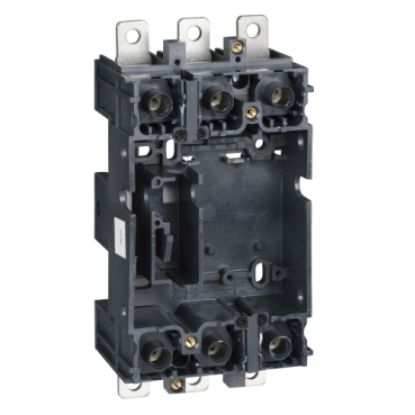

Picture of plug in base, ComPact NSX100/160/250, front/rear connected, 3 poles

plug in base, ComPact NSX100/160/250, front/rear connected, 3 poles

LV429266
$254.19 INC GST $310.75 INC GST
View Detail

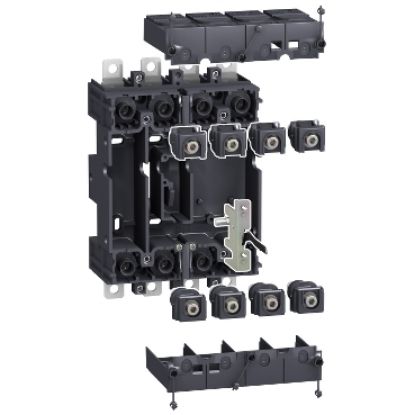

Picture of plug in base, ComPact NSX100/160/250, front/rear connected, 4 poles
